PBR T 450 C 1992
- Condition: used
- published: 08/04/2026
- 26IND48461
Technical data
- Condition: used
- Year: 1992
- Distance between tips : 1501/3000 mm
- Tip height : 251/500 mm
Description

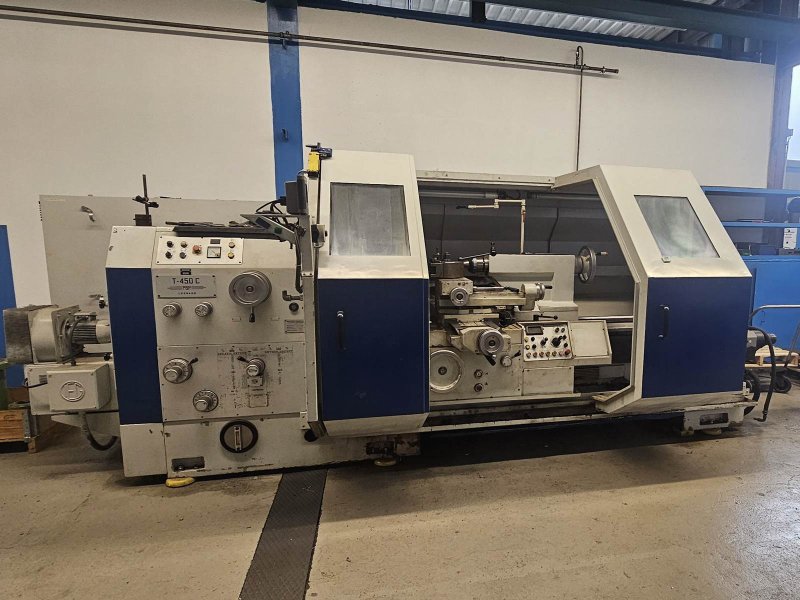

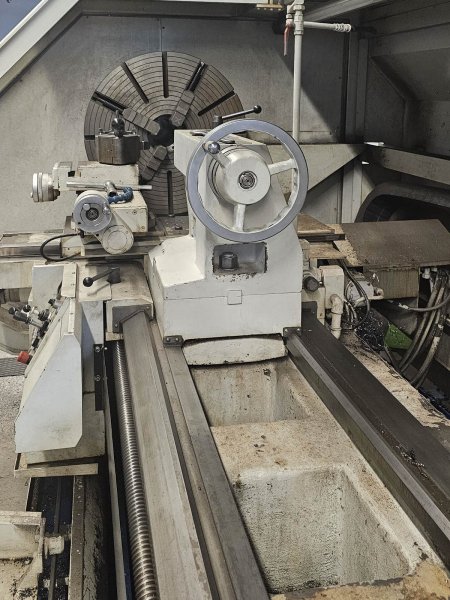

PBR T 450 C x 2000 PARALLEL LATHE
Height of centers 450 mm
Distance between centers 2,000 mm
Max. Ø on the bed 920 mm
Max. Ø on the carriage 620 mm
Max. Ø in the throat 1,200 mm
Throat length 460 m ...
PBR T 450 C x 2000 PARALLEL LATHE
Height of centers 450 mm
Distance between centers 2,000 mm
Max. Ø on the bed 920 mm
Max. Ø on the carriage 620 mm
Max. Ø in the throat 1,200 mm
Throat length 460 mm
Bed width 570 mm
Spindle bore 130 mm
Spindle speed 5 ÷ 1,000 rpm
Spindle motor power 25 hp
Load capacity between centers 3,500 kg
Tailstock quill diameter 115 mm
Tailstock quill travel 380 mm
Total weight 6,400 kg.

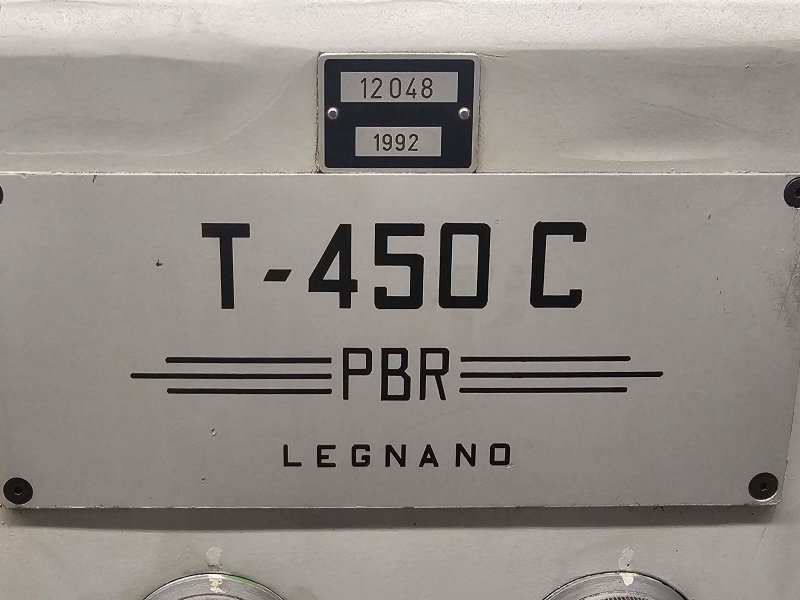

Year of manufacture 1992
Complete with:

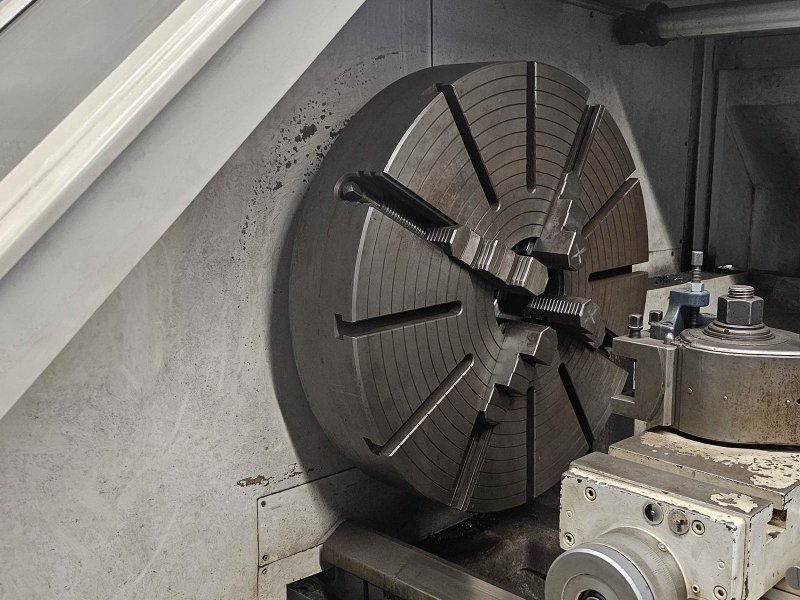

- 1 platform with 4 independent jaws, Ø 800 mm.

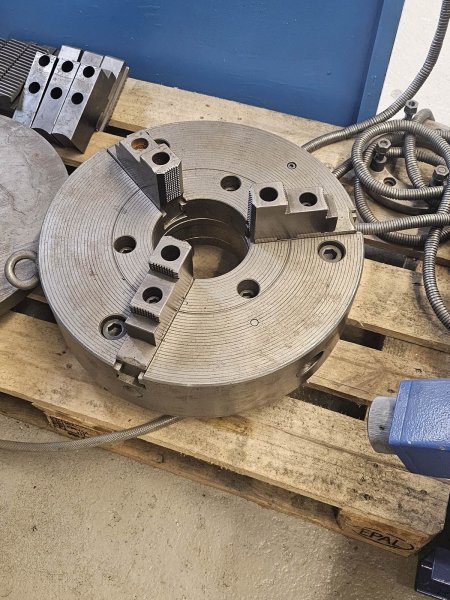

- 1 self-centering chuck, Ø 500 mm.
- display
- 1 closed steady rest
- 1 mobile steady rest
- safety guards
