M. CARNAGHI TGP 20-25 CNC 2005
- Condition: used
- published: 05/03/2026
- 26IND48477
Technical data
- Condition: used
- Year: 2005
- Max working diameter : 2001/3000 mm
- Max working height : > 2000 mm
Description

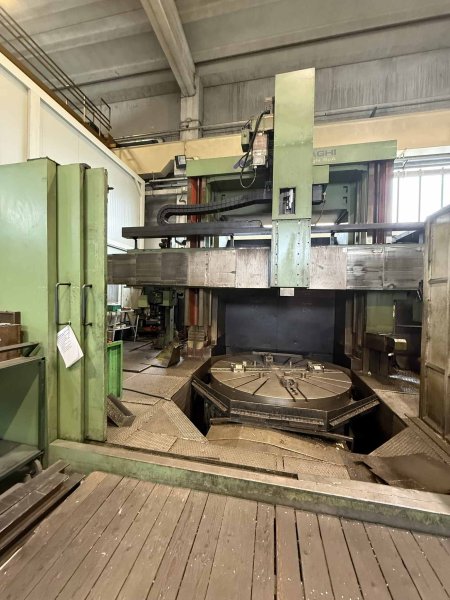

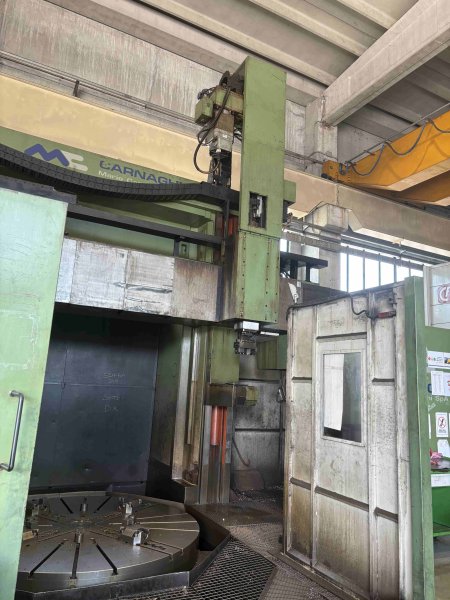

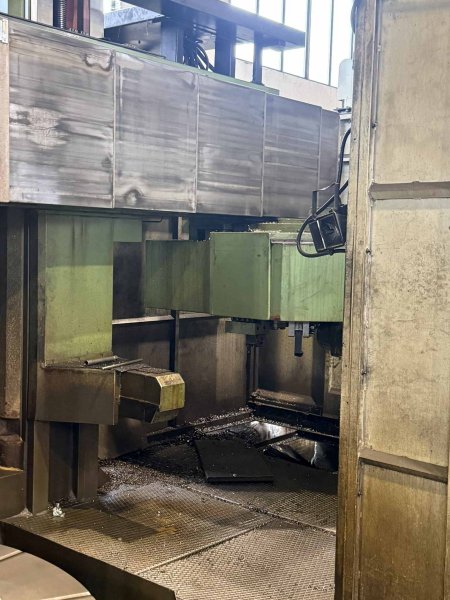

M. CARNAGHI TGP 20-25 CNC VERTICAL LATHE

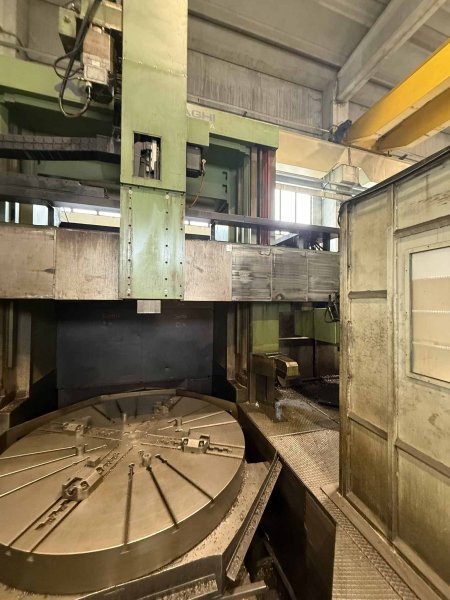

Table diameter: 2,500 mm
Maximum working diameter: 3,000 mm
Maximum turning height: 2,700 mm
Maximum clearance under crossbeam: 3,000 mm
Table capacity: 35 ton ...
M. CARNAGHI TGP 20-25 CNC VERTICAL LATHE
Table diameter: 2,500 mm
Maximum working diameter: 3,000 mm
Maximum turning height: 2,700 mm
Maximum clearance under crossbeam: 3,000 mm
Table capacity: 35 tons
Table motor power: 60 kW
Table speed: 0.4 ÷ 170 rpm
Table travel (Y): + 750 / - 750 mm
C-axis

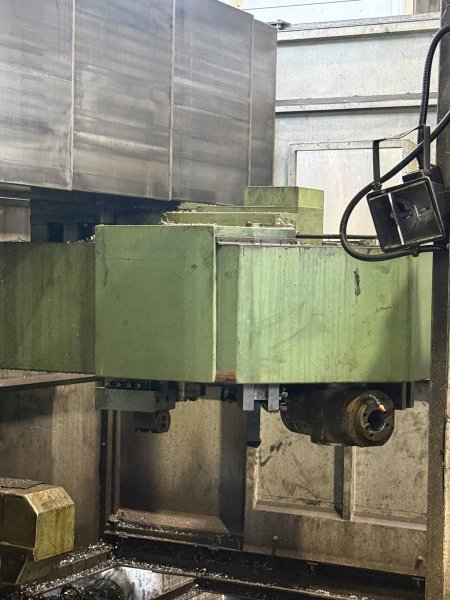

1 vertical ram slide for turning and milling operations:
- ram cross-section: 250 x 250 mm
- vertical ram travel (Z): 1,500 mm
- milling motor power: 22 kW
- ISO 50 spindle taper
Feed rates 0 to 10,000 mm/min

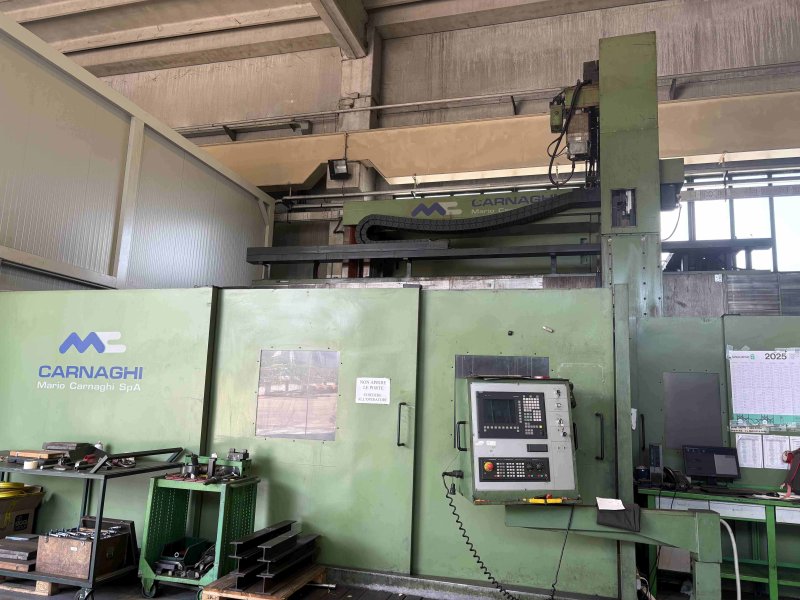

Siemens 840 D CNC
Year of manufacture: 2005
Complete with:

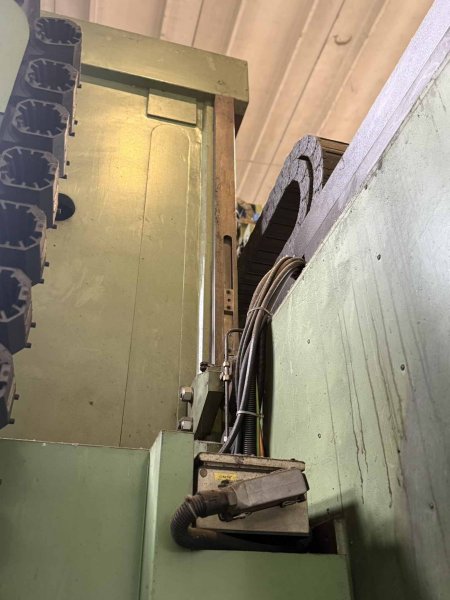

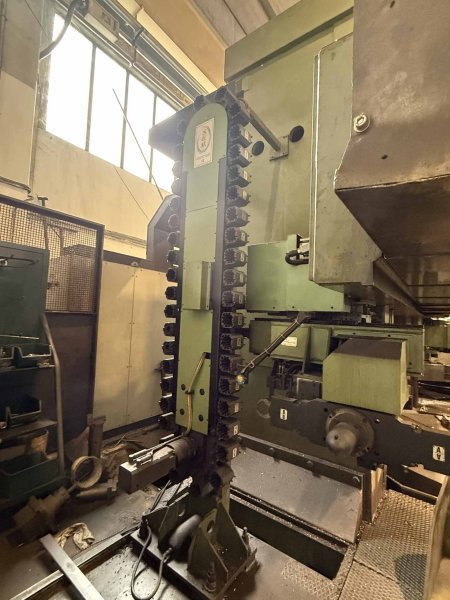

- 40-slot milling tool magazine
- 12-slot turning tool magazine
- Angular milling head
- Vertical milling head

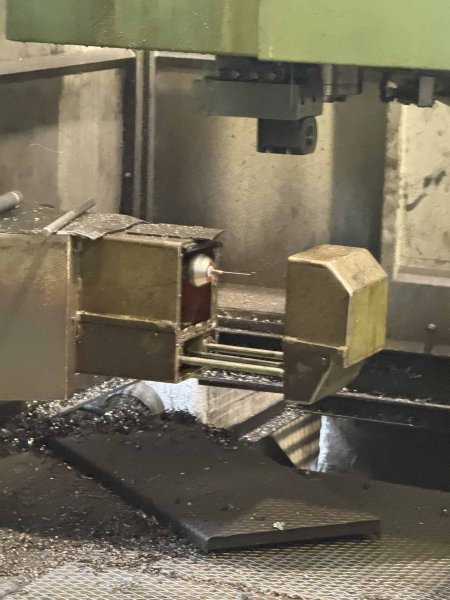

- Renishaw
- Turning and milling tool holders
- Chip conveyor
