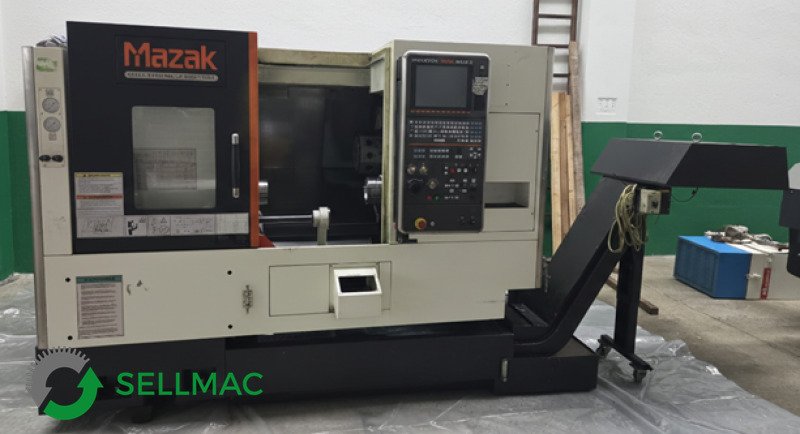

MAZAK QUICKTURN NEXUS 200 I MSY 2015
- Condition: used
- published: 27/01/2026
- 26IND48481
Technical data
- Condition: used
- Year: 2015
Description
Working Capacity
Maximum swing diameter: 695 mm
Maximum diameter above the bed: 350 mm
Maximum workable diameter: 380 mm
Maximum bar turning diameter: 65 mm
Distance between spindles (jaw-to-jaw): 580 ...
Working Capacity
Maximum swing diameter: 695 mm
Maximum diameter above the bed: 350 mm
Maximum workable diameter: 380 mm
Maximum bar turning diameter: 65 mm
Distance between spindles (jaw-to-jaw): 580 mm
Axis Specifications
X-Axis Travel: 230 mm
Y-Axis Travel: 100 mm (+/- 50 mm)
Z-Axis Travel: 575 mm
Rapid Feed Rates: X: 30 m/min | Y: 21 m/min | Z: 33 m/min | W: 30 m/min
Main Spindle (Left)
Chuck Size: 8"
Maximum Speed: 5,000 rpm
Spindle Nose: ASA 6
Spindle Bore: 76 mm
C-Axis Positioning: 0.0001 degrees
Motor Power (30 min / continuous): 26 kW / 22 kW
Second Spindle (Right)
Chuck Size: 6"
Maximum Speed: 6,000 rpm
Spindle Nose: ASA 5
Spindle Positioning: 0.001 degrees
Motor Power (10 min): 11 kW
Turret and Tooling
Number of Turret Positions: 12
Clamping Method: Mazak VDI
Positioning Time (1 Step / Full Revolution): 0.2 s / 0.6 s
Tool size (shank / boring bar): 25x25 mm / Ø 40 mm
Driven Tools: 12 positions
Driven speed: 4,500 rpm
Driven power (10 min): 5.5 kW
Equipment and Accessories Included
Continuous C-axis (3,600,000 positions), including on the second spindle.
Motor overload detector for both milling and turning operations
Automatic presetting (Tool Eye).
Automatic workpiece catcher.
Side belt chip conveyor (Mayfran).
Enhanced coolant at 15 bar.
Electric bar pusher interface.
Double pedal for opening/closing self-centering clamps.
LNS Quick Load Servo 80 S2 bar loader.
Losma Fume Extractor
2+2 Motorized Tool Holders
Dimensions and Weight
Length: 2,800 mm
Width: 2,058 mm
Height: 1,857 mm
Weight: 5,500 kg
Required Air Supply: 5 kg/cm² (150 litres/min)
Working
CE compliant
