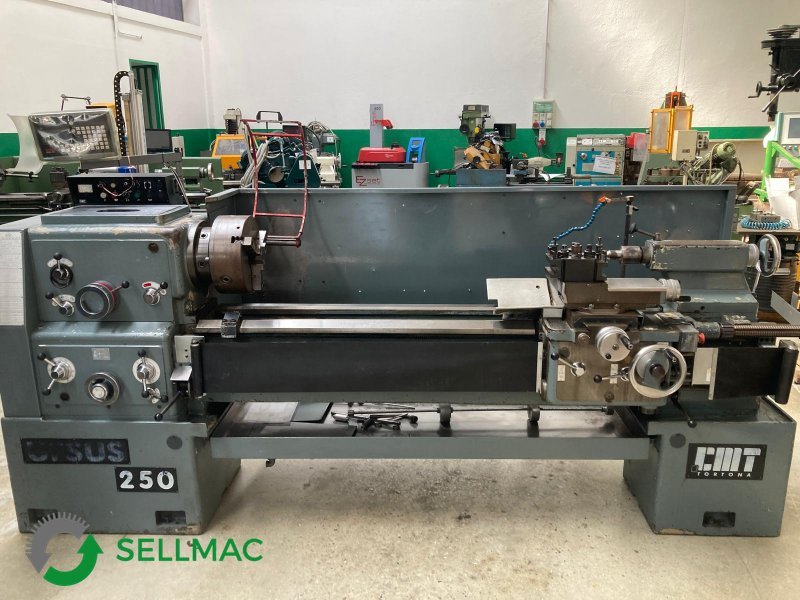

CMT URSUS 250 x 1500 1989
- Condition: used
- published: 27/01/2026
- 26IND48485
Technical data
- Condition: used
- Year: 1989
Description
Specification Value / Measurement
Height of centers above bed 225 - 250 mm
Distance between centers 1500 mm
Maximum turning diameter in the pocket 660 - 710 mm
Maximum turning diameter over bed 455 - ...
Specification Value / Measurement
Height of centers above bed 225 - 250 mm
Distance between centers 1500 mm
Maximum turning diameter in the pocket 660 - 710 mm
Maximum turning diameter over bed 455 - 505 mm
Maximum turning diameter over slide 270 - 290 mm
Diameter of fixed steady rest 200 mm
Diameter of moving steady rest 130 mm
Bed width 330 mm
Diameter of pocket 250 mm
Width of pocket at platform 160 mm
Maximum diameter Spindle bore 140 mm
Spindle bore 105 mm
Spindle reduction bushing / Morse taper No. 5

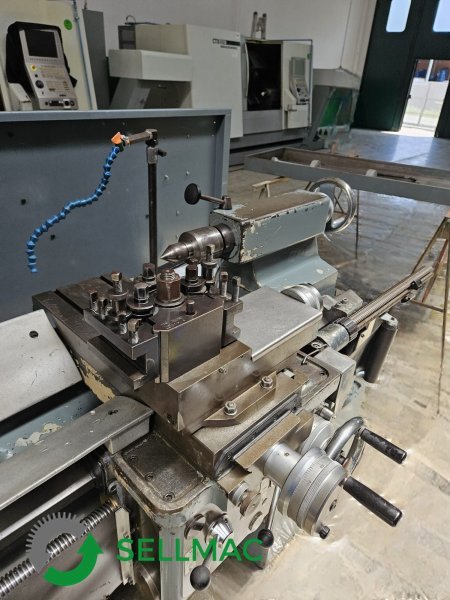

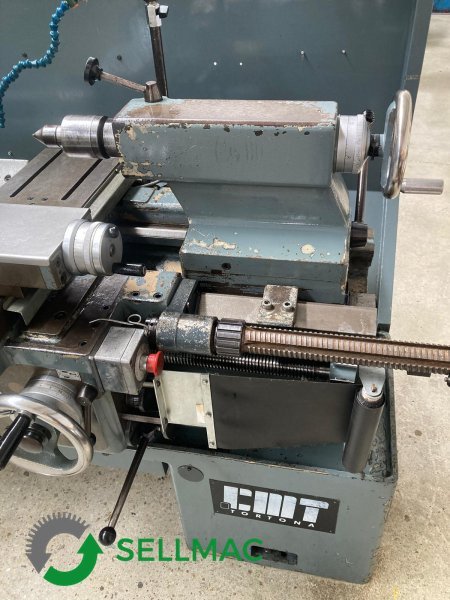

Tailstock Morse taper No. 5
Speeds and Feeds
• Spindle speeds: No. 16
• Speed ranges: 23 to 1000 rpm (or 35 to 1500 rpm).
• Longitudinal feeds: 0.06 - 0.84 mm/rev.
• Cross feeds: 0.03 - 0.42 mm/rev.
Threads
• Metric pitches: 0.5 - 28 mm.
• Modular pitches: 0.25 - 14.
• Whitworth: 2 - 112 th/in.
Motor
• Standard power: 7.5 HP.
Machine supplied with use and maintenance manual.
All technical data shown is indicative and subject to change without notice. Therefore, it should not be considered binding.
