FAMUP mcx 600
- Condition: used
- published: 27/01/2026
- 26IND48487
Technical data
- Condition: used
- Year: undefined
- X-axis travel: 0/1000 mm
Description

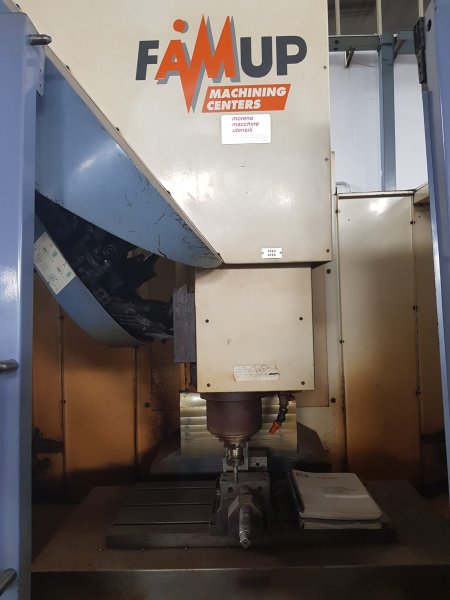

CODE 2158 FAMUP WORK CENTER mod. MCX 600
TECHNICAL SPECIFICATIONS
Brand: Famup
Model: MCX 600

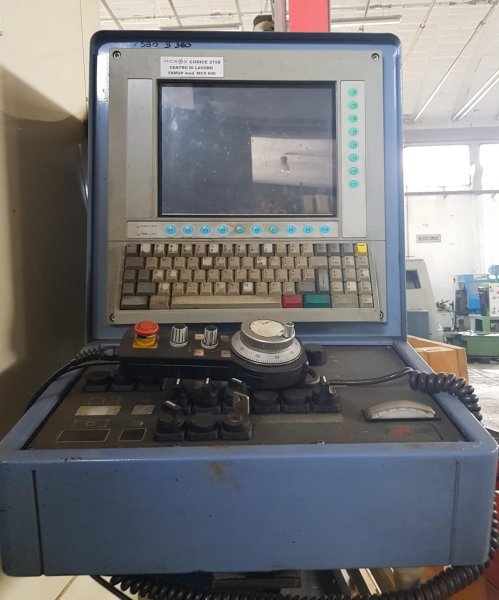

Control: SELCA 3045

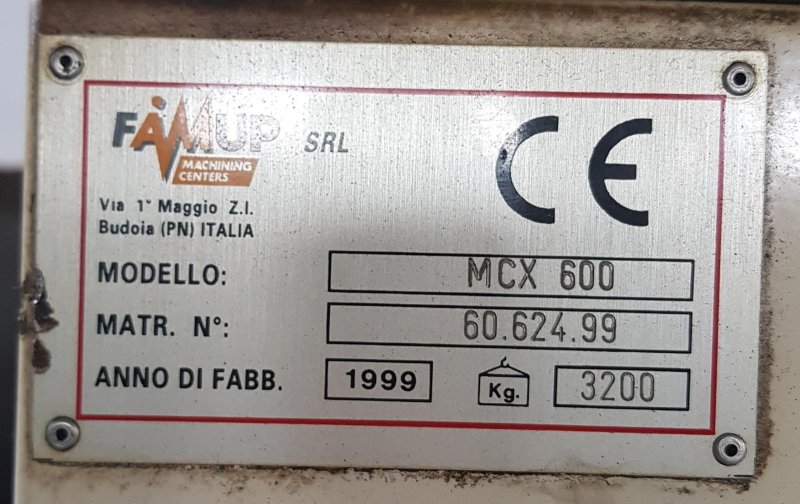

Serial number: 60 624 99
Year of manufacture: 1999
Spindle speed with coolant: 10,00 ...
CODE 2158 FAMUP WORK CENTER mod. MCX 600
TECHNICAL SPECIFICATIONS
Brand: Famup
Model: MCX 600
Control: SELCA 3045
Serial number: 60 624 99
Year of manufacture: 1999

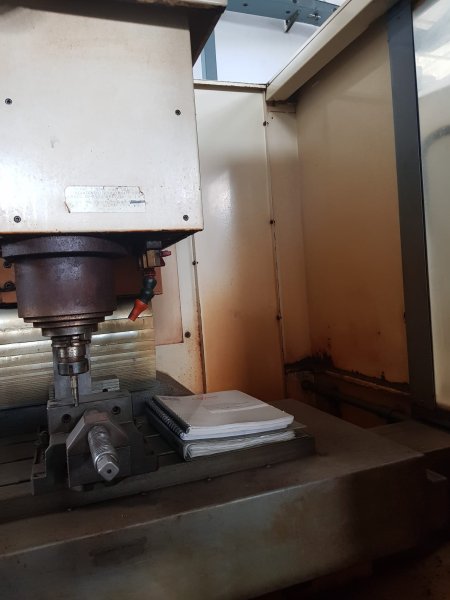

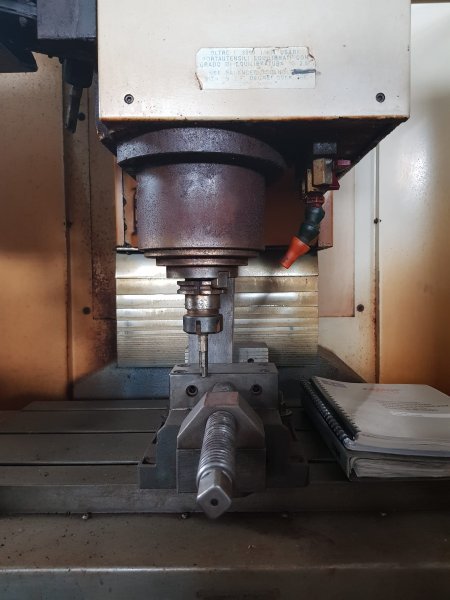

Spindle speed with coolant: 10,000 rpm
Spindle power: 5.5 kW
Tool type: ISO 40 tool taper drawbar

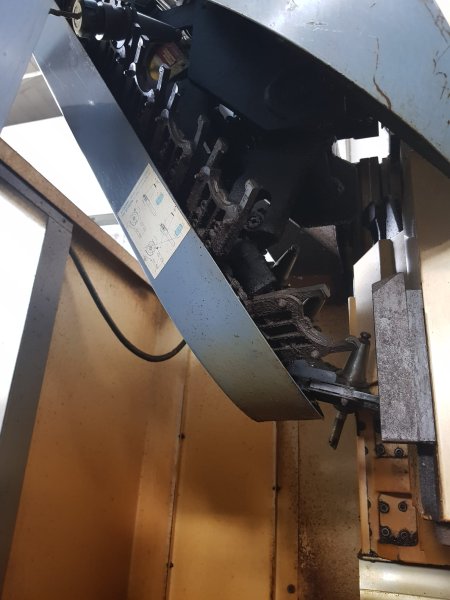

Tool magazine: 18
Maximum tool weight: 6 kg
Pneumatic connection: 6 bar
System air flow rate: 3,000 L/h
Working strokes: X 600 mm - Y 400 mm - Z 400 mm
X-axis work feed: 0.166 m/s
X-axis rapid feed: 0.3 m/s
X-axis Y-axis work feed: 0.166 m/s
Y-axis rapid feed: 0.3 m/s
Z-axis work feed: 0.166 m/s
Z-axis rapid feed: 0.3 m/s
Min - max spindle-to-table distance: 140 - 540 mm

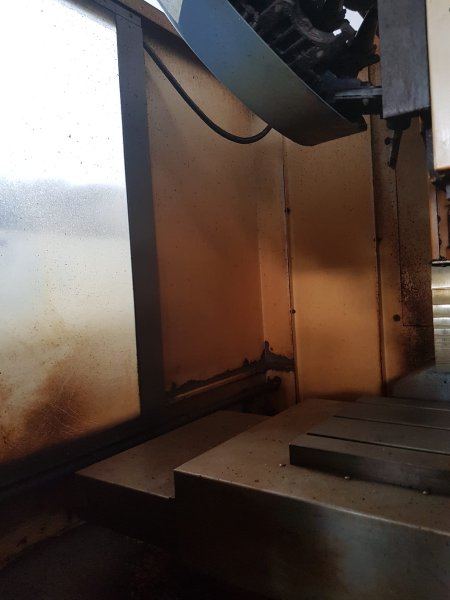

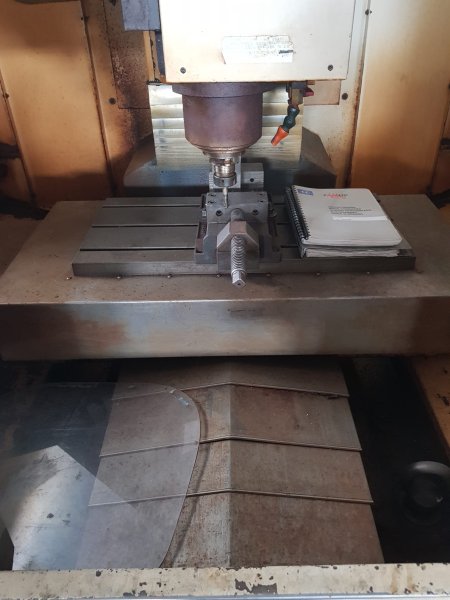

Working surface: 800 x 375 mm
T-slots: 3
T-slot center distance: 125 mm
T-slot width: 14 mm
Maximum permissible table load: 250 kg
Table-to-floor distance: 850 mm

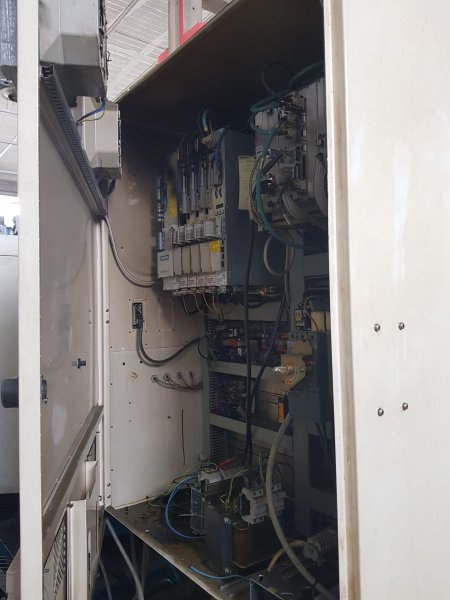

ELECTRICAL
Rated voltage: 400 V
Number of phases: 3
Frequency: 50 Hz
Rated current: 32 A
Rated current of the largest load: 22 A
Rated breaking capacity: 10 KA
Protection rating: IP54
Serial number: 60.624.99
Wiring diagram code: 0319703010
Year of manufacture: 1999
Weight: 120 kg
Weight: 3200 kg
Overall dimensions: 2010 x 2750 x 2900 mm

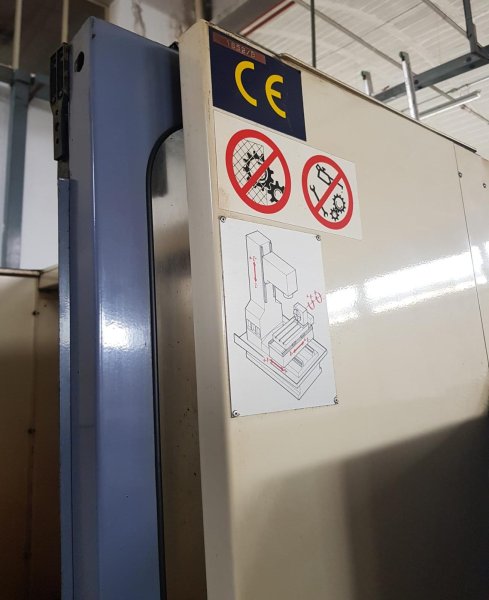

CE machine
Working
Revised
CE compliant
