BIGLIA b56-s
- Condition: used
- published: 27/01/2026
- 26IND48488
Technical data
- Condition: used
- Year: undefined
Description

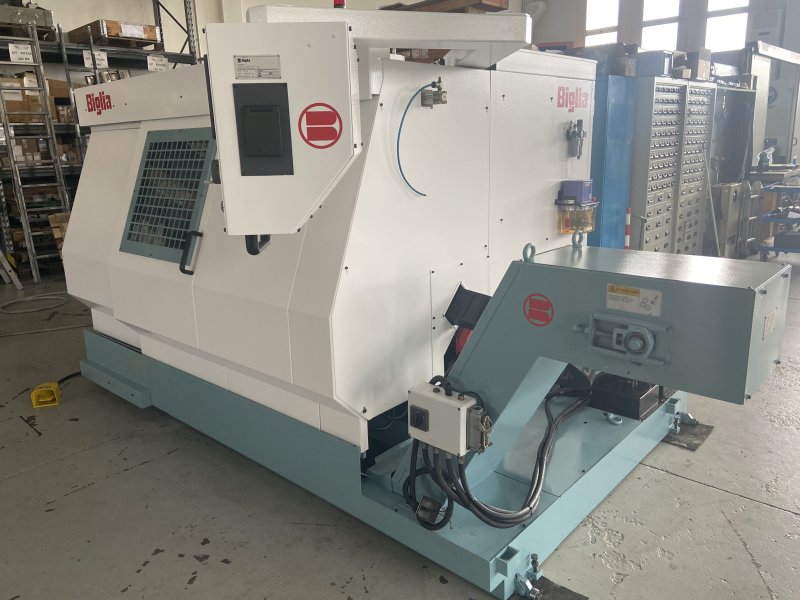

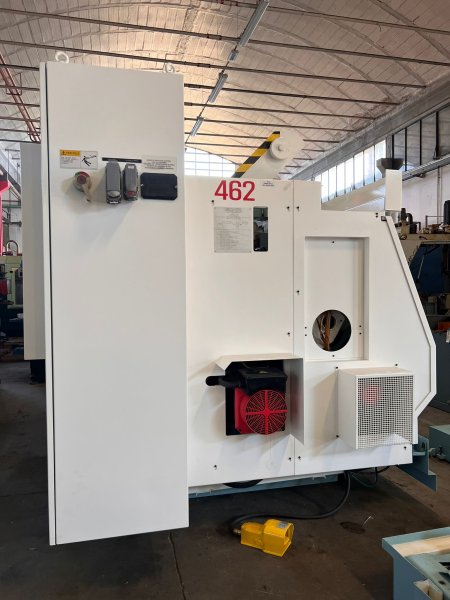

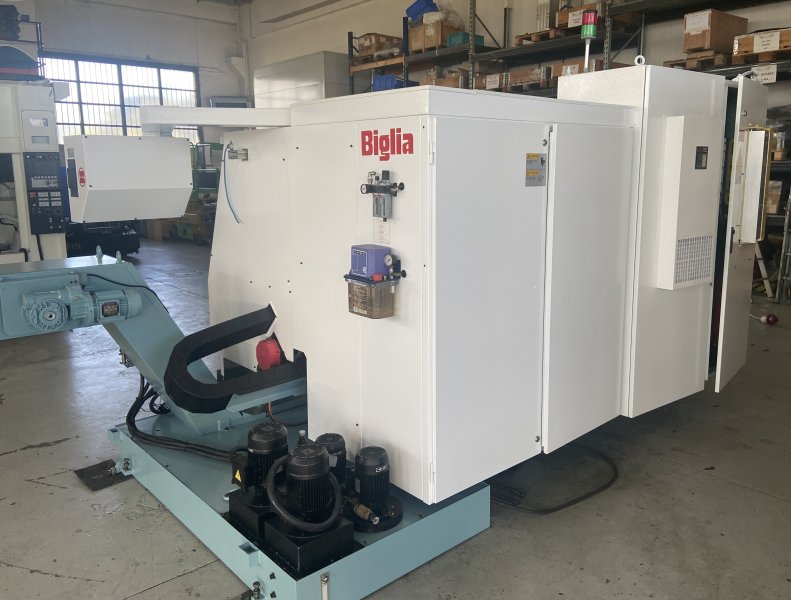

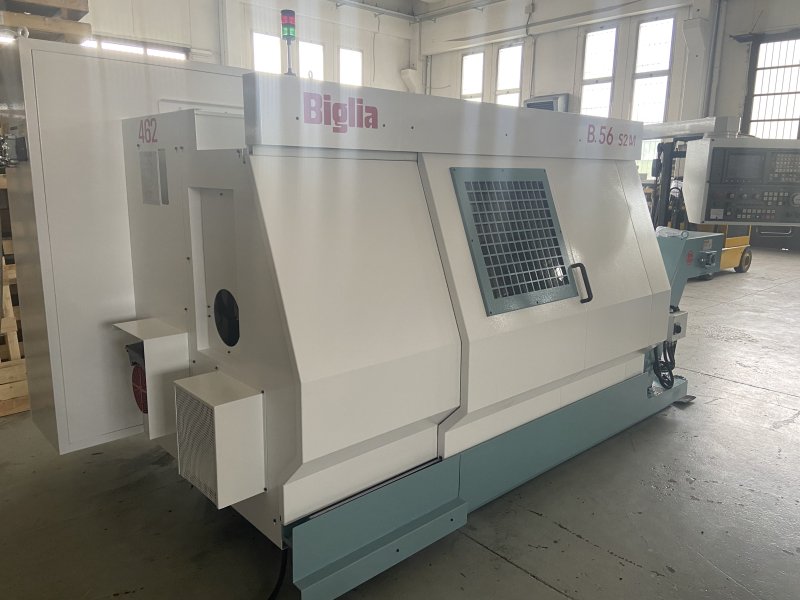

CODE 2702 - BIGLIA B56 S 4-AXIS CNC LATHE
REBUILT

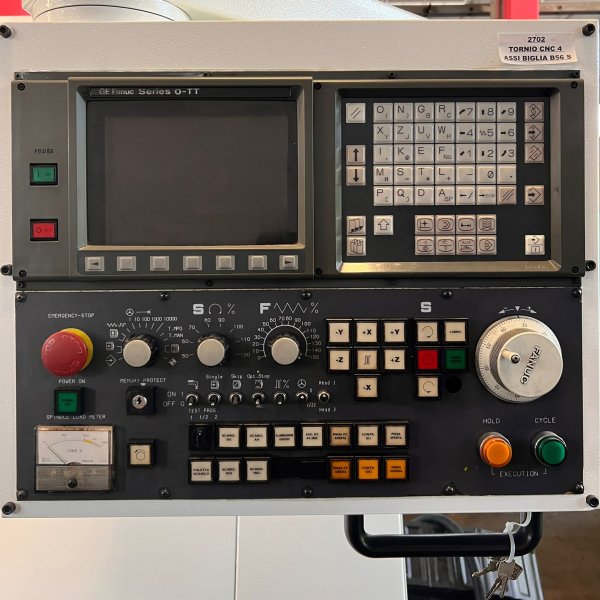

FANUC 0TT CNC
Brand: BIGLIA
Model: B56S
Serial Number: 2453
Year: 1995
Volts: 380 / Amperes: 55 / Phases: 3 / Frequency: 50 Hz
Bar Passage: 1st Spindl ...
CODE 2702 - BIGLIA B56 S 4-AXIS CNC LATHE
REBUILT
FANUC 0TT CNC
Brand: BIGLIA
Model: B56S
Serial Number: 2453
Year: 1995
Volts: 380 / Amperes: 55 / Phases: 3 / Frequency: 50 Hz
Bar Passage: 1st Spindle: 56 mm
DOUBLE SPINDLE AND DOUBLE TURRET
Maximum turning diameter of spindle 1: 400 mm
Maximum turning diameter of tailstock spindle: 180 mm
Maximum turning length of Turret 1: 410 mm
Maximum turning length of Turret 2: 180 mm
Distance between the two spindles: FROM 50 mm TO 550mm
Z-axis of second spindle controlled with 500mm travel
X-axis of second spindle with two positions
(1st axis main spindle and 2nd machining position)
Maximum rotation speed of 1st spindle: 4000 rpm
Maximum rotation speed of 2nd spindle: 4000 rpm
1st spindle diameter: 200mm
2nd spindle diameter: 165mm
1st spindle type: ASA-6
2nd spindle type: ASA-5
1st spindle power: 22/26 kW
2nd spindle power: 5.5/7.5 kW
1st turret tool holder positions: 12 positions
2nd turret tool holder positions: 8 positions
Dimensions: 4140mm x 2310mm x H 2100mm
Weight: 7500 kg
MACHINE DESIGNED FOR LOADING WITH GANTRY AND BAR FEEDER
Working
Revised
CE compliant
