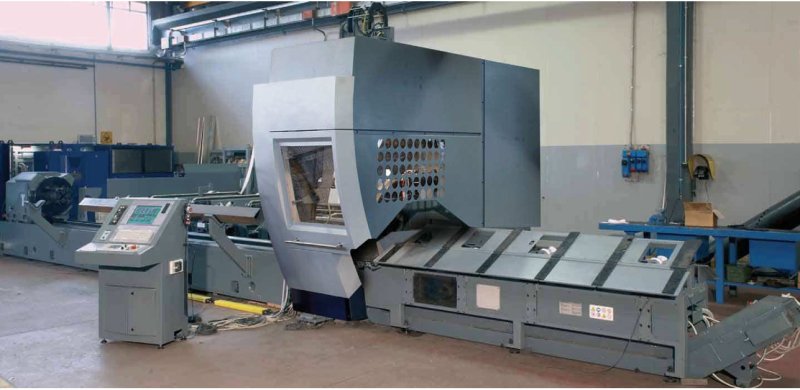

TTM MACHINERY FL 250 2007
- Condition: used
- published: 11/02/2026
- 26IND48569
Technical data
- Condition: used
- Year: 2007
Description

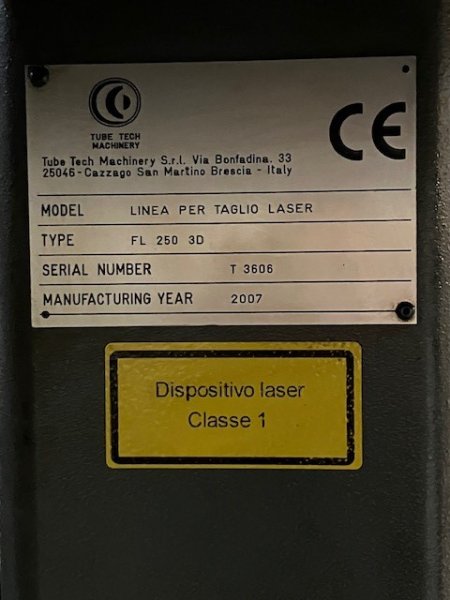

Manufacturer: Tube Tech Machinery
Model: FL 250 2D Year: 2007
Laser source: Trumpf TLF 3200, 3.2 kW power, CO2, 22,456 laser hours, 5,931 beam hours. Preventive maintenance performed twice a year by T ...
Manufacturer: Tube Tech Machinery
Model: FL 250 2D Year: 2007
Laser source: Trumpf TLF 3200, 3.2 kW power, CO2, 22,456 laser hours, 5,931 beam hours. Preventive maintenance performed twice a year by Trumpf technicians.
Max. Bar load 8,000 mm
Maximum bar weight 60 kg/m
Bar dimensions:
• Round cross-section (diameter) 15-254 mm
• Square cross-section (side) 15x15 – 220x220 mm
• Maximum circumscribed circle 254 mm
• Rectangular cross-section 25x10 – 250x150 mm
Open profiles:
• C min 20x30 mm
• C max 150x70 mm
• IPE max 180 mm
• Elle max 160x180 mm
• HEB max 180 mm
Maximum unloading length 8,000 mm
Maximum linear speed X-axis 130 m/min
Maximum linear speed Y-axis 60 m/min
Maximum linear speed Z-axis 60 m/min
Moving spindle axial acceleration 13 m/s2

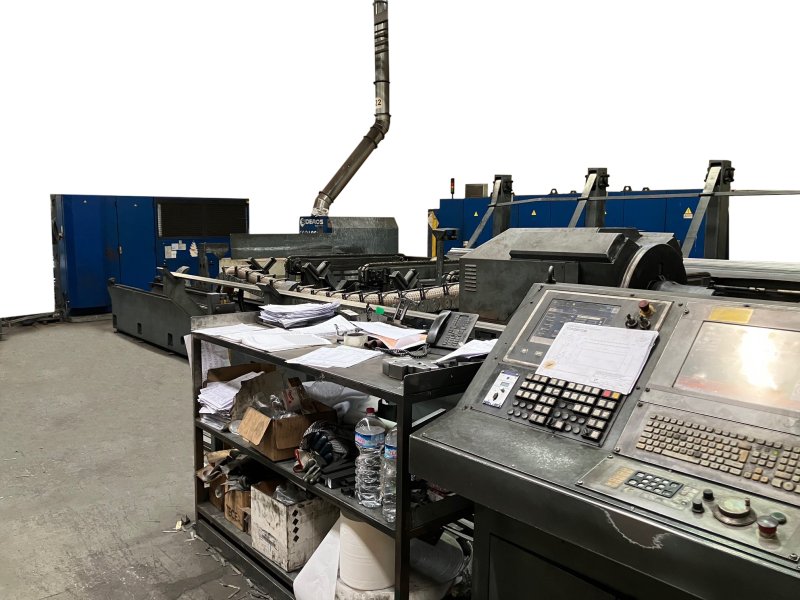

The machine features rear bundle loading (tube lifting with automatic belts and winder) and front loading for single bars. The loader has a separator with dual motors and automatic tube diameter adjustment.
The machine is equipped with three independent manipulators that allow the mandrels to be loaded with both bundled tubes and front-loading tubes and profiles.

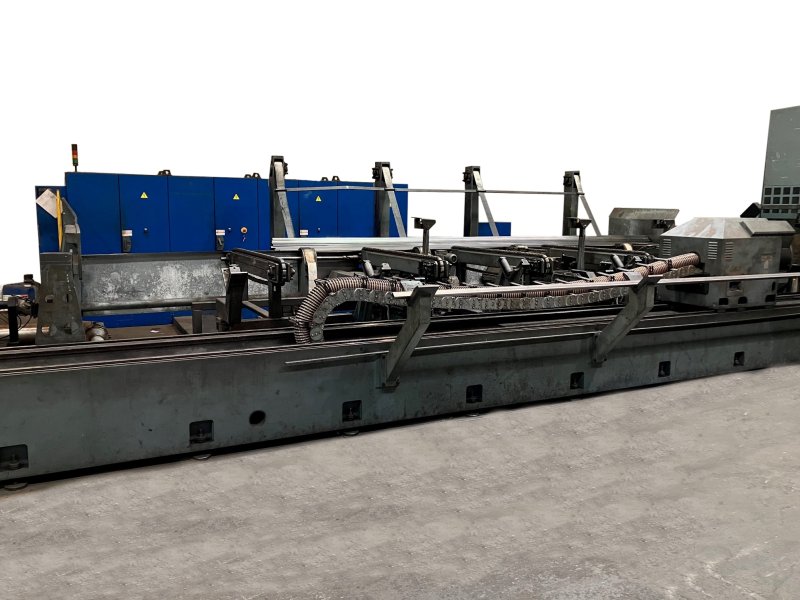

During processing, the tube is supported by saddles equipped with shaping rollers in both the loading and unloading areas.

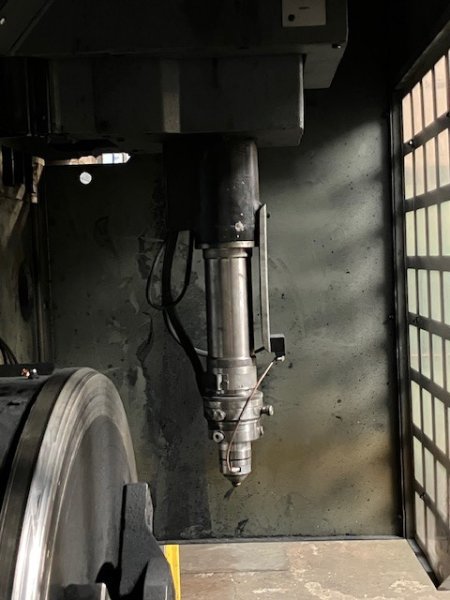

The machine features a cutting head with focal lengths of 7.5", 5", and 3.75".
The machine comes with a series of spare parts that we have acquired over time to ensure rapid troubleshooting.
The moving spindle advances via a precision rack with hardened and ground helical teeth, driven by a brushless motor and a zero-backlash precision gearbox. The spindle houses an extraction duct, connected to a system that extracts cutting fumes and debris, ensuring they are completely eliminated from the work environment.
The machine is in working order and available for pickup.
Working
CE compliant
