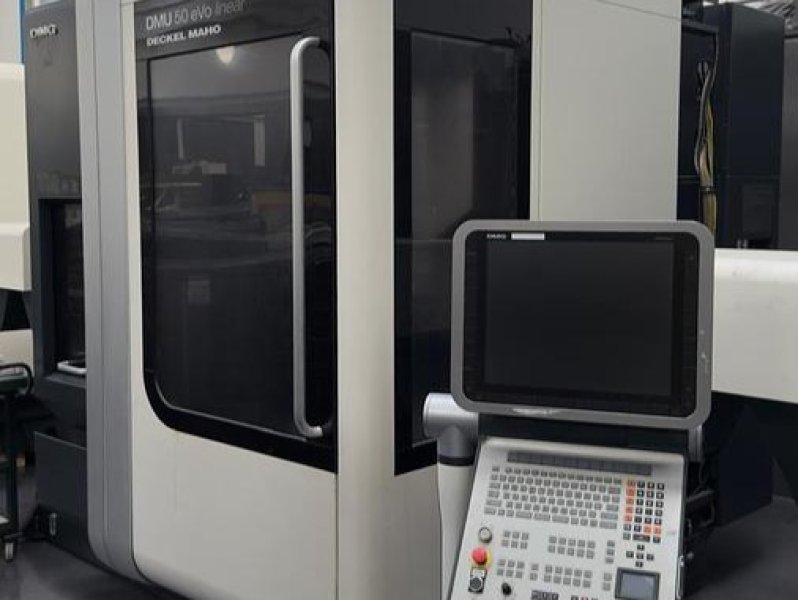

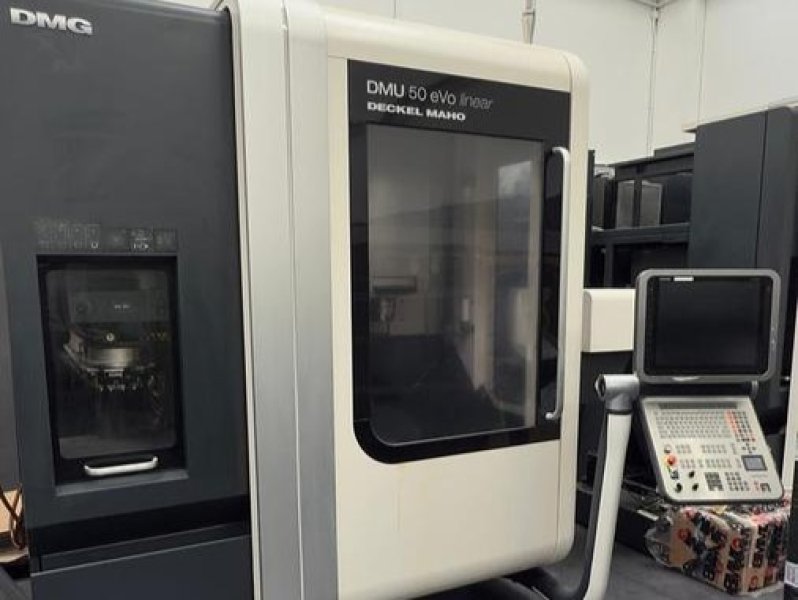

DECKEL MAHO DMU 50 Evo Linear 2010
- Condition: used
- published: 16/02/2026
- 26IND48573
Technical data
- Condition: used
- Year: 2010
- Pallet size : 501/600 mm
Description
Year of manufacture: 2010
Numerical control: Heidenhain iTNC 530
Axes
X-axis travel mm: 500
Y-axis travel mm: 450
Z-axis travel mm: 400
C-axis angle: 360° (0.001)
B-axis angle: 0°/108° (0.001)
Rapi ...
Year of manufacture: 2010
Numerical control: Heidenhain iTNC 530
Axes
X-axis travel mm: 500
Y-axis travel mm: 450
Z-axis travel mm: 400
C-axis angle: 360° (0.001)
B-axis angle: 0°/108° (0.001)
Rapid traverse m/min: 80/50/50

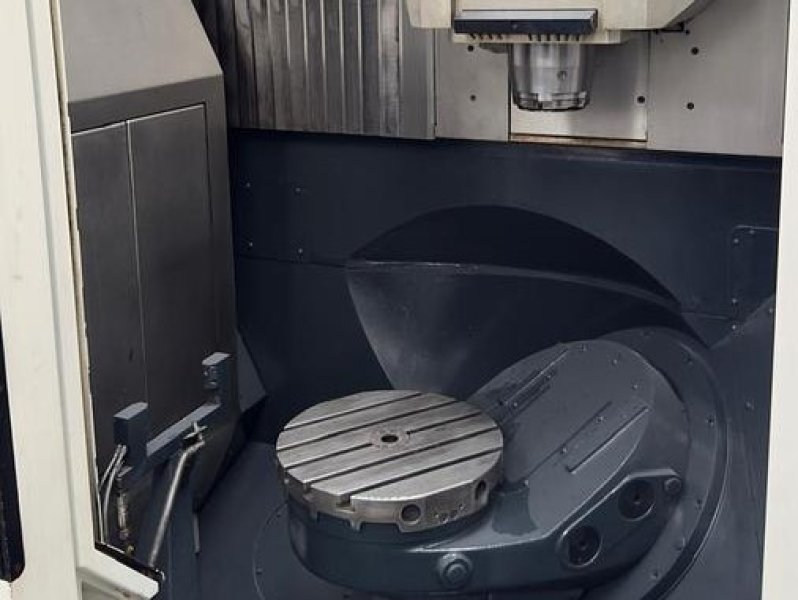

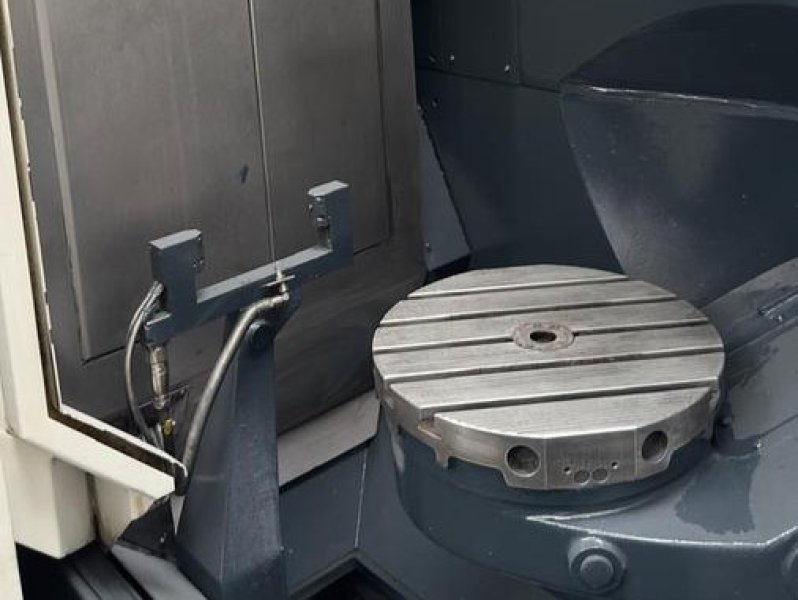

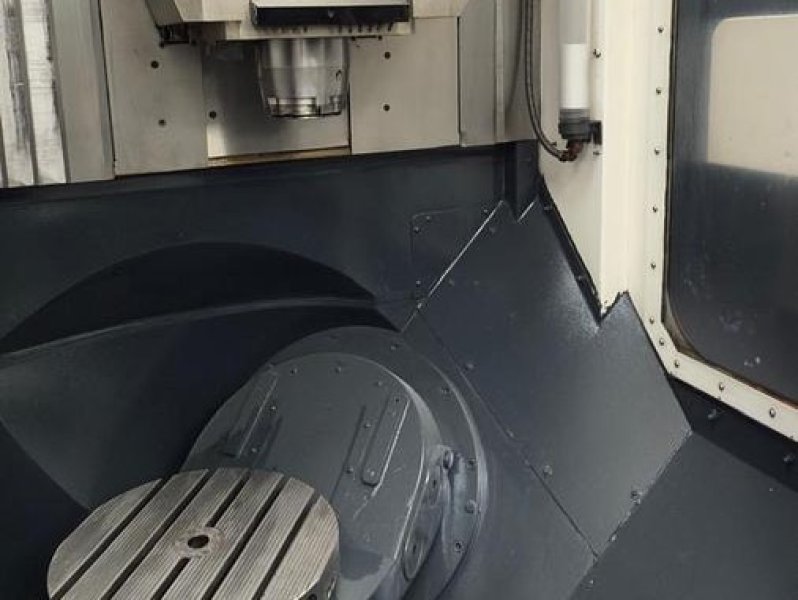

NC milling/turning table:
Table size mm: Ø390
Maximum workpiece size mm: Ø630x500
Maximum workpiece weight kg: 200
Spindle
Spindle rotation speed rpm: 18,000
Spindle power kW: 35/25 (40% ED/cont)
Maximum torque Nm: 130/87
Coolant
Coolant via spindle center bar: 40

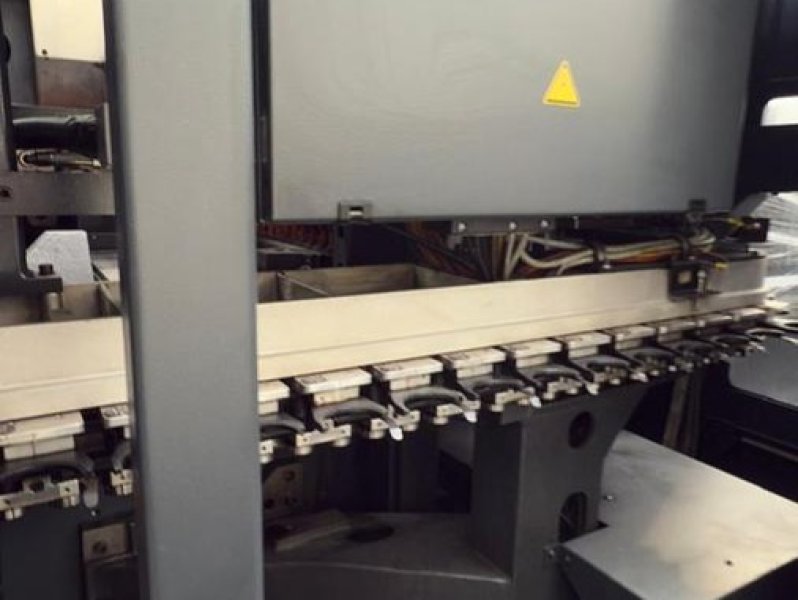

Tool magazine
HSK-A 63 tool holder
Tool magazine positions: 30
With adjacent tool positions free mm: 130
With adjacent tool positions occupied mm: 80
Maximum tool length mm: 300
Tool change time, chip-to-chip s: 5
Equipment
Chip conveyor
Infrared probe
Wash gun
Air flow through the spindle activated by M function
Status indicator light
Laser measurement of tool diameter and length
Programmable coolant flow
Heat compensator
Direct measuring system XYZ
Electrical cabinet active cooling unit
Oil skimmer
Provision for internal cooling (40/80 bar)
RENISHAW measuring probe
Automatic door
Operating time
Powered: 54,257
Operating spindle: 32,498

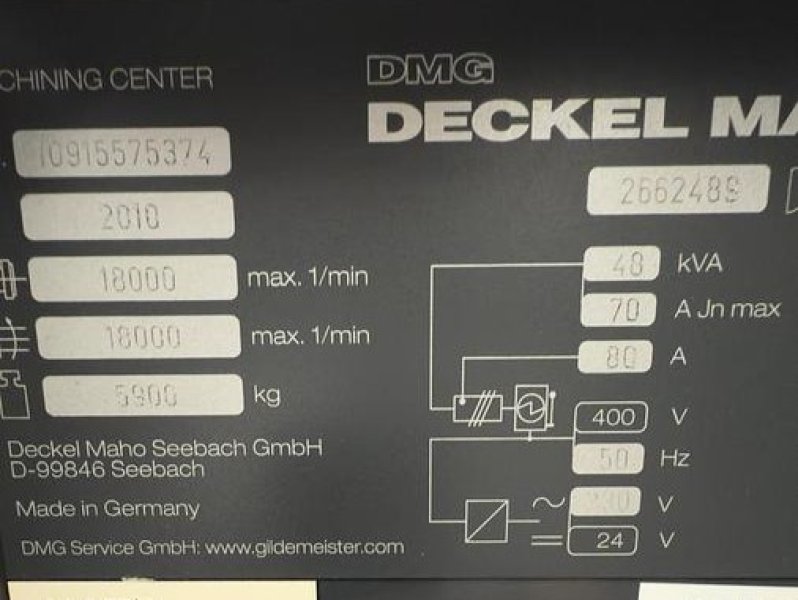

Rated power kVA: 48
Main machine dimensions / weight
Length mm: 4,780
Width mm: 4,410
Height mm: 2,590
Weight kg: 5,900
