TACCHI HD 3-140 L CNC 1998
- Condition: used
- published: 13/07/2026
- 26IND48601
Technical data
- Condition: used
- Year: 1998
- Distance between tips : > 5000 mm
- Tip height : > 500 mm
Description

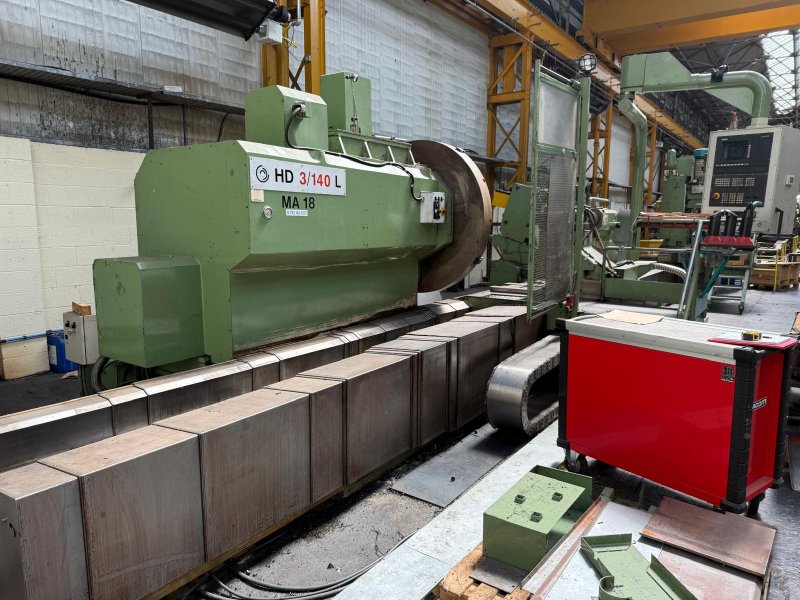

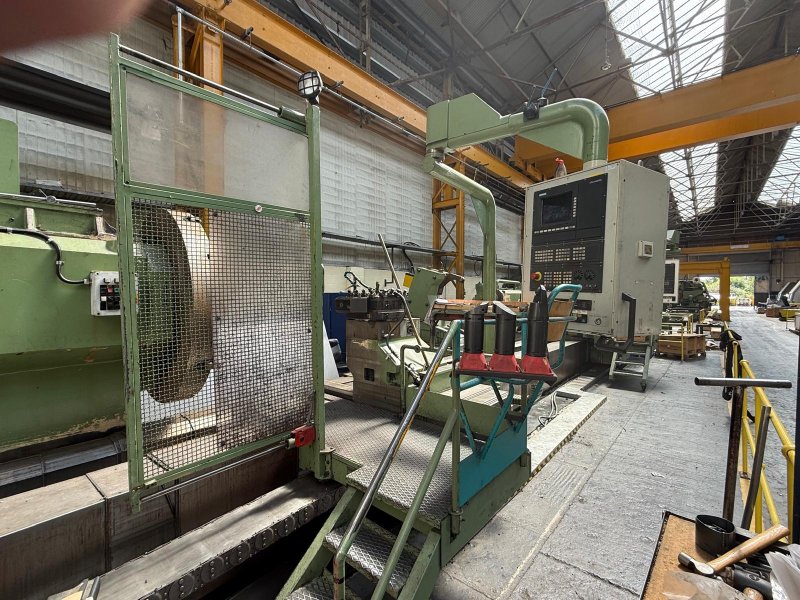

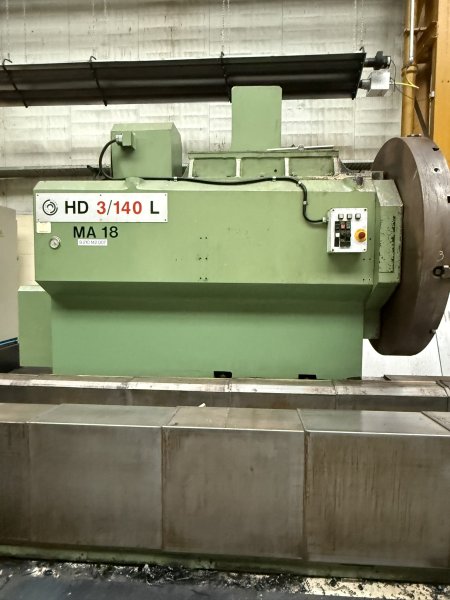

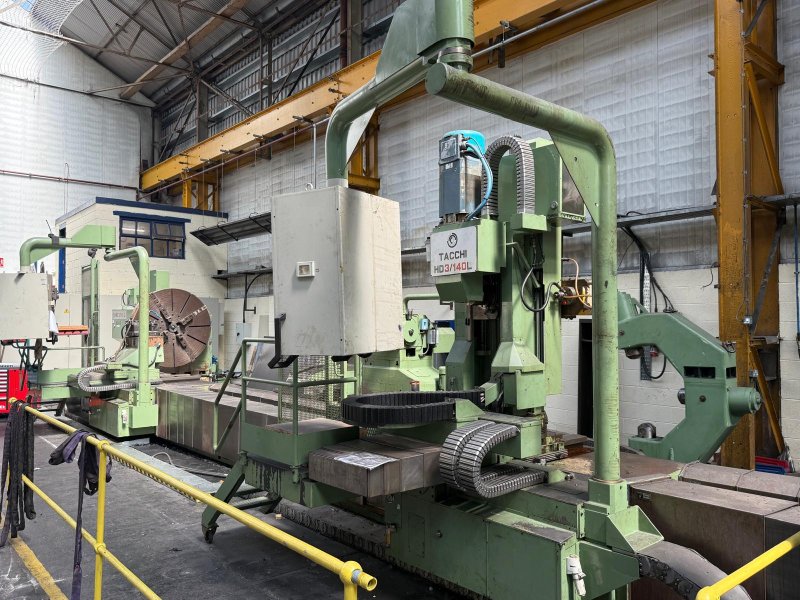

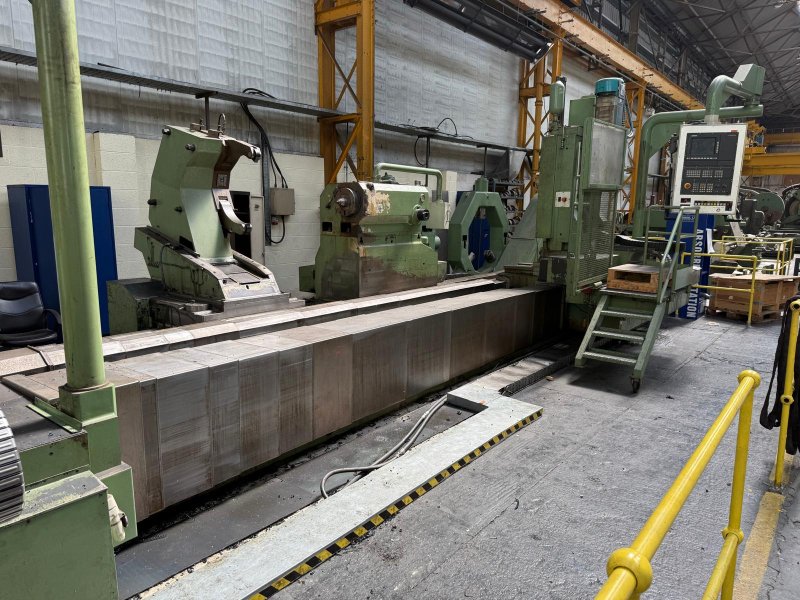

TACCHI HD 3-140 L CNC THREE-SIDED PARALLEL LATHE
Distance between centers: 8,000 mm.
Height of centers: 1,000 mm.
Max. diameter over bed: 2,000 mm.
Max. diameter over slide: 1,550 mm.
Load capacity be ...
TACCHI HD 3-140 L CNC THREE-SIDED PARALLEL LATHE
Distance between centers: 8,000 mm.
Height of centers: 1,000 mm.
Max. diameter over bed: 2,000 mm.
Max. diameter over slide: 1,550 mm.
Load capacity between centers (without steady rests): 25,000 kg.
Bed width: 1,400 mm.
Spindle bore: 150 mm.
Spindle motor power: 95 kW.
Spindle speed: 1 ÷ 360 rpm.

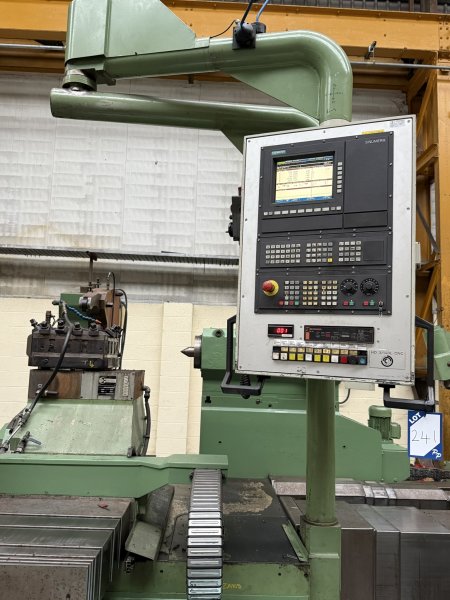

Siemens 840 C CNC
Year of construction: 1998
Complete with:
- "C" axis

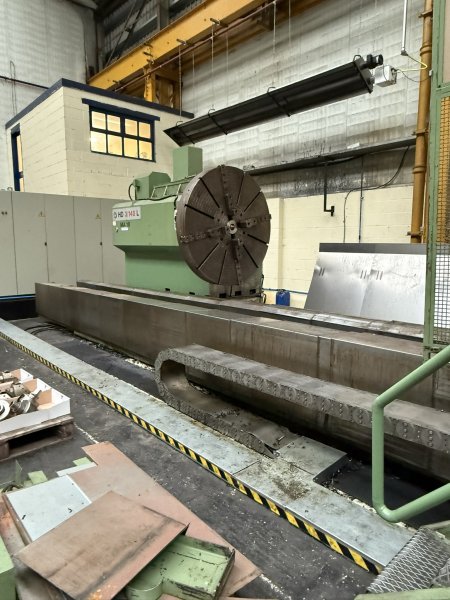

- 1,500 mm diameter platform

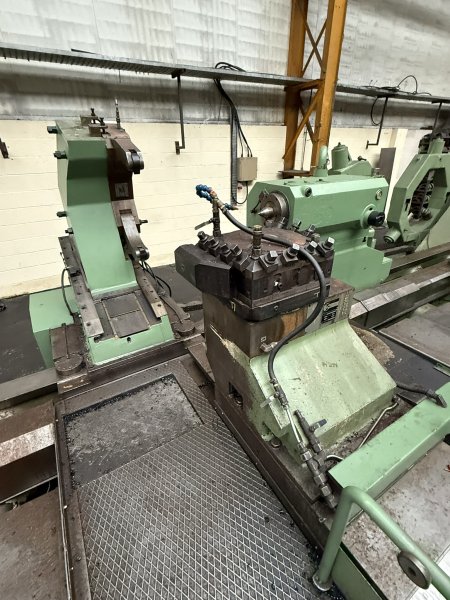

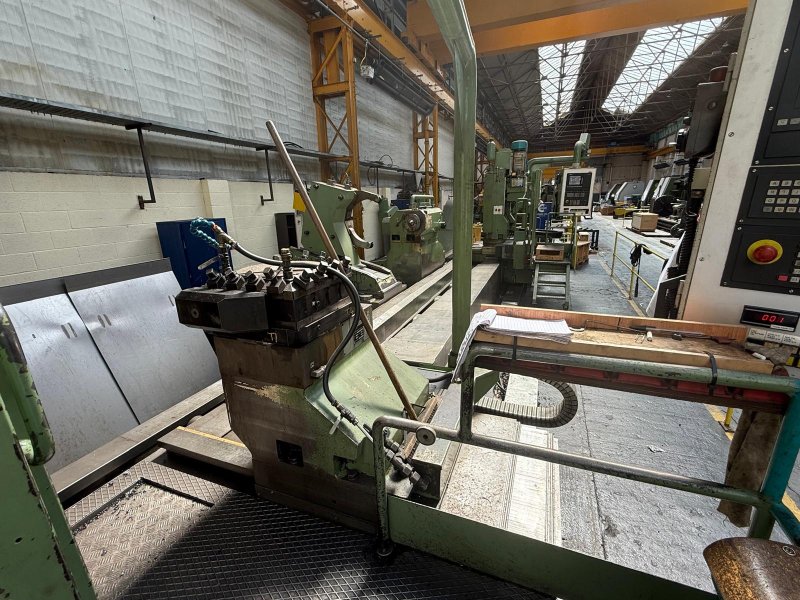

- n. 1 slide with automatic square turret
- 1 slide with rotating milling column: vertical travel (Y-axis) 500 mm; milling motor power 22 kW; milling speed 0-1,800 rpm; ISO 50 taper
- 1 self-centering hydraulic steady rest
- 1 closed steady rest
- 1 C-shaped steady rest

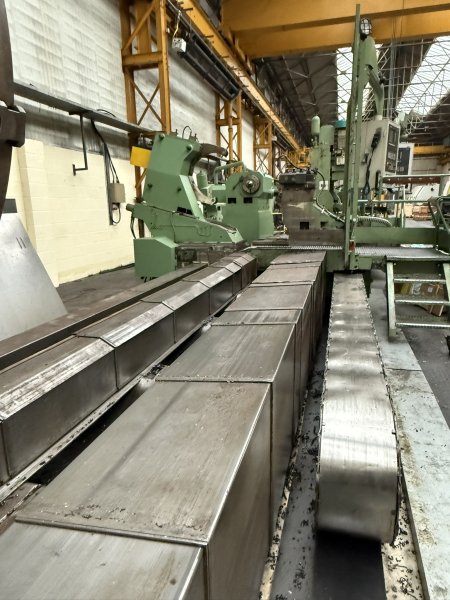

- chip conveyor
