PARPAS DIAMOND LINEAR 30 2021
- Condition: used
- published: 19/02/2026
- 26IND48603
Technical data
- Condition: used
- Year: 2021
- X-axis travel: 0/4000 mm
Description

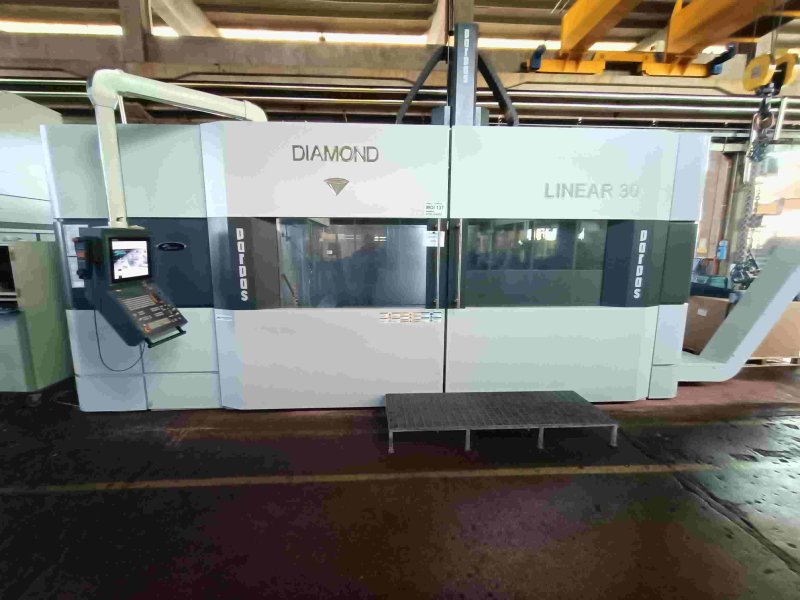

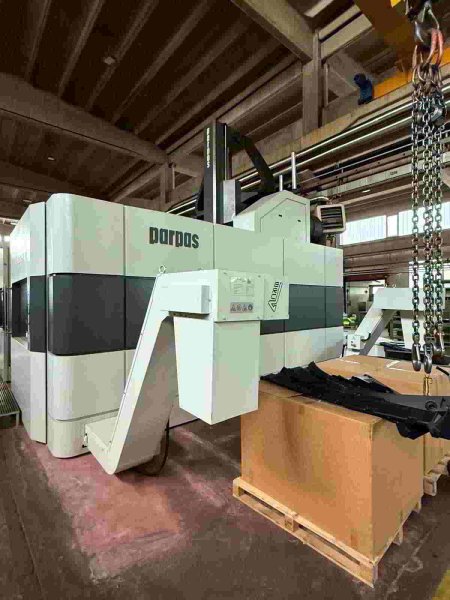

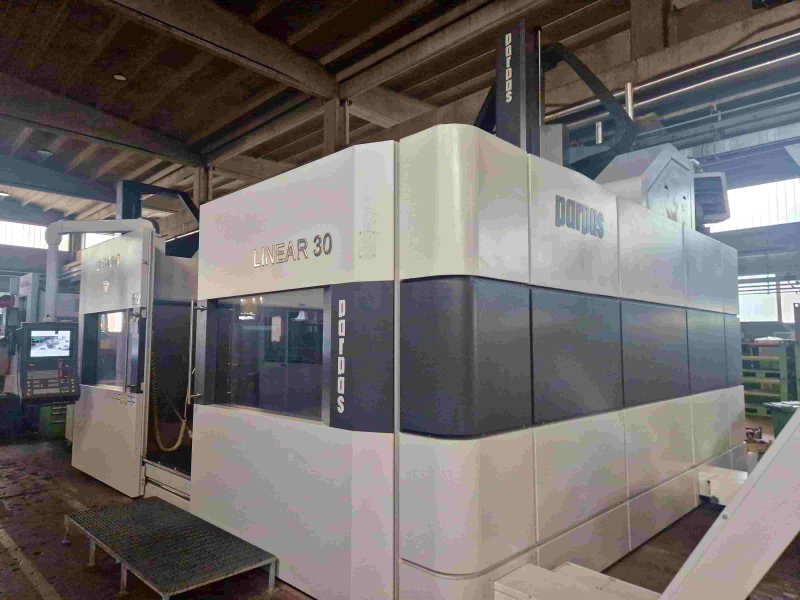

PARPAS DIAMOND LINEAR 30 MOVABLE GANTRY MILLING MACHINE

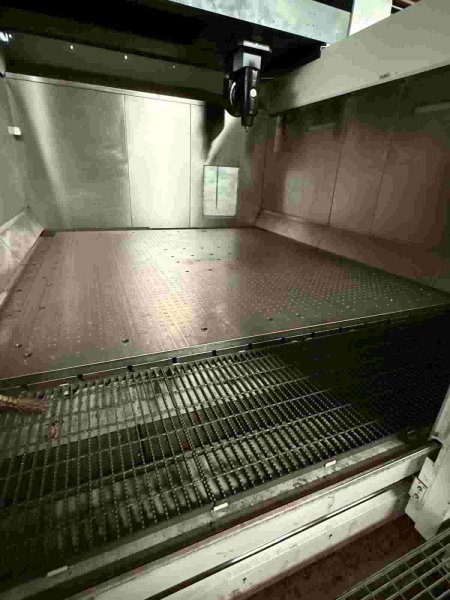

Table 3,100 x 2,800 mm
Table capacity 6 tons/m2
Longitudinal gantry travel (X) 3,000 mm
Transverse head travel (Y) 2,600 mm
Vertical ram travel ...
PARPAS DIAMOND LINEAR 30 MOVABLE GANTRY MILLING MACHINE
Table 3,100 x 2,800 mm
Table capacity 6 tons/m2
Longitudinal gantry travel (X) 3,000 mm
Transverse head travel (Y) 2,600 mm
Vertical ram travel (Z) 1,400 mm
Max. spindle/table distance 1,490 mm
Rapid feeds (X; Y; Z) 60,000 mm/min
1 continuous bi-rotary head:
- C-axis rotation +/- 370°
- A-axis rotation +/- 110°
- Spindle motor power 37 kW
- Spindle rotation speed 3,000 ÷ 20,000 rpm
- Spindle taper HSK-A 63

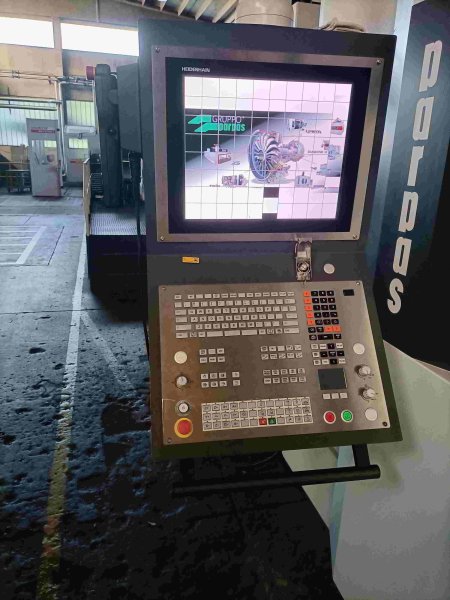

Heidenhain 640 CNC
Year of construction 2021
Complete with:
- 60-slot tool magazine
- Double chip conveyor
