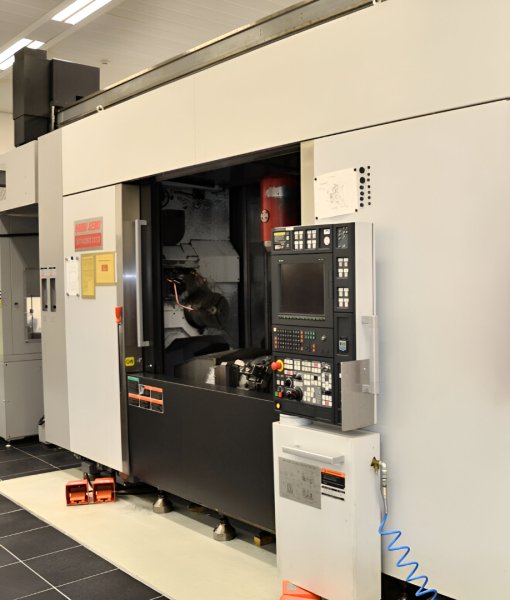

MORI SEIKI NT4250DCG 1500SZ 2008
- Condition: used
- published: 20/02/2026
- 26IND48615
Technical data
- Condition: used
- Year: 2008
Description

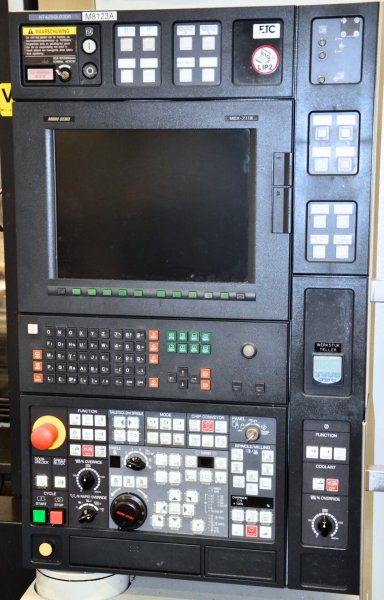

Numerical control: FS-31IA5 (MAPPS 3)
Capacity
Z-axis travel mm: 1,550 + 100
Turning length mm: 1,542
Swing diameter mm: ø: 660
Swing diameter mm: ø: 730
Distance between spindle centers mm: 1,862
T ...
Numerical control: FS-31IA5 (MAPPS 3)
Capacity
Z-axis travel mm: 1,550 + 100
Turning length mm: 1,542
Swing diameter mm: ø: 660
Swing diameter mm: ø: 730
Distance between spindle centers mm: 1,862
Turning diameter f. Lower turret mm: 350
Bar passage mm: 80 / 80

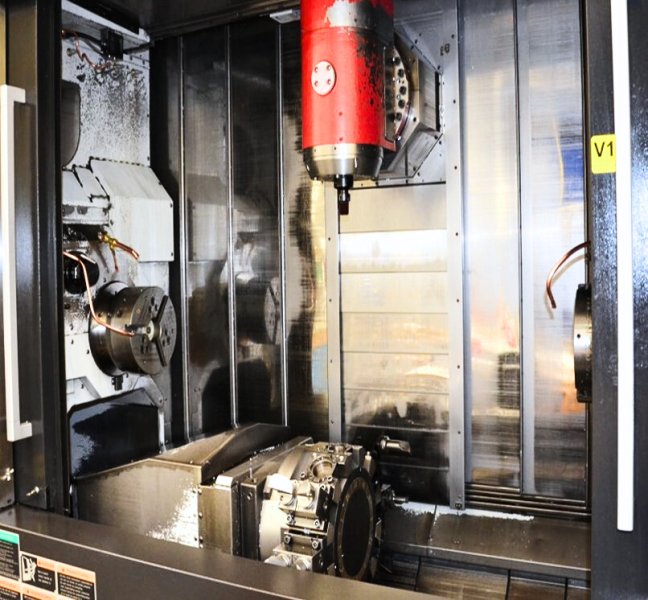

Turning-milling spindle
X-axis travel mm: 750
Y-axis travel mm: ±210
B-axis angle: ±120° (Index 1°)
C-axis angle: 360º (0.001º)
Spindle rotation speed rpm: 12,000
Spindle power kW: 18.5 / 11 (30 min/cont)
Tool magazine
Number of positions: 100
Tool holder type: CAPTO C6
Maximum tool length mm: 400
Maximum tool diameter mm: 140
Maximum tool weight kg: 8
Lower turret
X-axis travel mm: 195
Z-axis travel mm: 1,525
Number of tool positions: 12
Live tools, rpm: 6,000
Milling function: PROVIDED

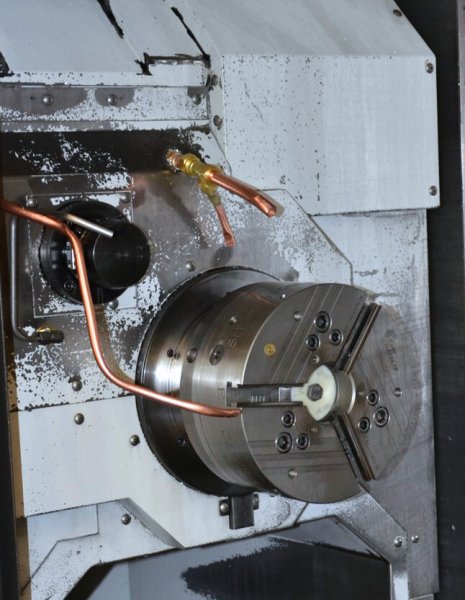

Main spindle
Spindle rotation speed rpm: 4,000
Spindle power kW: 22 / 18.5 (30 min/cont)
Bar passage mm: ø: 91

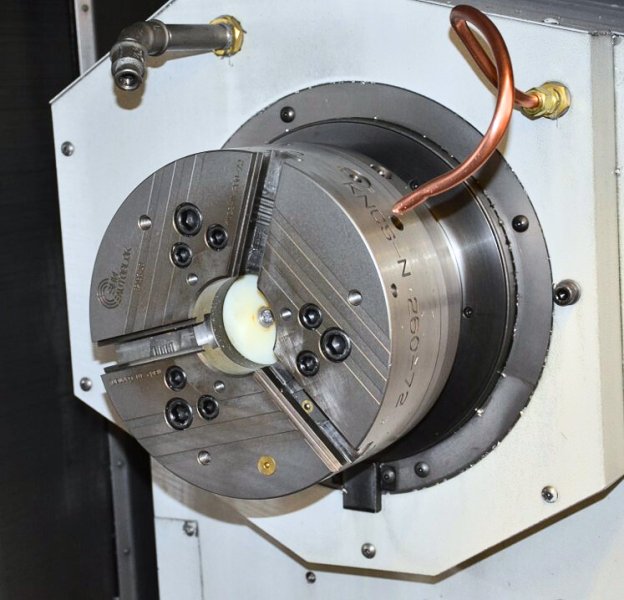

Counter spindle
Spindle rotation speed rpm: 4,000
Spindle power kW: 22 / 18.5 (30 min/cont)
Bar passage (??): 91
Lubricant-coolant system
High pressure bar: 28
Equipment
Electronic handwheel
Chip conveyor
Tool integrity monitor
WORKING AREA LAMP WORKING
Air blower outside the spindle
Cooling gun
Internal coolant supply
Measuring probe
LG-10 Gantry loader; 10 pallets, 10 kg per hand, pieces of Ø200 x 150 (W x H)
Main machine dimensions / weight
Length mm: 6,800
Width mm: 3,200
Height mm: 2,900
Weight kg: 25,600
