FMS ISX20 2007
- Condition: used
- published: 23/02/2026
- 26IND48628
Technical data
- Condition: used
- Year: 2007
Description

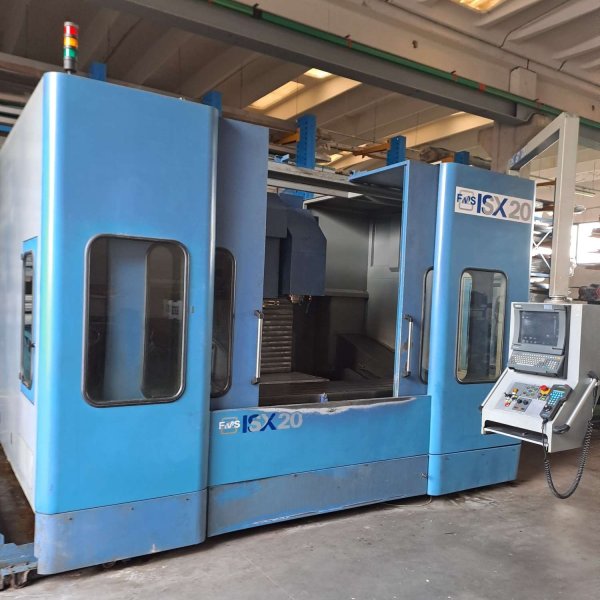

FMS ISX 20 TRAVELLING COLUMN VERTICAL MACHINING CENTER
X-AXIS TRAVEL: 2000 MM;
Z-AXIS TRAVEL: 600 MM;
Y-AXIS TRAVEL: 600 MM;

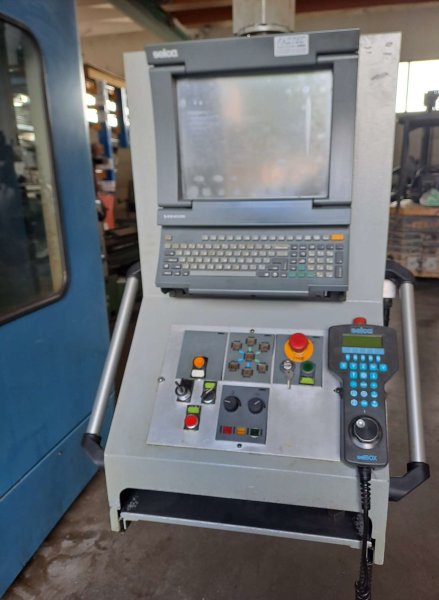

SELCA S 4045 DH CNC,
TABLE DIMENSIONS 2200X600 MM,
BT 40 SPINDLE
SPINDLE SP ...
FMS ISX 20 TRAVELLING COLUMN VERTICAL MACHINING CENTER
X-AXIS TRAVEL: 2000 MM;
Z-AXIS TRAVEL: 600 MM;
Y-AXIS TRAVEL: 600 MM;
SELCA S 4045 DH CNC,
TABLE DIMENSIONS 2200X600 MM,
BT 40 SPINDLE
SPINDLE SPEED 9,000 RPM
SPINDLE MOTOR POWER 11.5 KW
RAPID FEED 40,000/60,000 MM/MIN
TOOL MAGAZINE 30 TOOLS

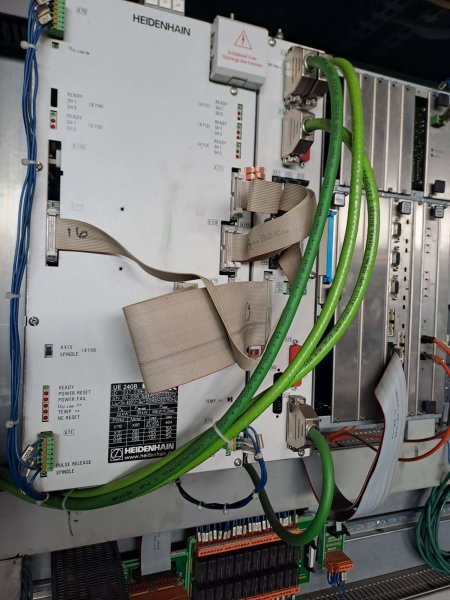

HEIDENHAIN DRIVES WITH A 6-MONTH WARRANTY
DIMENSIONS: HEIGHT 3050 MM, LENGTH 4800 MM, WIDTH 2950 MM
WEIGHT 11,500 KG
YEAR 2007 CE
