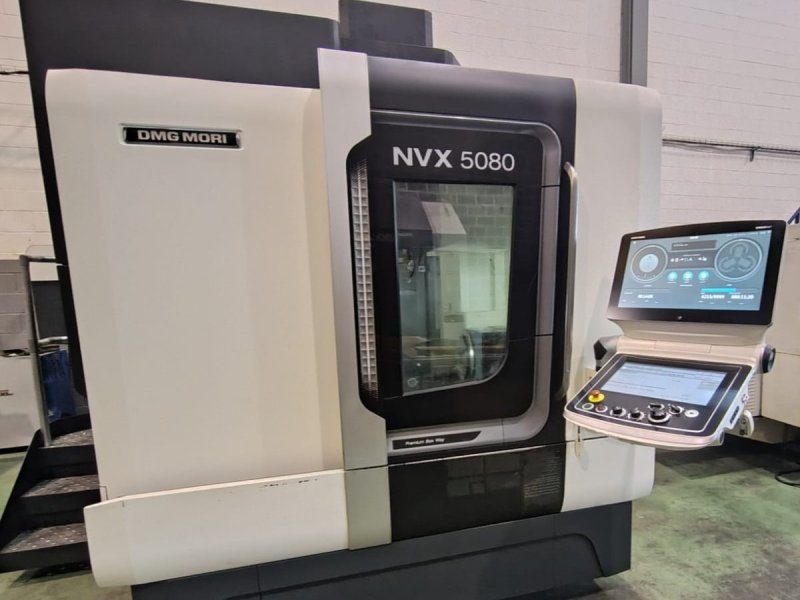

DMG MORI NVX 5080/50 2015
- Condition: used
- published: 24/02/2026
- 26IND48634
Technical data
- Condition: used
- Year: 2015
- X-axis travel: 0/1000 mm
Description
Year of manufacture: 2015
Numerical control: M-730UM
Axes
X-axis travel mm: 800
Y-axis travel mm: 530
Z-axis travel mm: 510
Distance between table surface and spindle nose mm: 150-660
Feed rate m/min: ...
Year of manufacture: 2015
Numerical control: M-730UM
Axes
X-axis travel mm: 800
Y-axis travel mm: 530
Z-axis travel mm: 510
Distance between table surface and spindle nose mm: 150-660
Feed rate m/min: 5
Rapid feed m/min: 30
Working area
Number of pallets: 1
Table dimensions mm: 1100x600
Maximum workpiece weight kg: 1000
Spindle
Spindle rotation speed rpm: 8000
Spindle power kW: 30/22 (25% ED/cont)
Maximum torque Nm: 304

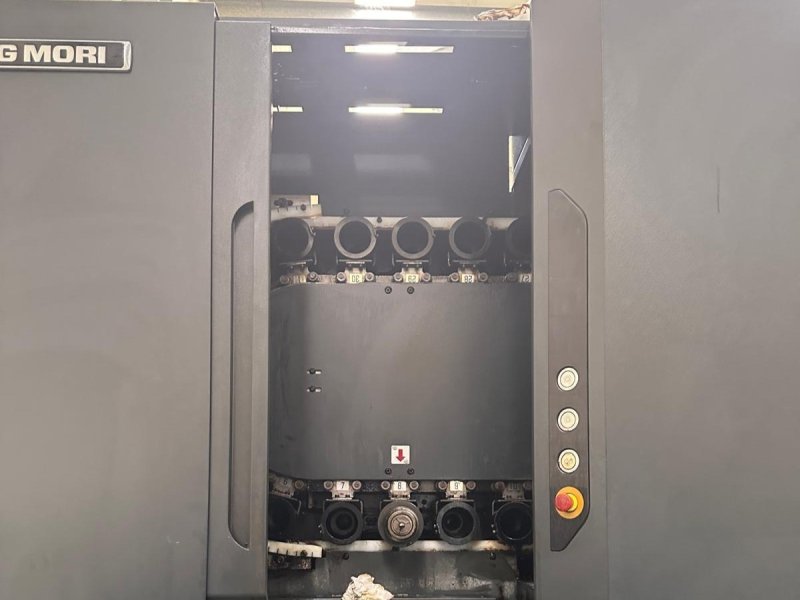

Tool magazine
MAS-BT 50 tool holder
Tool magazine positions 30
With free adjacent tool positions mm: 240
With occupied adjacent tool positions mm: 120
Maximum tool length mm: 350
Maximum tool weight kg: 20
Tool change time s: 2.34
Equipment

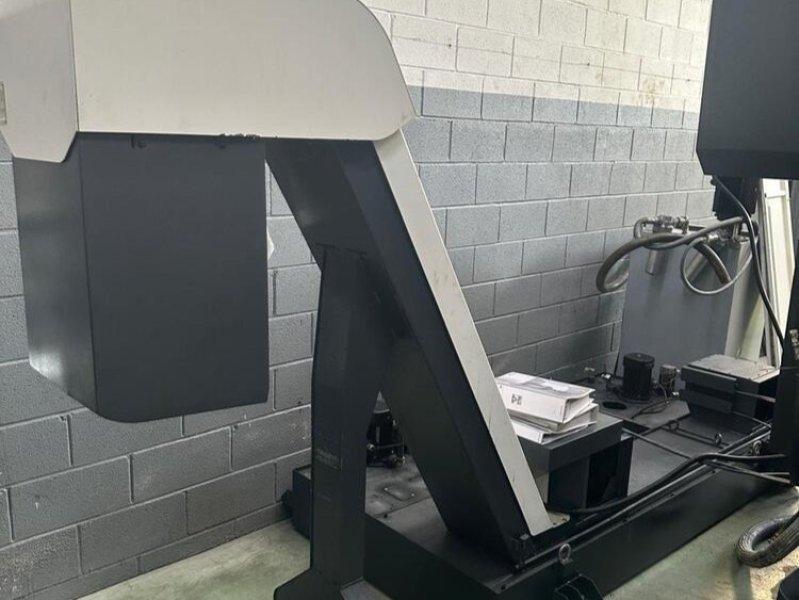

Chip conveyor
Internal cooling lubricant supply (via center)

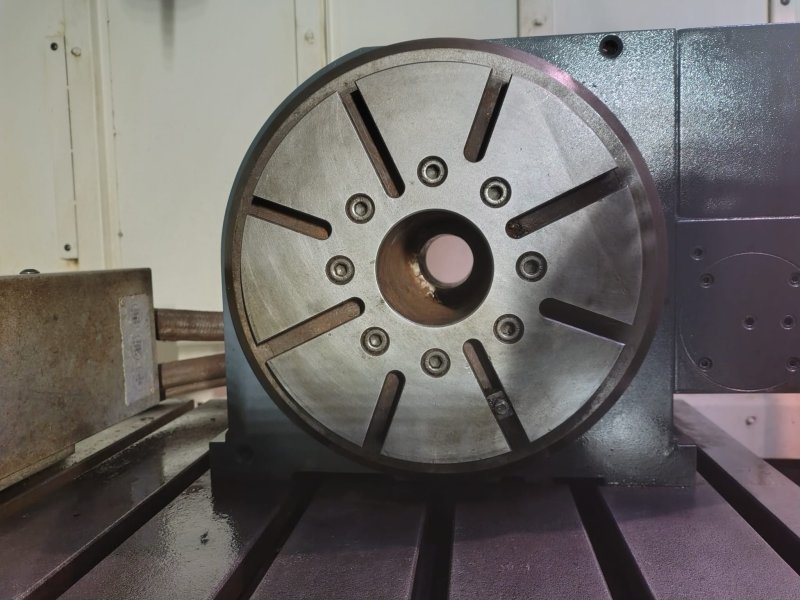

4th axis DDRT-260X
Custom Macro common variables (200)

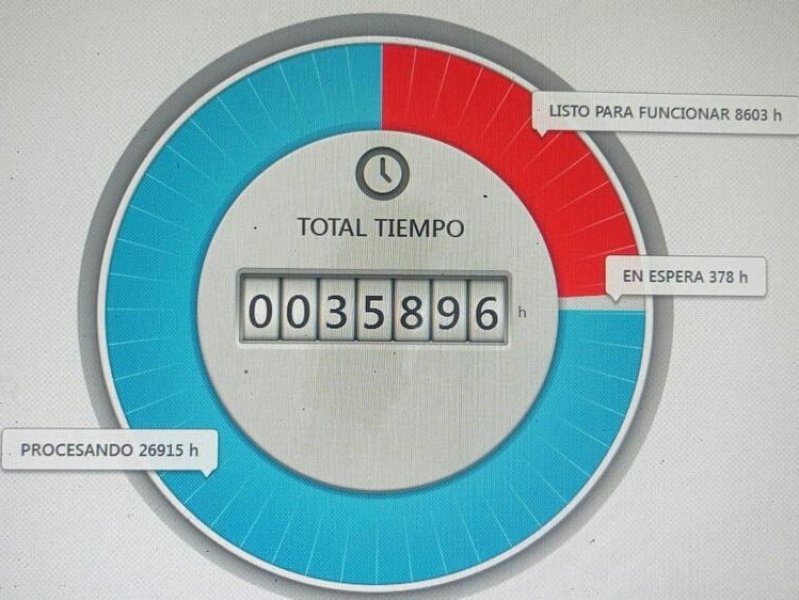

Working time
Powered: 35896
Spindle operating: 26915
Rated power kVA: 52
Main machine dimensions / weight
Length mm: 3300
Width mm: 3000
Height mm: 2800
Weight kg: 6870
