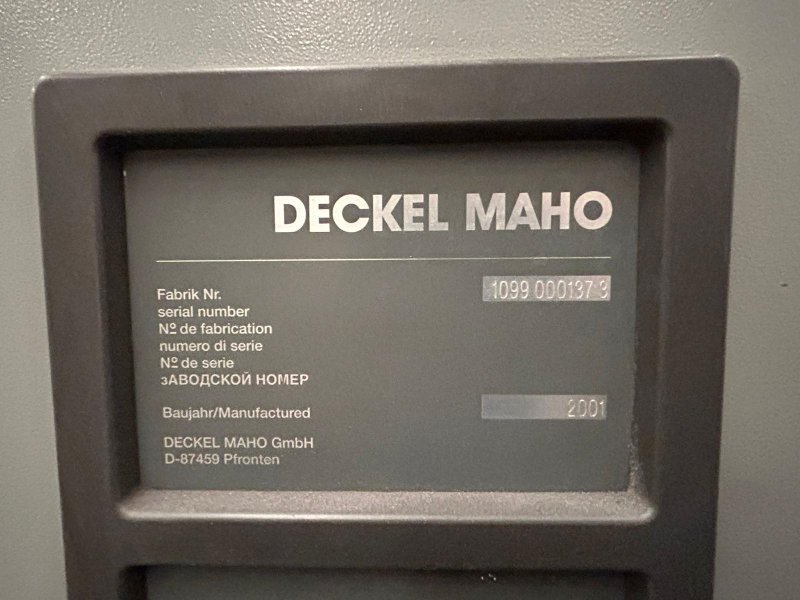

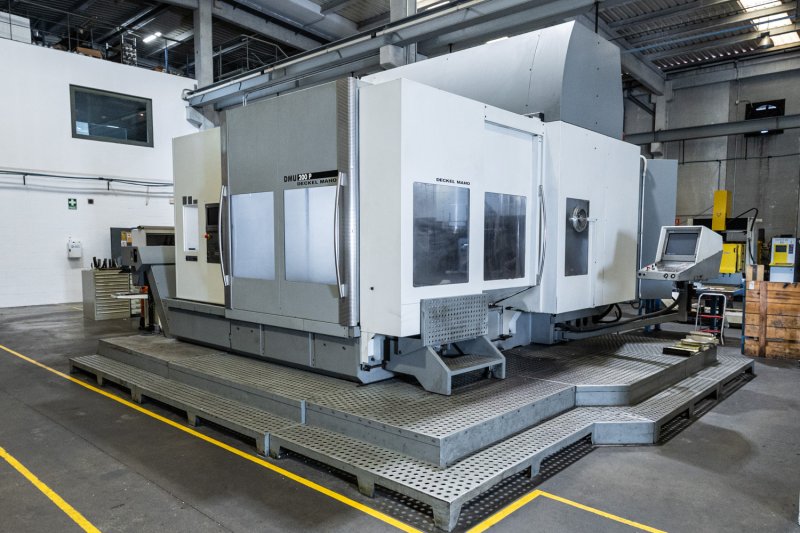

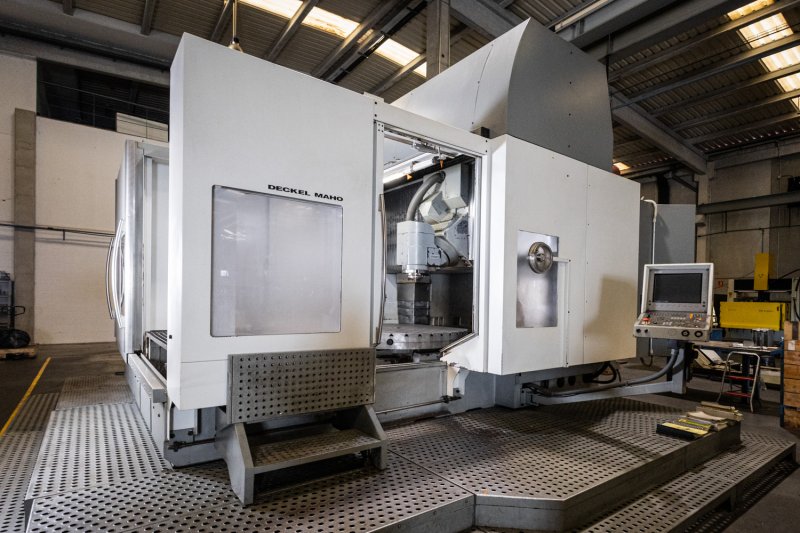

DECKEL MAHO DMU 200 P 2001
- Condition: used
- published: 04/03/2026
- 26IND48697
Technical data
- Condition: used
- Year: 2001
- X-axis travel: 1001/2000 mm
Description
Year of manufacture: 2001

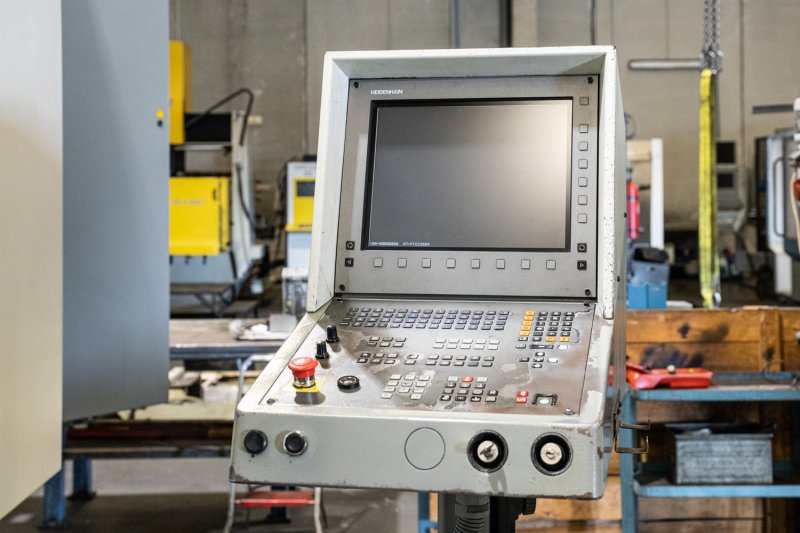

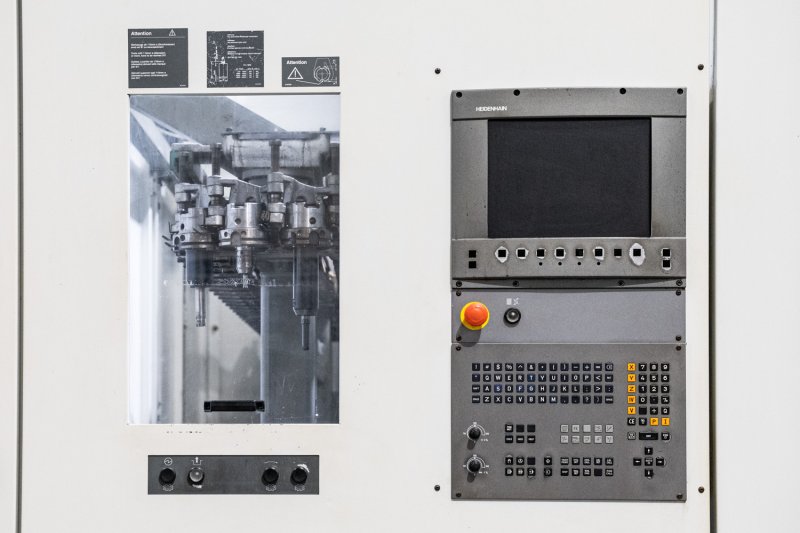

Numerical control: Heidenhain TNC 430
Axes
X-axis travel mm: 1800
Y-axis travel mm: 2000
Z-axis travel mm: 1100
C-axis angle: 360º (0.001)
B-axis angle: -7/+187º
Feed rate ...
Year of manufacture: 2001
Numerical control: Heidenhain TNC 430
Axes
X-axis travel mm: 1800
Y-axis travel mm: 2000
Z-axis travel mm: 1100
C-axis angle: 360º (0.001)
B-axis angle: -7/+187º
Feed rate m/min: 60/40/40
Rapid feed m/min: 60/40/40

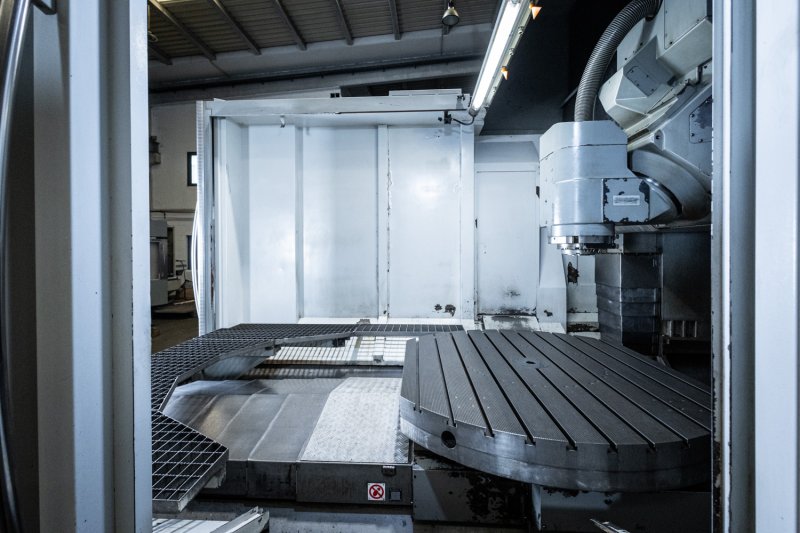

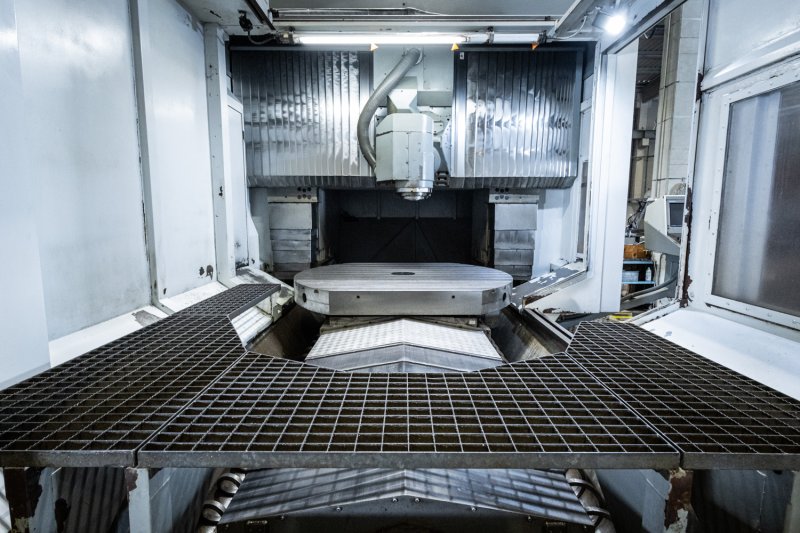

NC milling/turning table:
Table dimensions mm: Ø1700x1400
Maximum workpiece weight kg: 5000
Table rotation speed rpm: 200

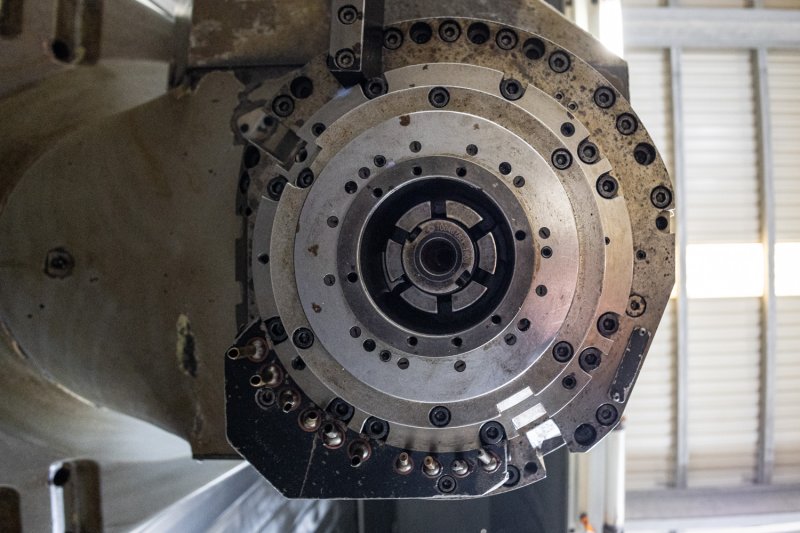

Spindle
Spindle rotation speed rpm: 10000
Power Spindle kW: 44/32 (40% ED/cont)
Maximum torque Nm: 288/187 (40/100% ED)
Coolant
Coolant via spindle center bar: 40
Tank capacity liters: 900

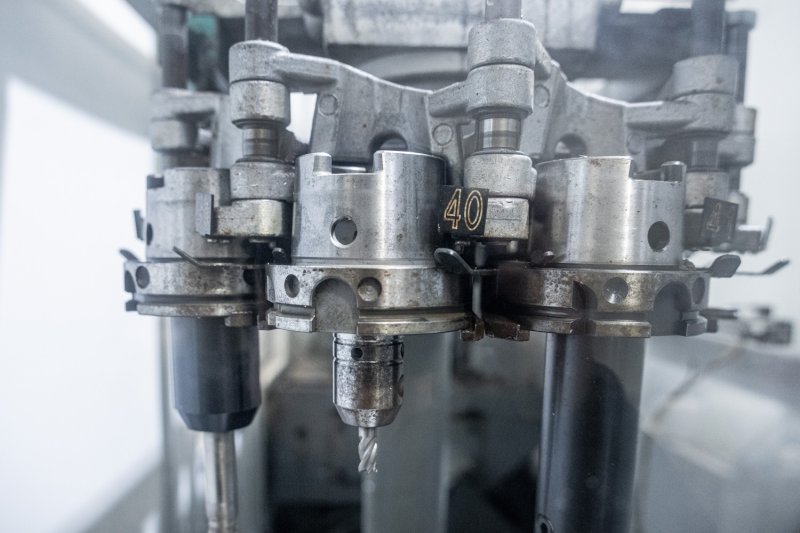

Tool magazine

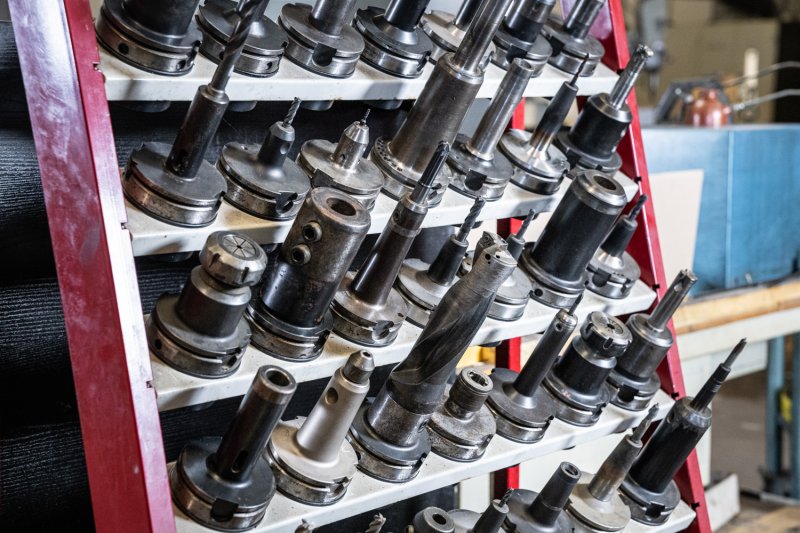

HSK-A 100 tool holder
Tool magazine positions: 60
Double gripper tool changer
Tool change time, chip-to-chip: 13.5 s
Equipment
Electronic handwheel
Chip conveyor
Infrared probe
Internal cooling lubricant supply (via center)
Inspection windows with rotating device
Wash gun
4 operating modes
Tool integrity monitor
Working time
Powered: 10356
Spindle Working: 6223
Main machine dimensions / weight
Length mm: 7900
Width mm: 8800
Height mm: 4200
