MAS VOM 50
- Condition: used
- published: 06/03/2026
- 26IND48731
Technical data
- Condition: used
- Year: undefined
- Drilling capacity : 41/50 mm
- Outreach : > 1600 mm
Description

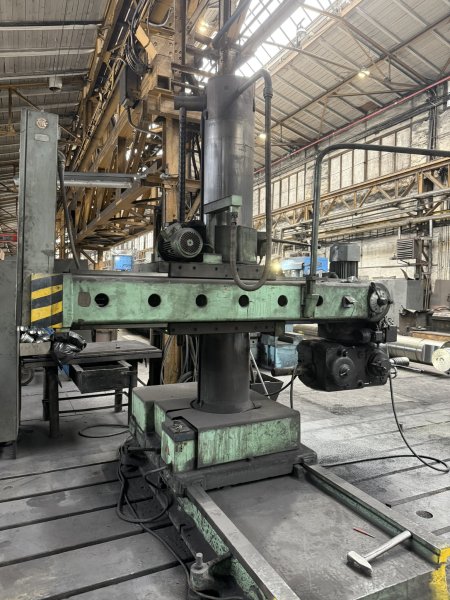

MAS VOM 50 TRANSPORTABLE UNIVERSAL DRILL
Maximum working diameter 50 mm.
Maximum/minimum distance between spindle center and column 2,070/1,170 mm.
Column travel on the bed 1,200 mm.
Vertical arm tra ...
MAS VOM 50 TRANSPORTABLE UNIVERSAL DRILL
Maximum working diameter 50 mm.
Maximum/minimum distance between spindle center and column 2,070/1,170 mm.
Column travel on the bed 1,200 mm.
Vertical arm travel 1,250 mm.
Transverse arm travel 900 mm.
Column diameter 400 mm.
Spindle diameter - CM 5; 75 mm.
Spindle stroke 350 mm.
Spindle speed - No. 15; 16 - 800 rpm.
Spindle power 4 kW.
Total weight 6,600 kg.
Complete with:
- double motorized rotation of the spindle head 360° and +/- 90°
