DEMM sri 180
- Condition: used
- published: 06/03/2026
- 26IND48732
Technical data
- Condition: used
- Year: undefined
Description

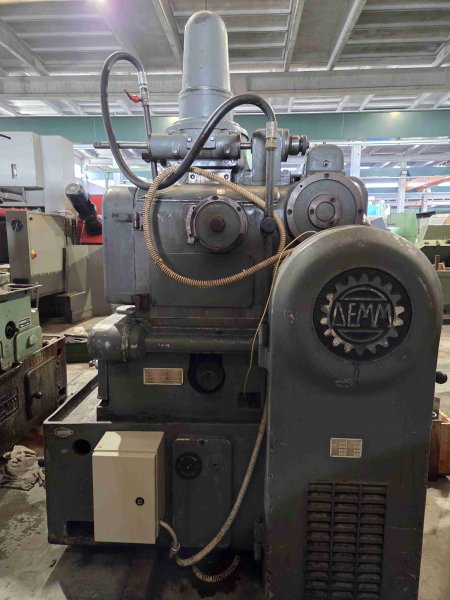

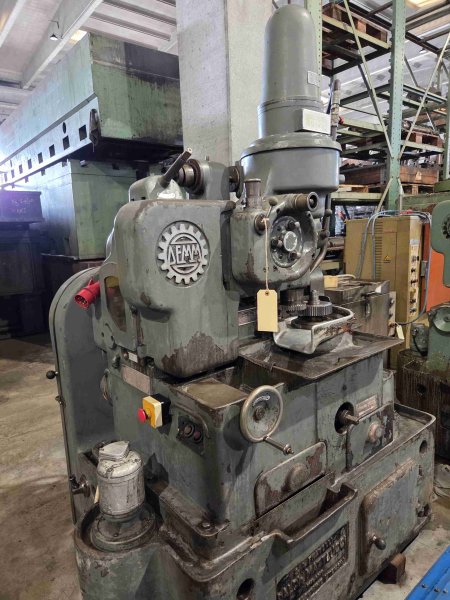

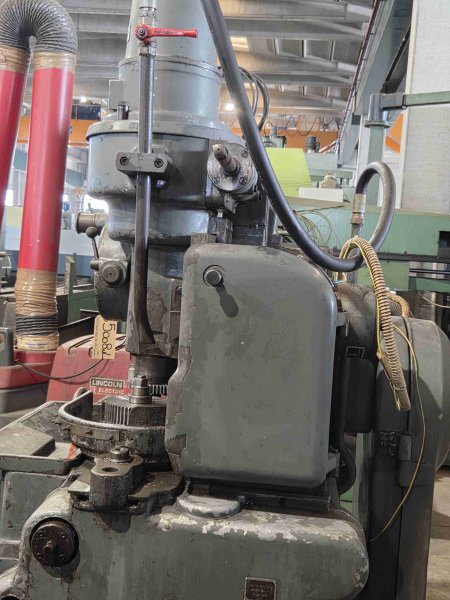

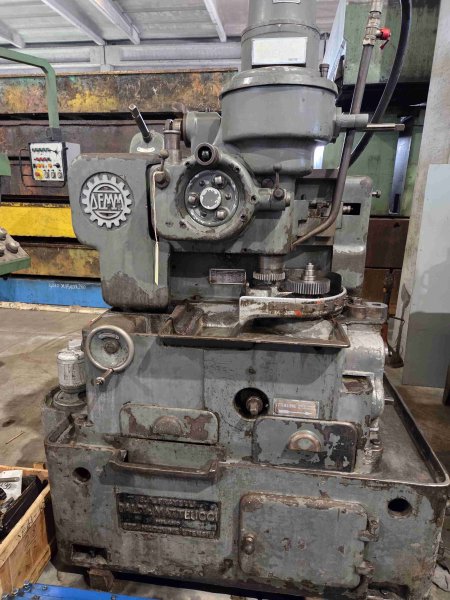

DEMM SRI 180 HAMMER GEAR CUTTING MACHINE
Max. external working diameter 180/235 mm.
Max. internal working diameter 150 mm.
Table diameter 139.75 mm.
Table hole diameter 39 mm.
Max. module 4.5 mm.
Max. ...
DEMM SRI 180 HAMMER GEAR CUTTING MACHINE
Max. external working diameter 180/235 mm.
Max. internal working diameter 150 mm.
Table diameter 139.75 mm.
Table hole diameter 39 mm.
Max. module 4.5 mm.
Max. tooth width 50 mm.
Max. working height 107 mm.
Max. passage diameter 240 mm.
Max. helical toothing angle 45°
Tool spindle diameter 85 mm.
Strokes per minute 147 - 464
Main motor power 2.5 hp.
Total weight 2,350 kg.
Complete with:

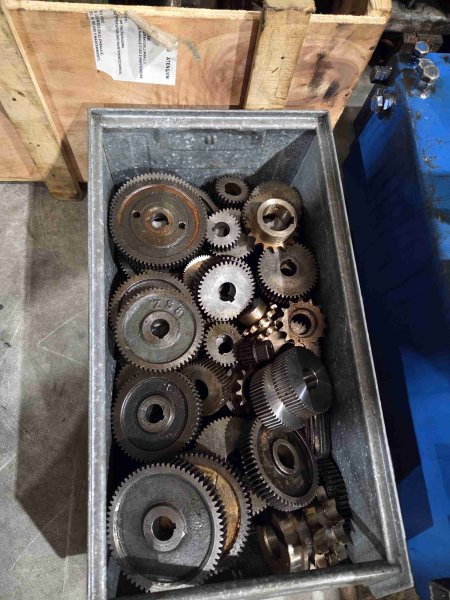

- gears
