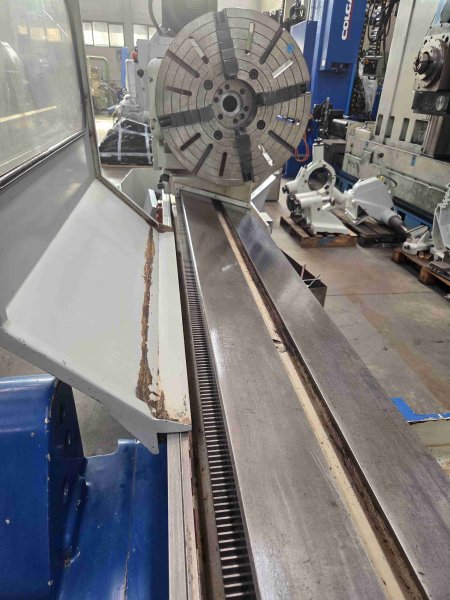

TOS BUA 63/2000 1971
- Condition: used
- published: 30/04/2026
- 26IND48768
Technical data
- Condition: used
- Year: 1971
Description

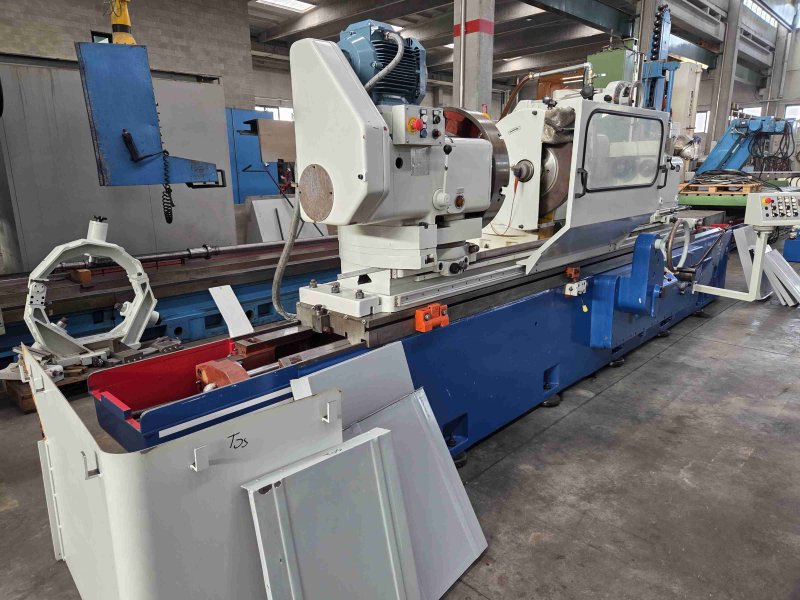

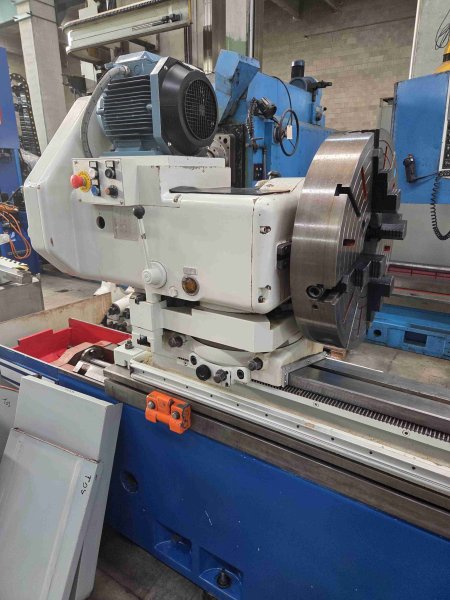

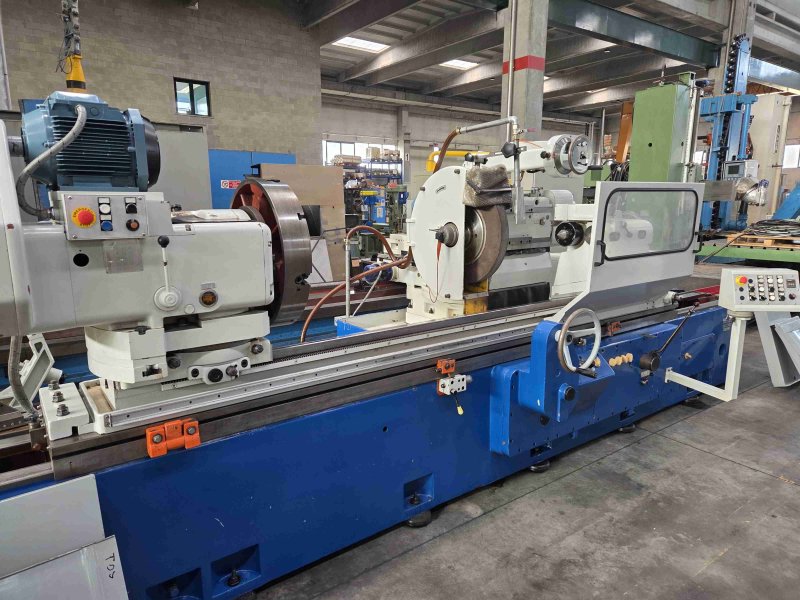

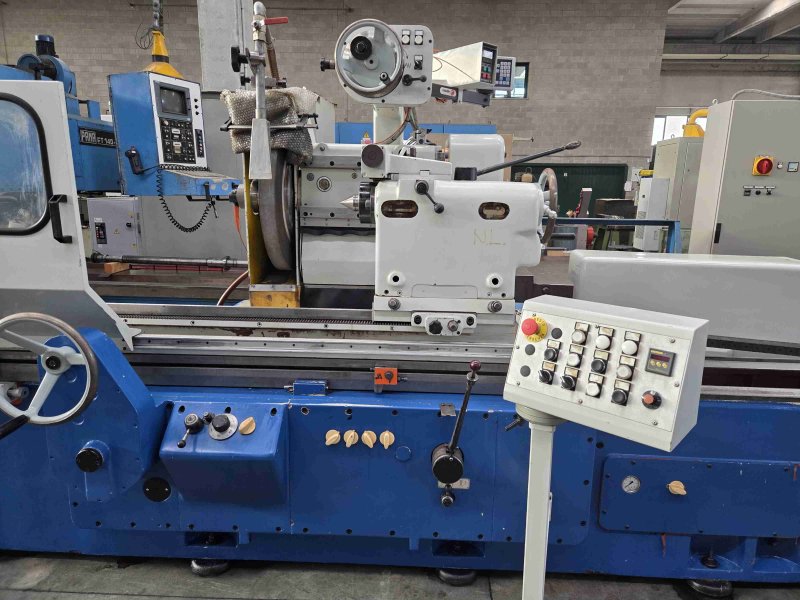

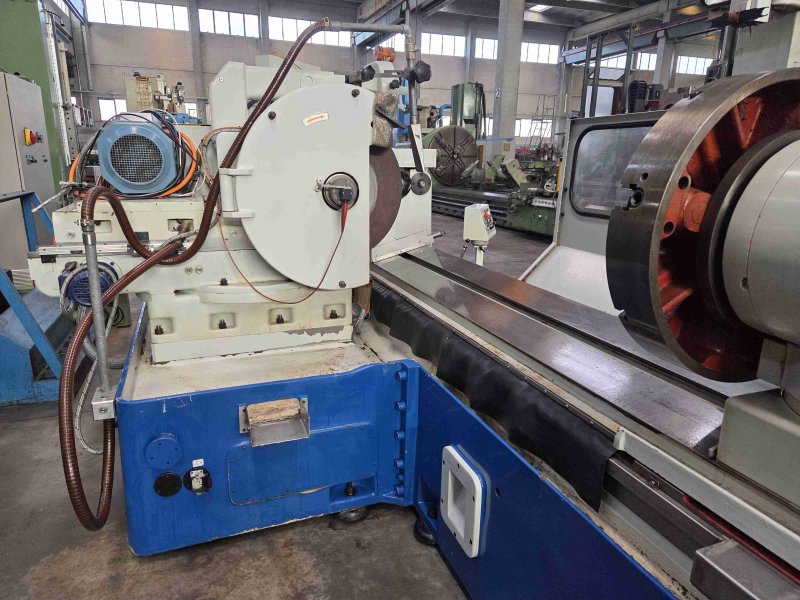

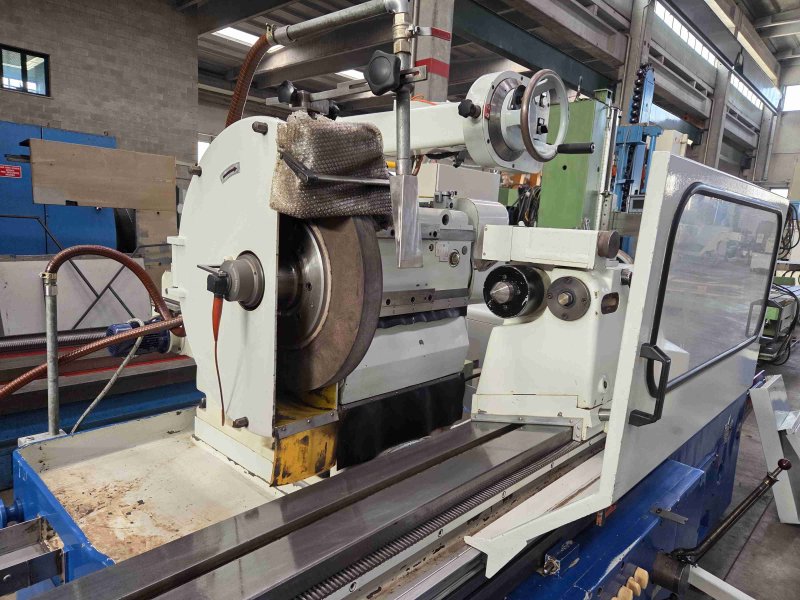

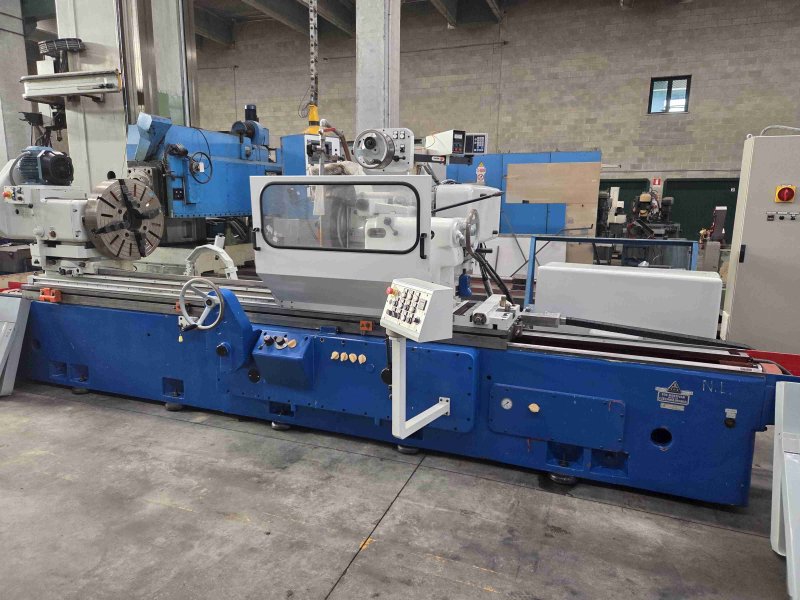

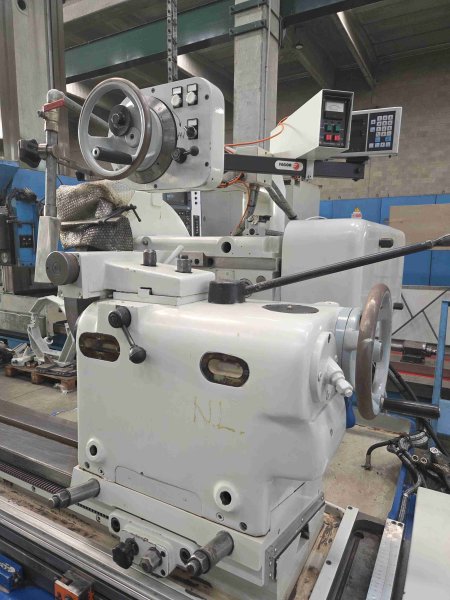

TOS BUA 63 UNIVERSAL GRINDING MACHINE
Height of centers: 410 mm.
Distance between centers: 2,000 mm.
Max. grinding diameter: 800 mm.
Load capacity between centers: 1,000 kg.
Grinding wheel dimensions: ...
TOS BUA 63 UNIVERSAL GRINDING MACHINE
Height of centers: 410 mm.
Distance between centers: 2,000 mm.
Max. grinding diameter: 800 mm.
Load capacity between centers: 1,000 kg.
Grinding wheel dimensions: 800 x 100 x 305 mm.
Grinding wheel motor power: 22 kW.
Grinding wheel speed: 840 - 935 rpm.
Workpiece spindle speed: No. 12; 9 - 156 rpm.
Table speed: 0.05 - 4.5 m/min.
Table tilt: 6° 30'
Max. workhead orientation: 90°
Max. Grinding head +/- 30°
Total weight 13,500 kg
Year of construction/overhaul 1971/2007
Complete with:
- Indoor unit
- Display
- 1 platform Ø 630 mm
- 2 closed steady rests
- 2 open steady rests
- Dressing tools
- Dynamic wheel balancer
- Various flanges and grinding wheels
- Tank with filter
- Safety guards
