BRAGONZI 65/110 U
- Condition: used
- published: 30/04/2026
- 26IND48776
Technical data
- Condition: used
- Year: undefined
- Mandrel diameter: 0/100 mm
- X-axis travel: 0/1000 mm
- Y-axis stroke: 0/1000 mm
Description

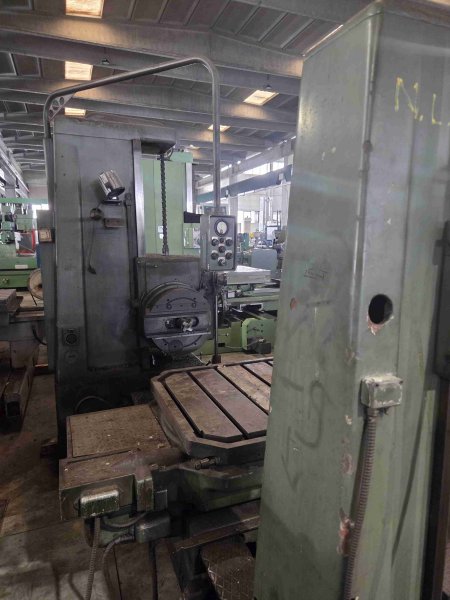

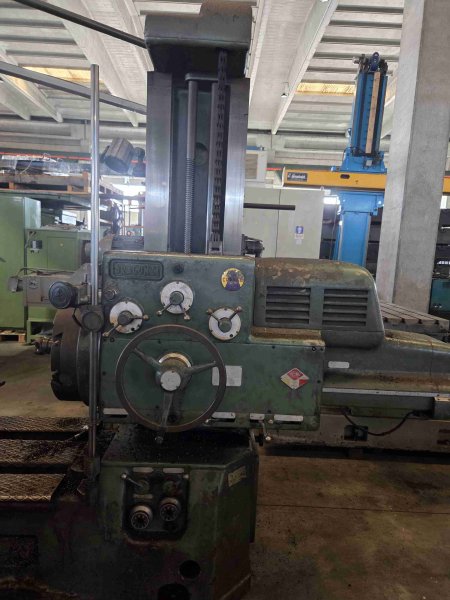

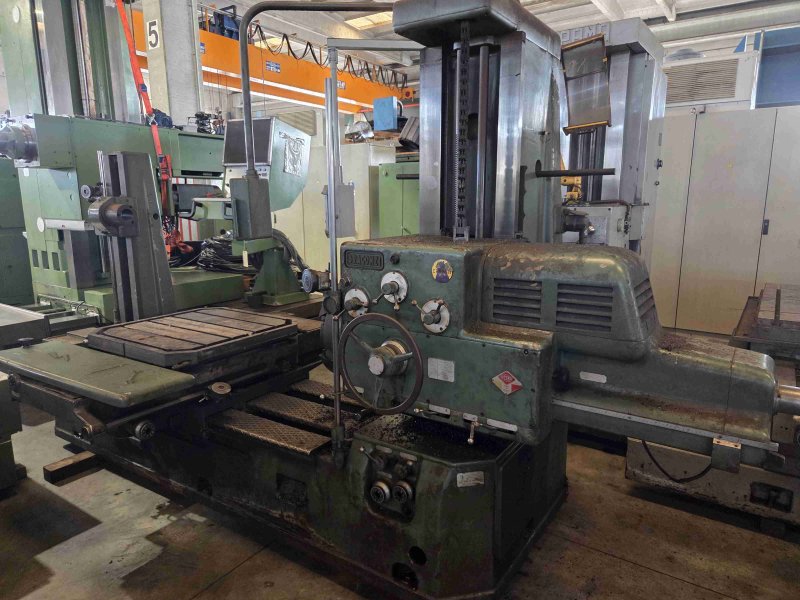

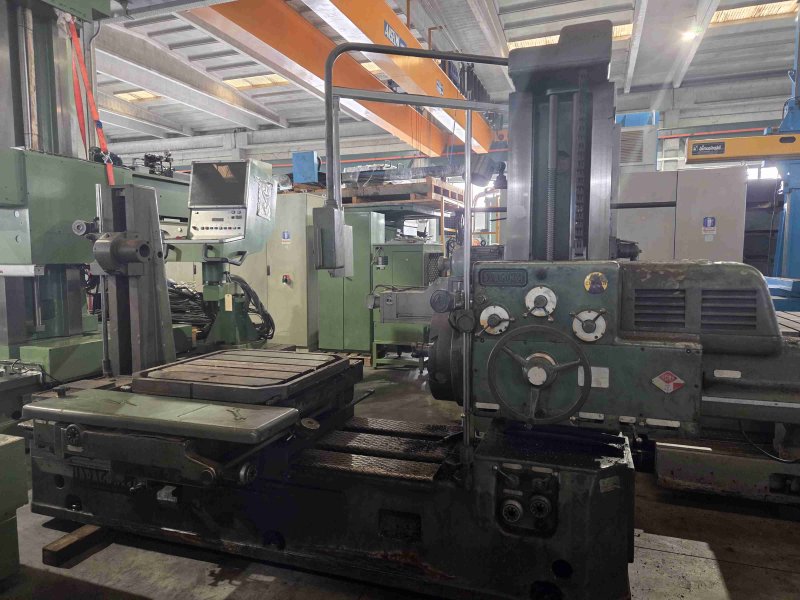

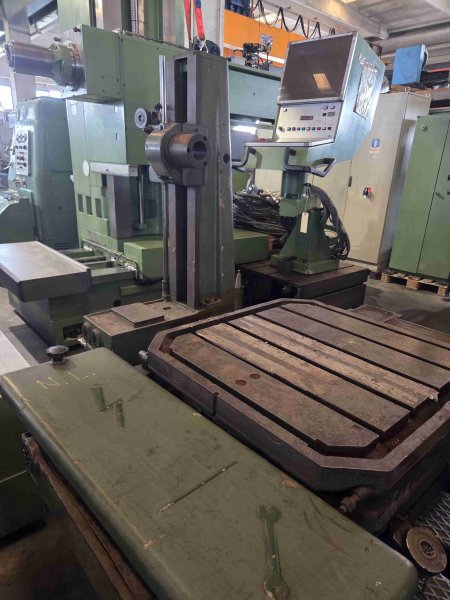

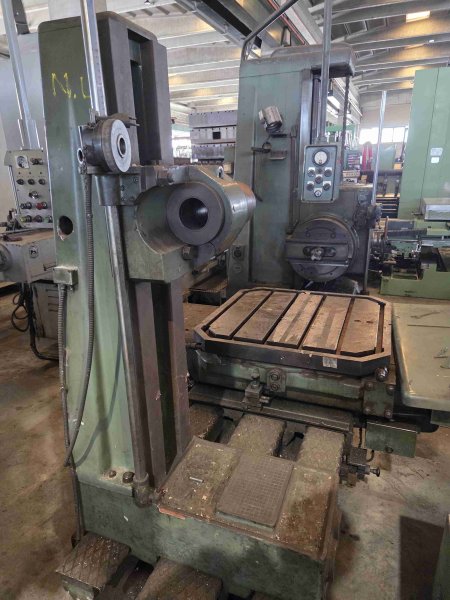

BRAGONZI 65/110 U TABLE BORING MACHINE
Spindle Ø - C.M. 5; 65 mm.
Table cross-travel (X) 750 mm.
Table longitudinal travel (W) 1,000 mm.
Head vertical travel (Y) 750 mm.
Spindle travel (Z) 550 mm.
Ta ...
BRAGONZI 65/110 U TABLE BORING MACHINE
Spindle Ø - C.M. 5; 65 mm.
Table cross-travel (X) 750 mm.
Table longitudinal travel (W) 1,000 mm.
Head vertical travel (Y) 750 mm.
Spindle travel (Z) 550 mm.
Table 800 x 800 mm.
Spindle motor power 7.5 hp.
Spindle speed - No. 12; 16 - 1,400 rpm.
Total weight 5.5 tons.
Complete with:

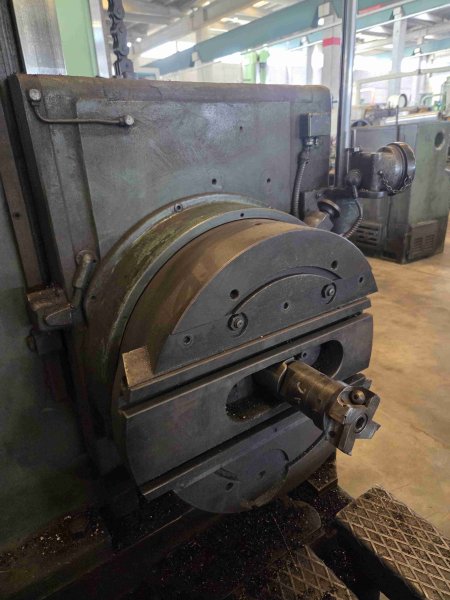

- Facing platform Ø 420 mm.
- Steady rest
