BREDA r 1580 mp
- Condition: used
- published: 19/03/2026
- 26IND48782
Technical data
- Condition: used
- Year: undefined
- Drilling capacity : > 50 mm
- Outreach : > 1600 mm
Description

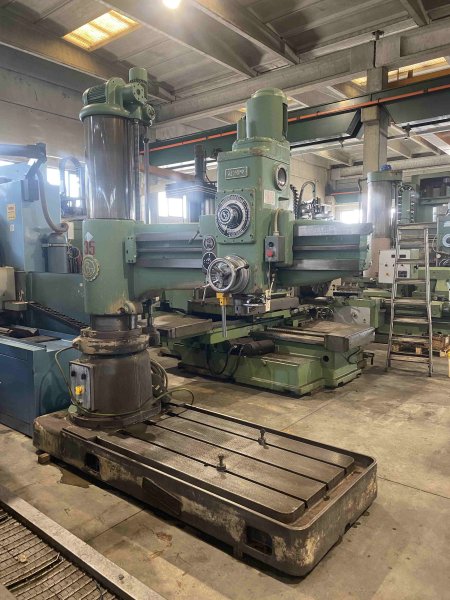

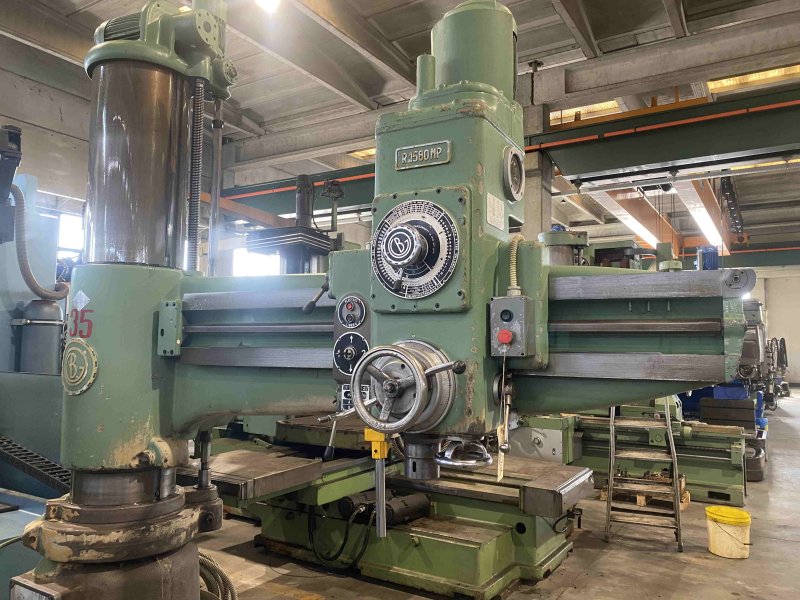

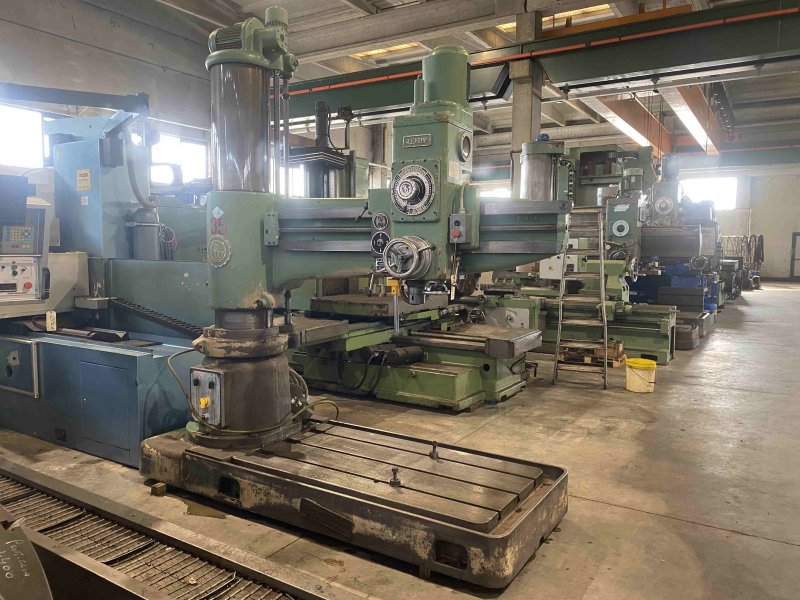

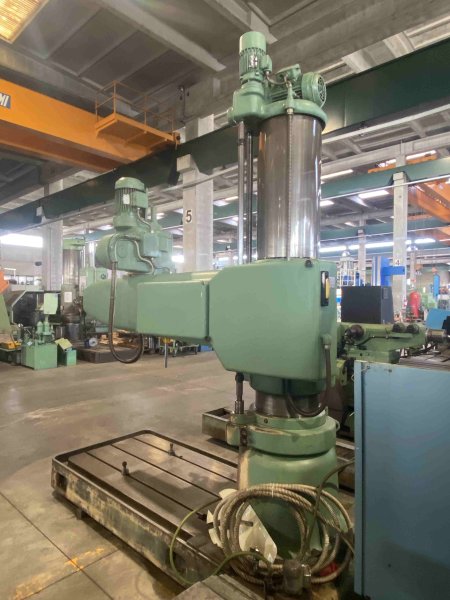

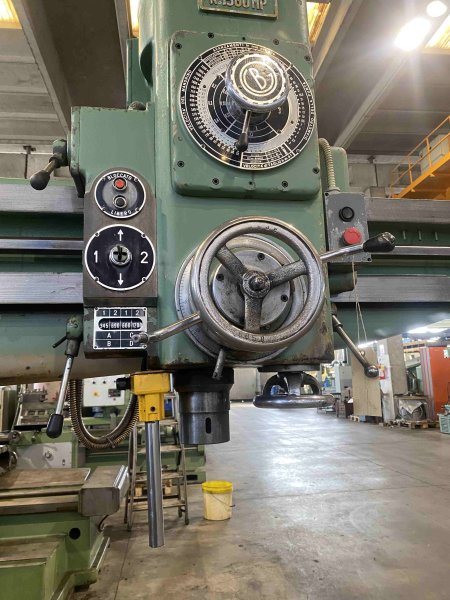

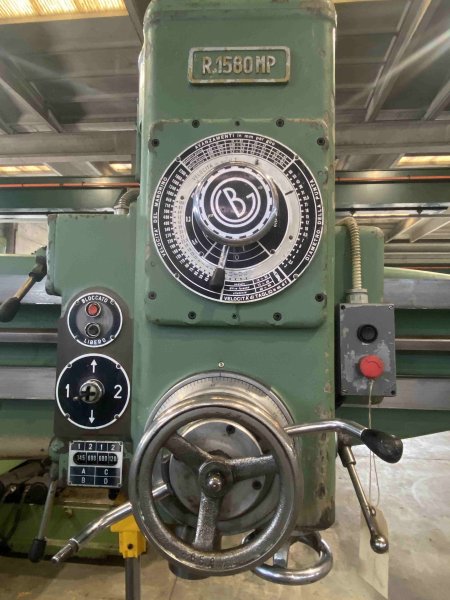

BREDA R 1580 MP RADIAL DRILLING MACHINE
Maximum working diameter 50/65 mm.
Maximum distance between spindle center and column 1,605 mm.
Min. drilling radius 425 mm.
Maximum drilling radius 1,785 mm.
M ...
BREDA R 1580 MP RADIAL DRILLING MACHINE
Maximum working diameter 50/65 mm.
Maximum distance between spindle center and column 1,605 mm.
Min. drilling radius 425 mm.
Maximum drilling radius 1,785 mm.
Min. distance between spindle nose and base 500 mm.
Maximum distance between spindle nose and base 1,635 mm.
Spindle diameter - CM 5; 70 mm.
Spindle stroke 310 mm.
Spindle speed - No. 24; 30 - 2,200 rpm.
Spindle motor power 5.5 hp.
Column diameter 360 mm.
Total weight 3,800 kg.
