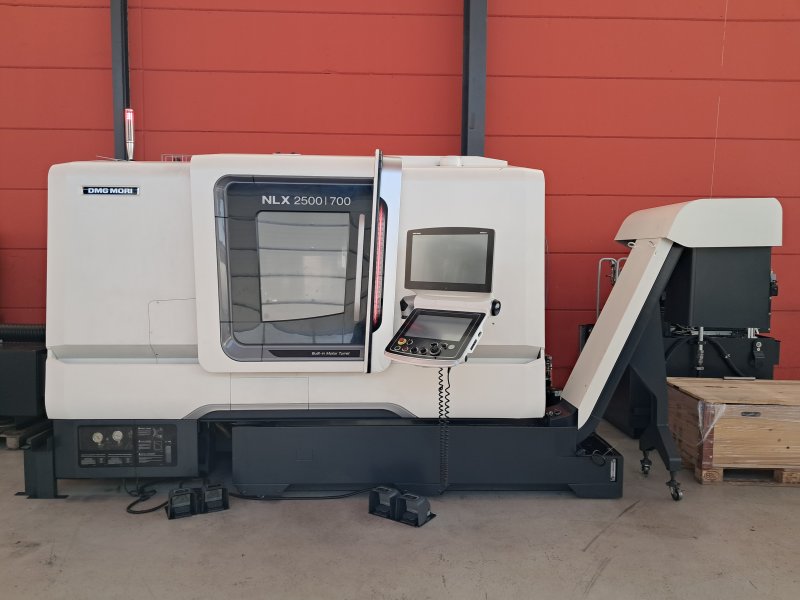

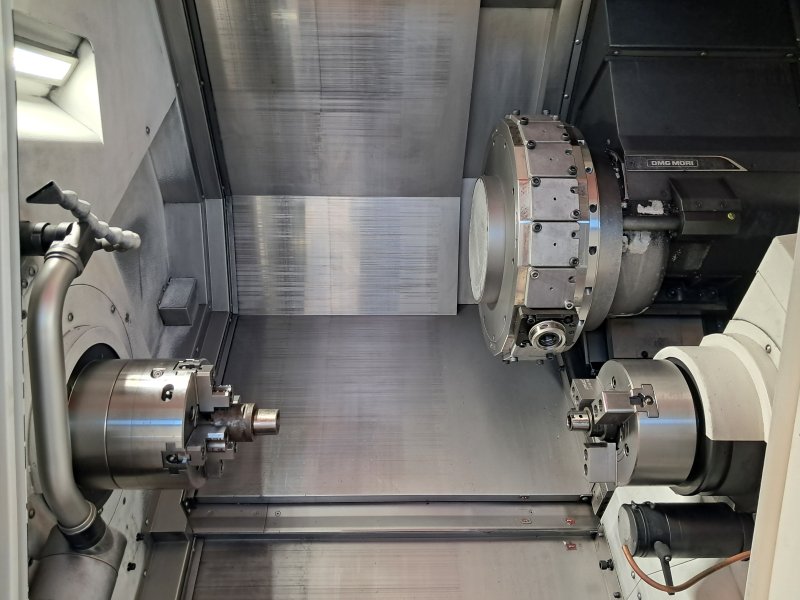

DMG MORI NLX 2500 SY 700 2018
- Condition: used
- published: 23/03/2026
- 26IND48787
Technical data
- Condition: used
- Year: 2018
Description

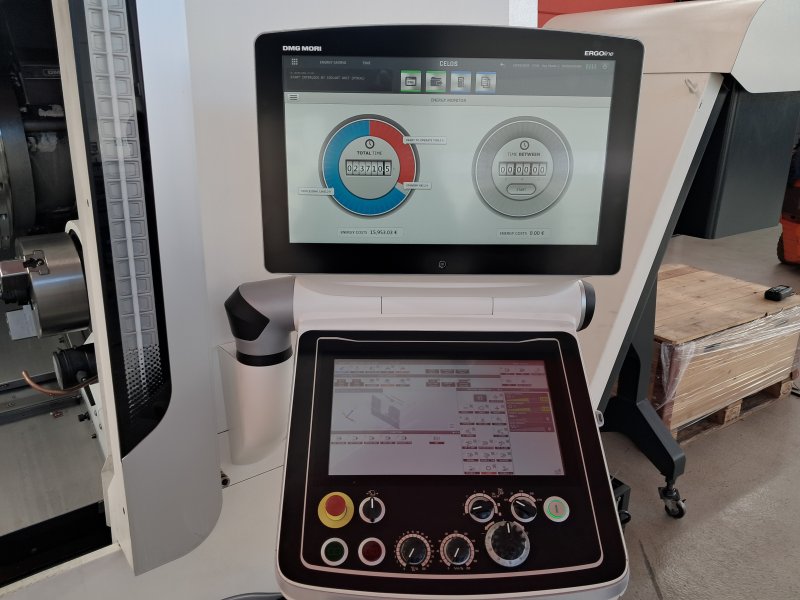

Numerical control: Mitsubishi M730UM (CELOS - ERGOline Touch)
Capacity
X-axis travel mm: 260
Y-axis travel mm: ±50
Z-axis travel mm: 795
Turning length mm: 705
Swing diameter mm: ø: 366
Swing diamet ...
Numerical control: Mitsubishi M730UM (CELOS - ERGOline Touch)
Capacity
X-axis travel mm: 260
Y-axis travel mm: ±50
Z-axis travel mm: 795
Turning length mm: 705
Swing diameter mm: ø: 366
Swing diameter mm: ø: 920
Swing diameter on slide (axis) mm: 740
Bar passage mm: 80
Tool magazine
Number of positions: 20
Tool holder type: BMT40

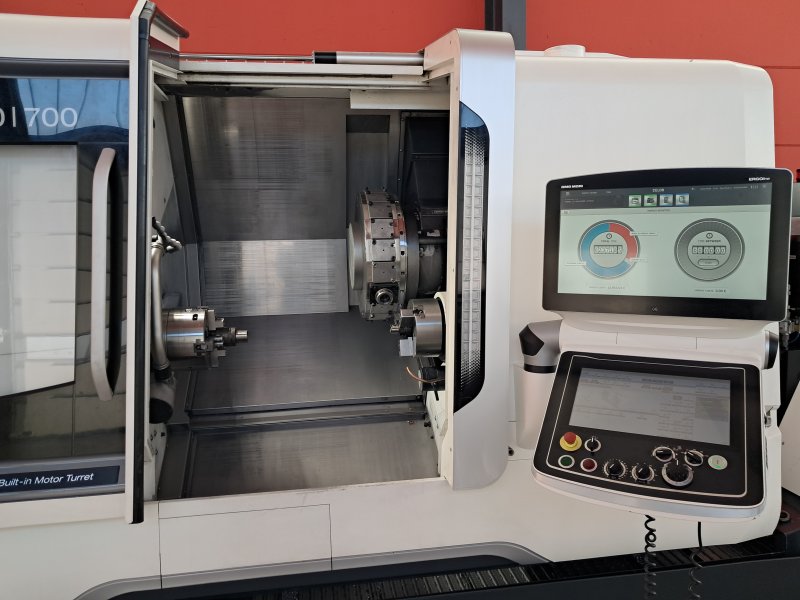

Upper turret
Number of tool positions: 20
Live tools, rpm: 10,000
Live tools, power kW: 5.5/4.9/4.2 (3 min/5 min) min/cont)
Rapid Feed Rate: 30

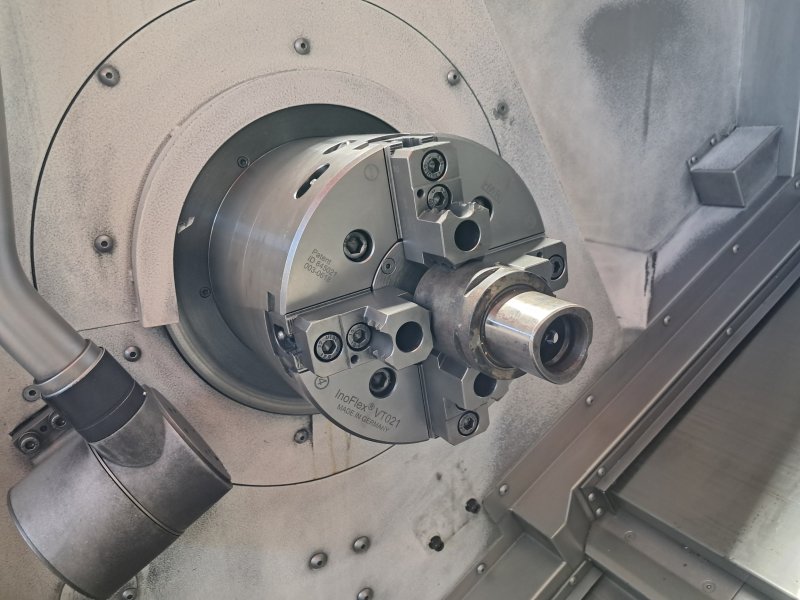

Main Spindle
Spindle Speed (rpm): 4,000
Spindle Power (kW): 18.5/18.5/15 (25% ED/50% ED/cont)
Maximum Torque (Nm): 49
Counter Spindle
Spindle Speed (rpm): 5,000
Spindle Power (kW): 11/7.5 (25% ED/cont)
Maximum Torque (Nm): 22
Counter Spindle Travel (mm): 734
Coolant System
Tank Capacity (liters): 366
Equipment
Electronic Handwheel
Chip Conveyor
Status Indicator Light
High Pressure Pump
Measuring Probe
Paper Belt Filter

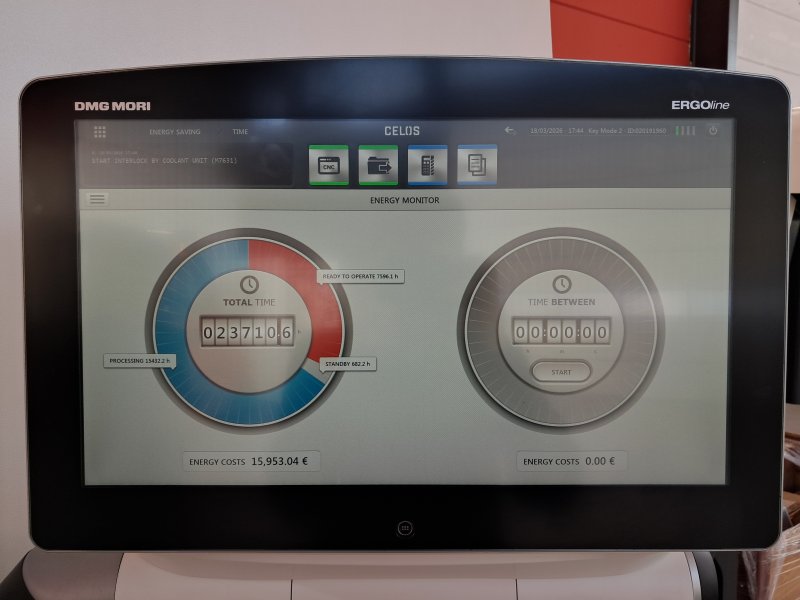

Working Time
Powered: 23,501
Cutting Time: 7,494
Nominal Power kVA: 48
Main Machine Dimensions / Weight
Length mm: 5,330
Width mm: 4,100
Height mm: 2,395
Weight kg: 8,360
