STANKOIMPORT 1550 H CNC
- Condition: used
- published: 24/03/2026
- 26IND48788
Technical data
- Condition: used
- Year: undefined
- Max working diameter : > 3000 mm
- Max working height : > 2000 mm
Description

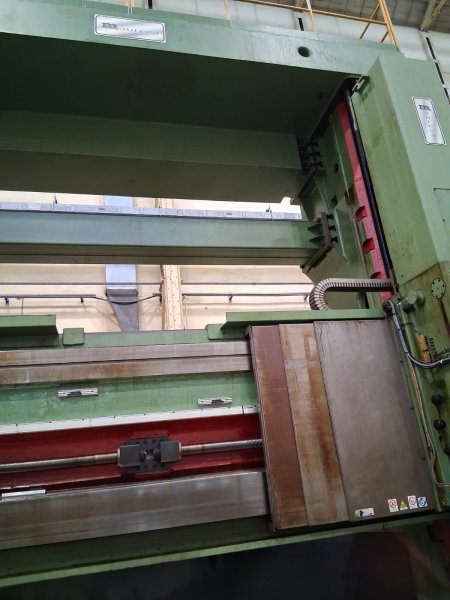

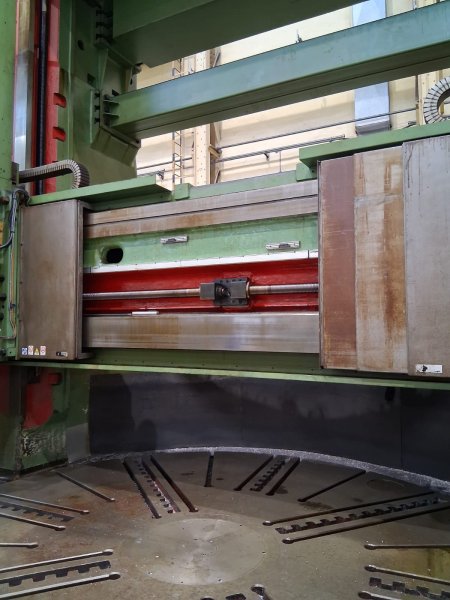

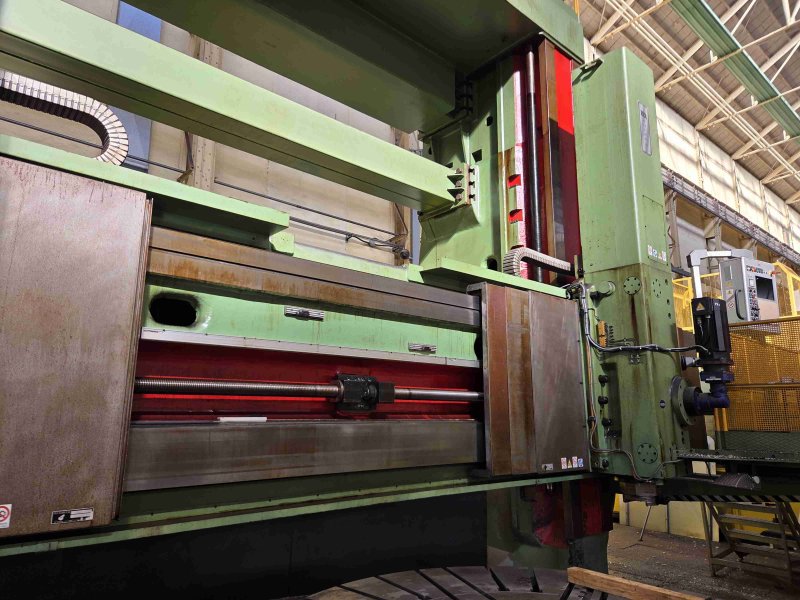

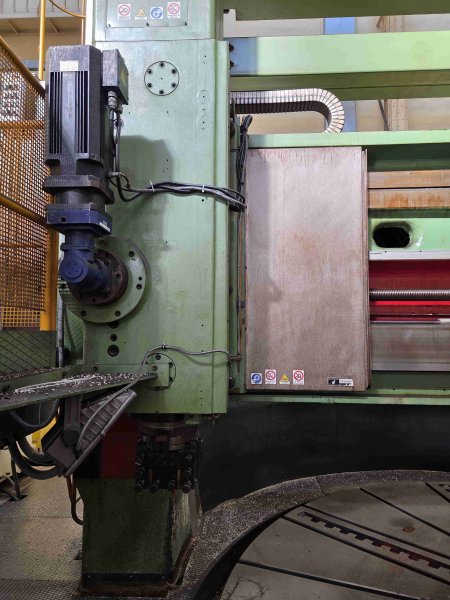

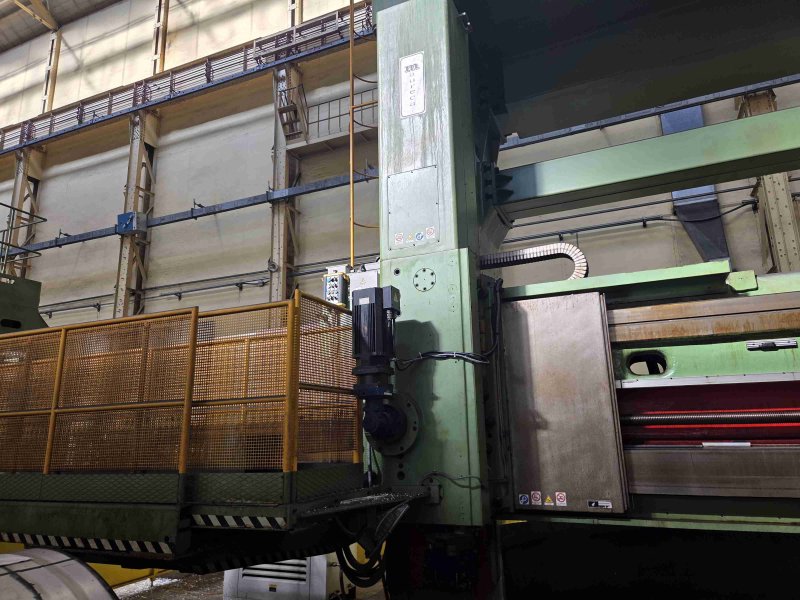

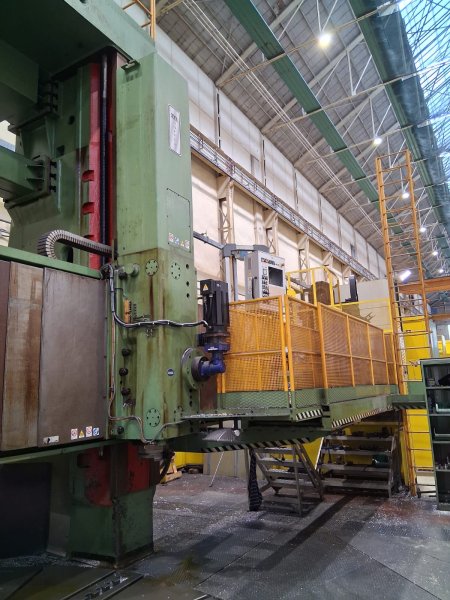

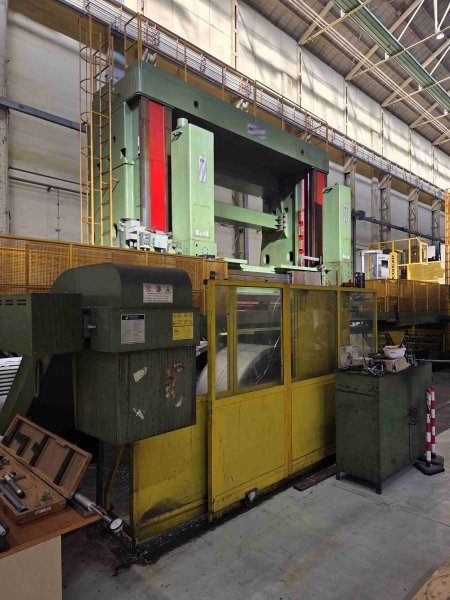

STANKOIMPORT 1550 H CNC VERTICAL LATHE
Table diameter: 4,500 mm
Maximum working diameter: 5,050 mm
Maximum allowable passage: 5,100 mm
Maximum turning height: 3,550 mm
Maximum height under crossbeam: ...
STANKOIMPORT 1550 H CNC VERTICAL LATHE
Table diameter: 4,500 mm
Maximum working diameter: 5,050 mm
Maximum allowable passage: 5,100 mm
Maximum turning height: 3,550 mm
Maximum height under crossbeam: 3,800 mm
Table capacity: 60 tons
Table motor power: 121 kW
Table rotation speed: 0-40 rpm
2 CNC vertical carriages:
- Vertical travel: 1,550 mm
- Crossbeam travel: 3,000 mm
Crossbeam travel: 3,340 mm
Vertical work feeds: 0-2,800 mm/min
Transverse work feed rates 0 ÷ 4,000 mm/min.
Total power consumption 210 kW.
Overall dimensions 11,400 x 6,600 x 9,400 mm.

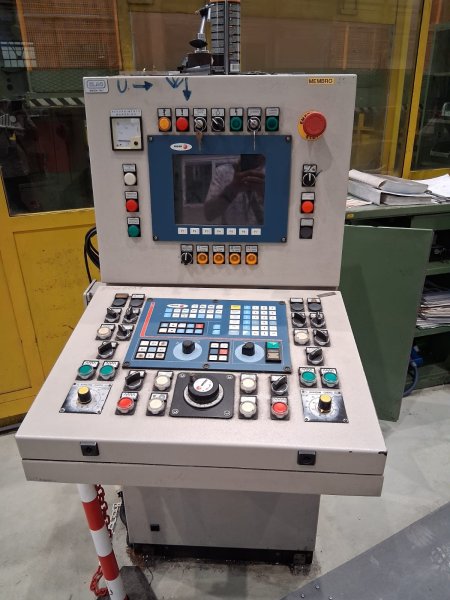

Fagor 8055 CNC - 4 axes
Total weight 170 tons
Reconditioned in 2004
Complete with:
- indexed crossbeam
- chip conveyor
