PBR TM 500 x 4000
- Condition: used
- published: 26/03/2026
- 26IND48793
Technical data
- Condition: used
- Year: undefined
- Distance between tips : 3001/5000 mm
- Tip height : 251/500 mm
Description

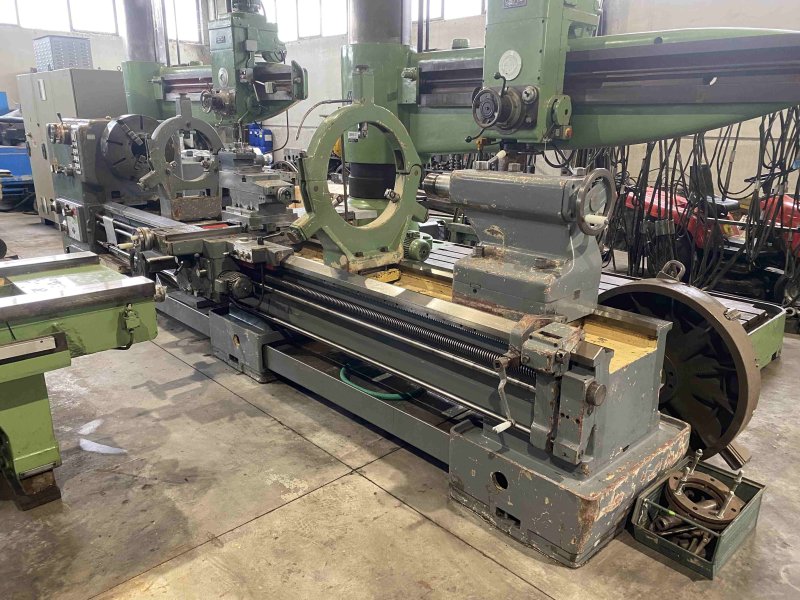

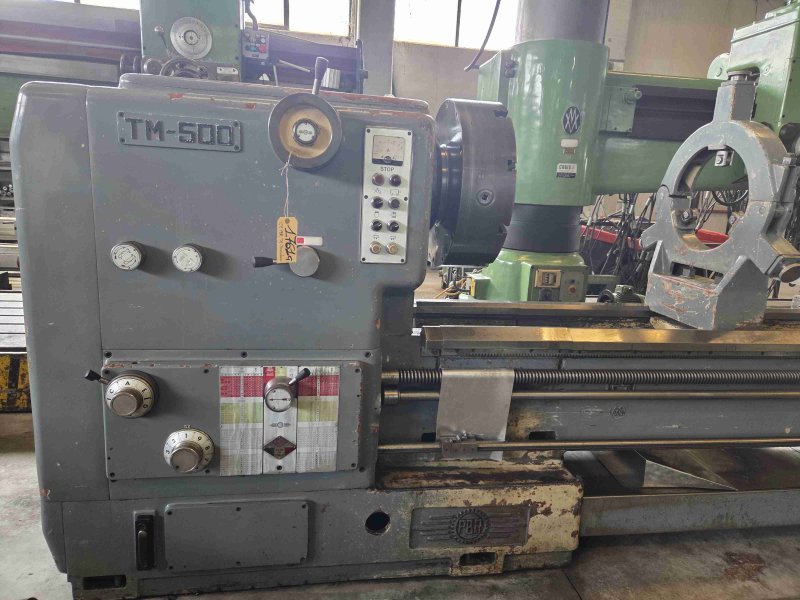

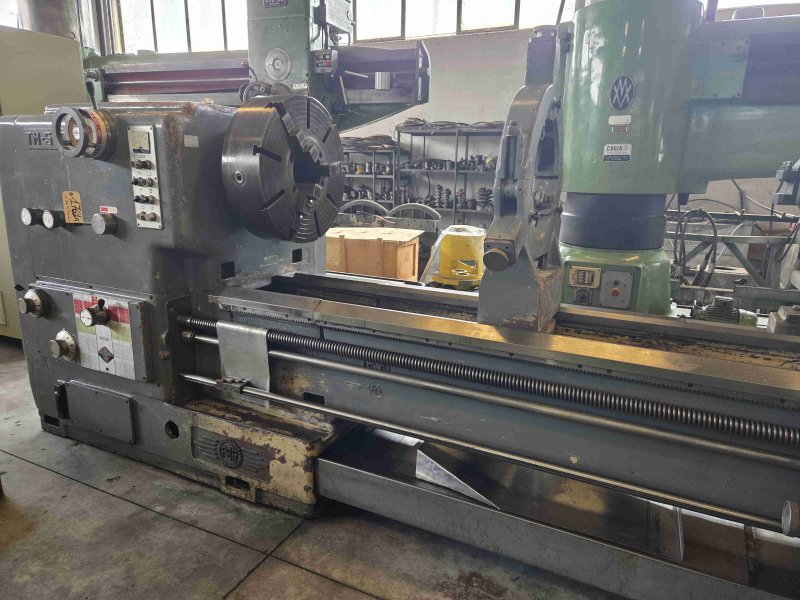

PBR TM 500 x 4000 PARALLEL LATHE
Distance between centers 4,000 mm.
Height of centers 500 mm.
Max. Ø on the bed 1,020 mm.

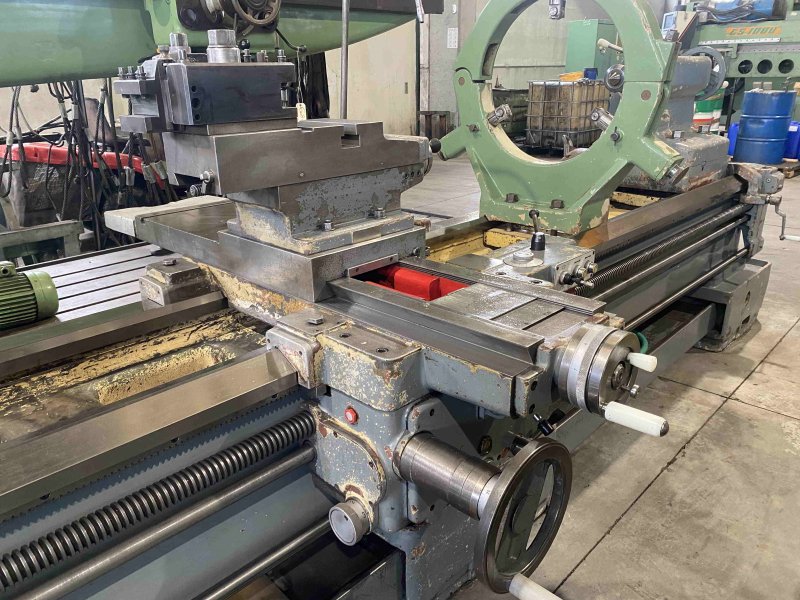

Max. Ø on the carriage 700 mm.
Max. Ø in the pocket 1,320 mm.
Pit length 43 ...
PBR TM 500 x 4000 PARALLEL LATHE
Distance between centers 4,000 mm.
Height of centers 500 mm.
Max. Ø on the bed 1,020 mm.
Max. Ø on the carriage 700 mm.
Max. Ø in the pocket 1,320 mm.
Pit length 432 mm.
Bed width 630 mm.
Spindle bore 150 mm.
Spindle speed - No. 24; 8 - 800 rpm.

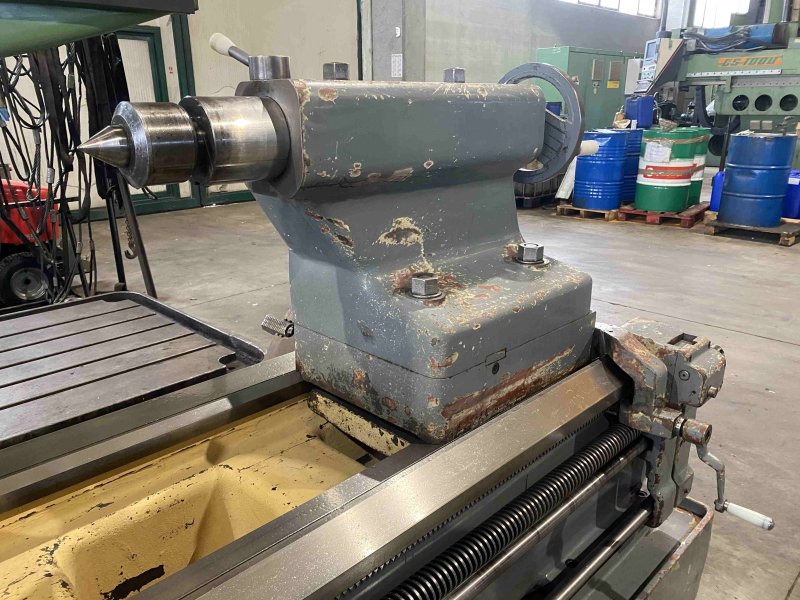

Tailstock quill diameter 120 mm.
Tailstock quill travel 300 mm.
Spindle motor power 25 hp.
Total weight 9,400 kg.
Complete with:

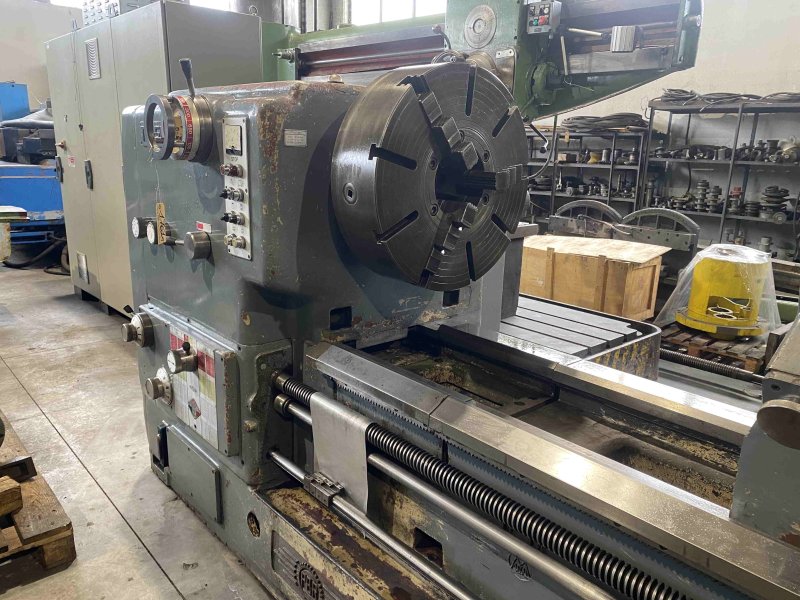

- n. 1 platform with 4 independent jaws Ø 900 mm.
- n. 1 self-centering Ø 600 mm.

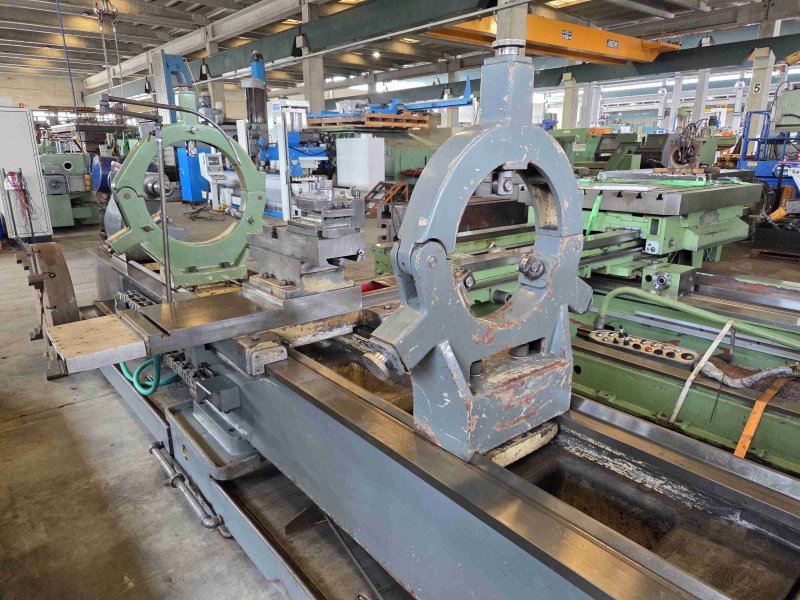

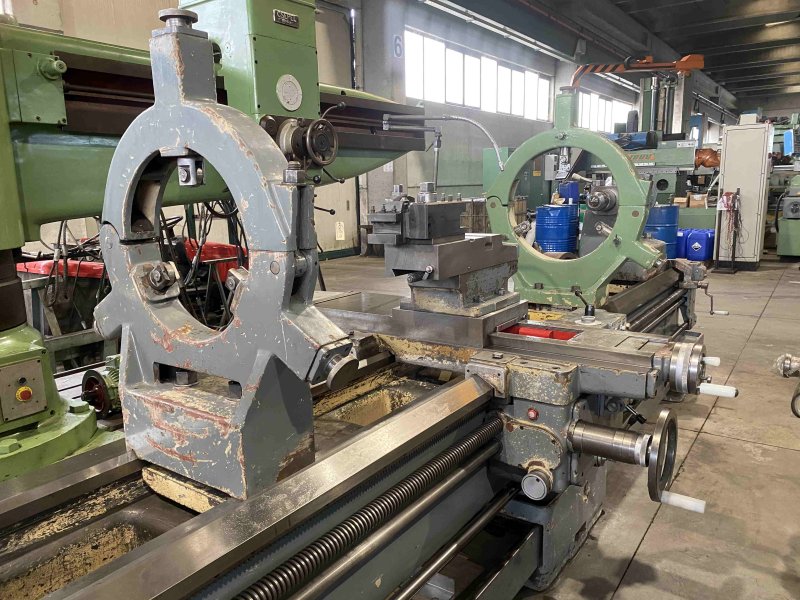

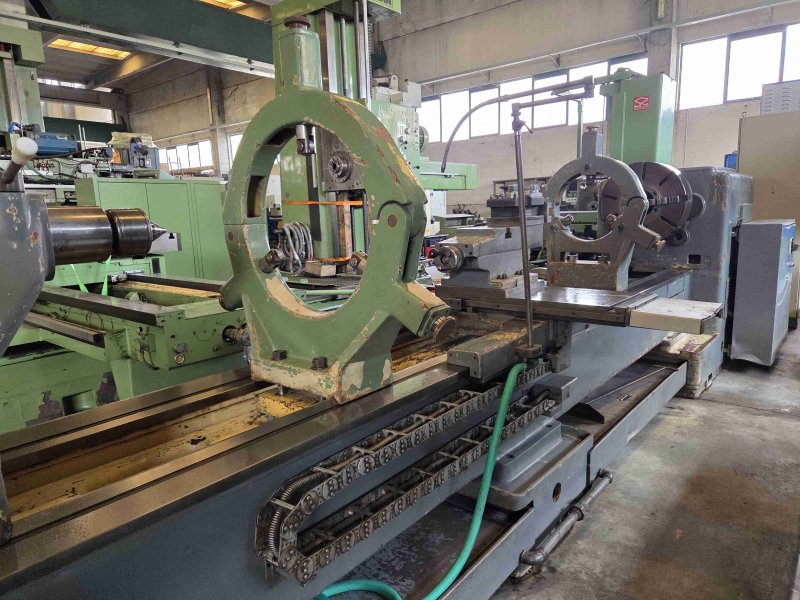

- n. 2 closed lunettes
