GIANA GFSC 12 CNC 2006
- Condition: used
- published: 30/03/2026
- 26IND48799
Technical data
- Condition: used
- Year: 2006
- Distance between tips : > 5000 mm
- Tip height : > 500 mm
Description

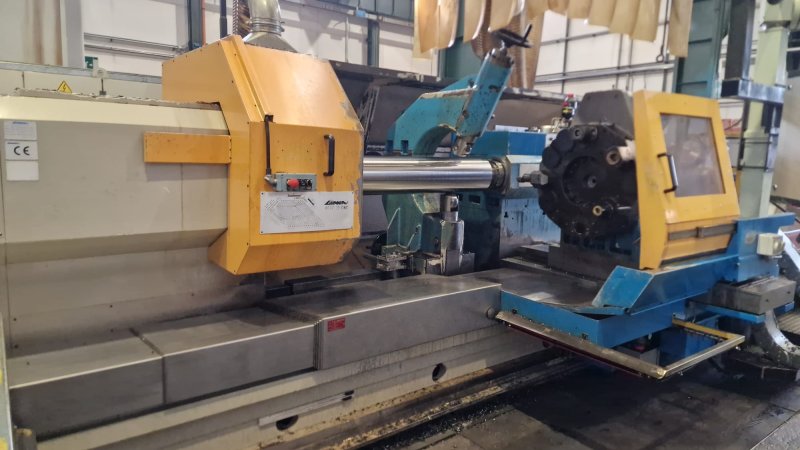

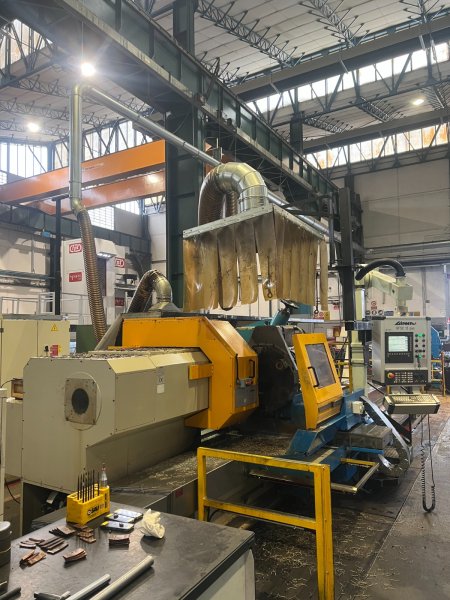

GIANA GFSC 12 CNC THREE-SIDED PARALLEL LATHE - 760 x 7000 mm
Height of centers: 760 mm
Distance between centers: 7,000 mm
Turning diameter over bed without bellows: 1,520 mm
Turning diameter over bed ...
GIANA GFSC 12 CNC THREE-SIDED PARALLEL LATHE - 760 x 7000 mm
Height of centers: 760 mm
Distance between centers: 7,000 mm
Turning diameter over bed without bellows: 1,520 mm
Turning diameter over bed with bellows: 1,320 mm
Turning diameter over carriage: 1,170 mm
Bed width: 1,250 mm
Load capacity between centers: 16,000 kg
Load capacity between centers (with 1 steady rest): 18,000 kg
Spindle motor power: 60 kW
Spindle speed: 2.2 ÷ 500 rpm
Spindle bore: 150 mm
Tailstock quill diameter: 220 mm
Tailstock quill stroke: 300 mm

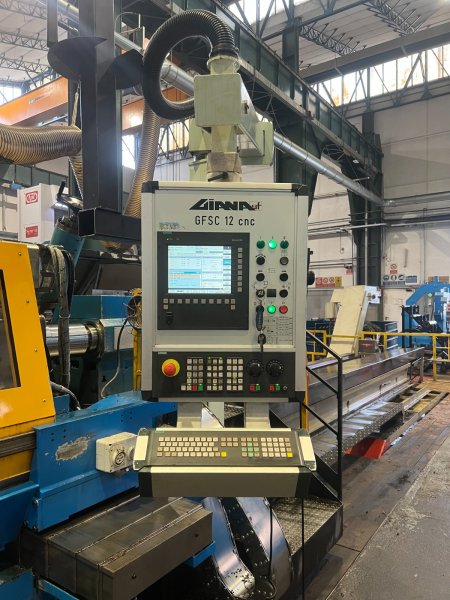

Siemens 840 D CNC
Total weight: 33 tons
Year of construction: 2006
Complete with:
- "C" axis
- Live tools
- 1 four-jaw chuck

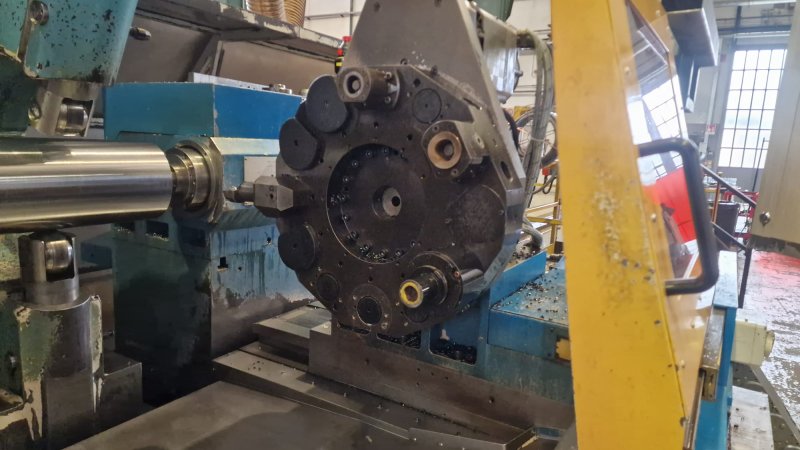

- 1 Baruffaldi TBMA 400 12-station turret
- 1 closed steady rest
- 1 "C" steady rest

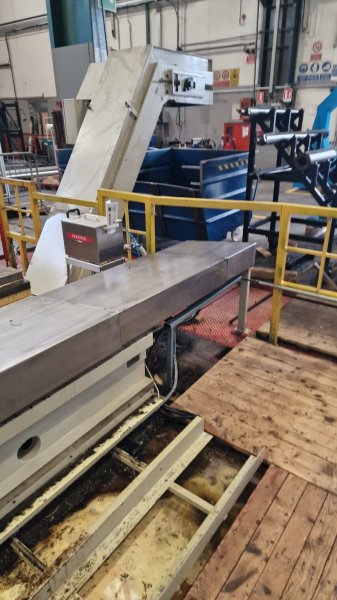

- Chip conveyor
- Safety guards
