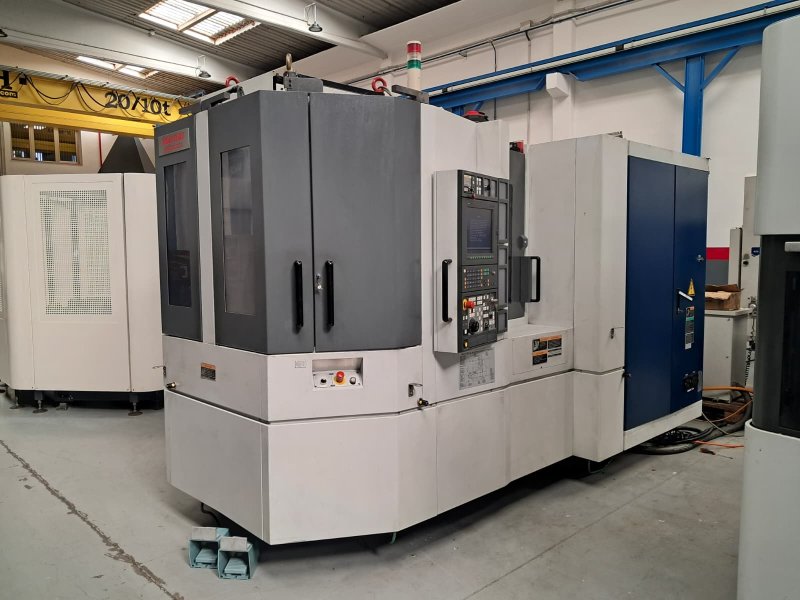

MORI SEIKI NH 4000 DCG 2004
- Condition: used
- published: 31/03/2026
- 26IND48802
Technical data
- Condition: used
- Year: 2004
Description

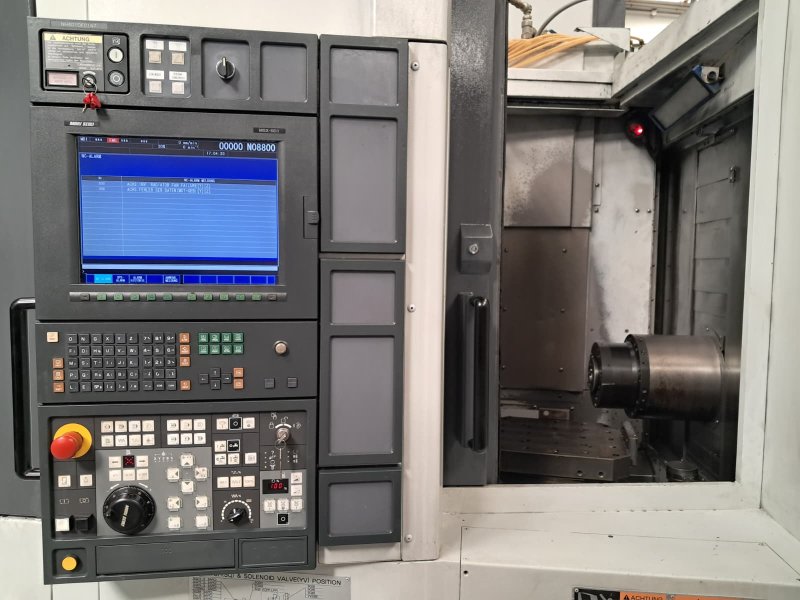

Numerical Control: FS-18IMB (MAPPS 2)
Axes
X-axis travel mm: 560
Y-axis travel mm: 560
Z-axis travel mm: 630
Rapid feed m/min: 50
Rotary Worktable (4th axis): FULL 4TH AXIS ROTARY TABLE

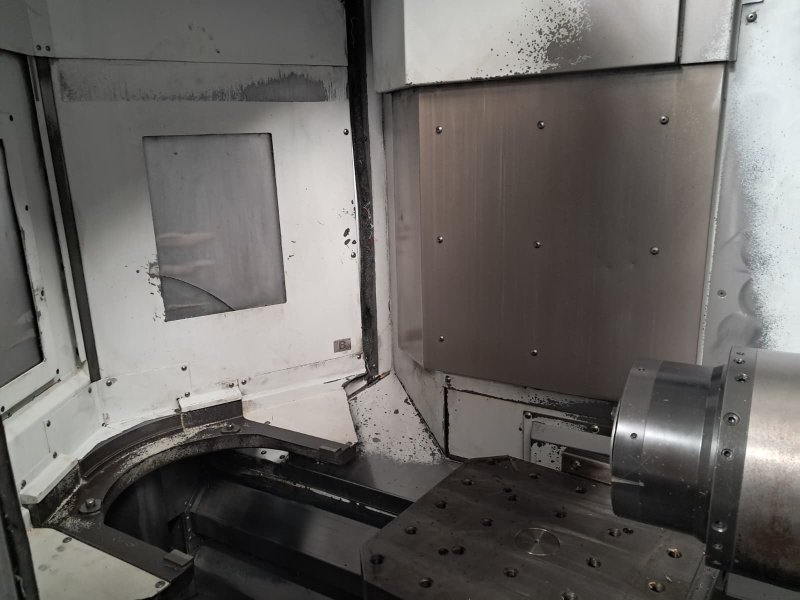

Work Area
Work ...
Numerical Control: FS-18IMB (MAPPS 2)
Axes
X-axis travel mm: 560
Y-axis travel mm: 560
Z-axis travel mm: 630
Rapid feed m/min: 50
Rotary Worktable (4th axis): FULL 4TH AXIS ROTARY TABLE
Work Area
Work Area: 3
Table Size mm: 400
Maximum Workpiece Size mm: 560 x 800
Maximum Workpiece Weight kg: 300
Pallet Change Time (APC) s: 6

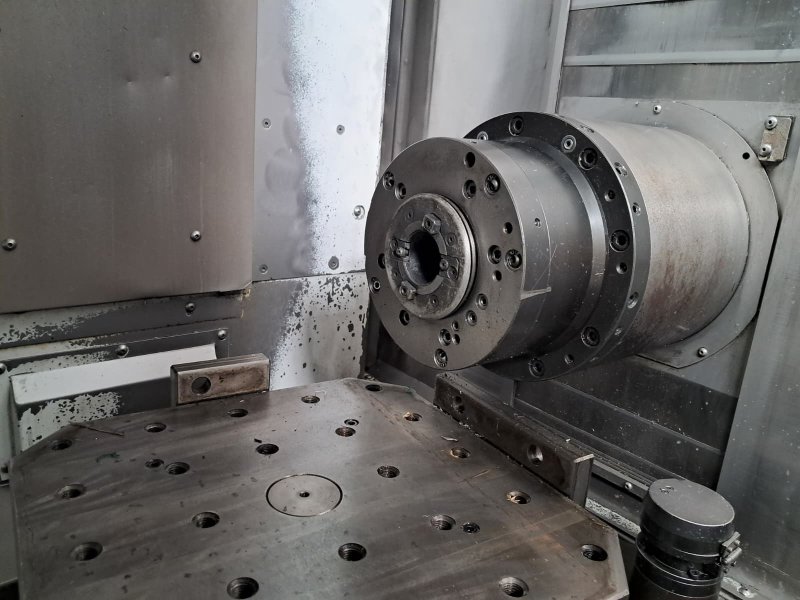

Spindle
Spindle Rotation Speed rpm: 14,000
Spindle Power kW: 18.5/11 KW
Maximum Torque Nm: 120 Nm (10% ED)

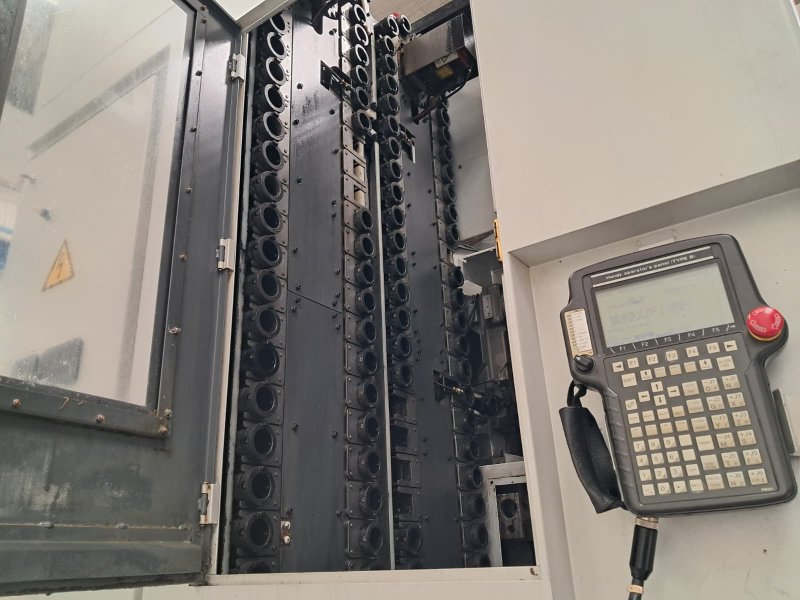

Tool magazine
Tool holder: BT-40
Tool magazine positions: 120
With adjacent tool positions free mm: 140
With adjacent tool positions occupied mm: 70
Maximum tool length mm: 400
Maximum tool weight kg: 8
Tool change time s: 0.9
Tool change time, chip-to-chip s: 2.8
Equipment
Chip conveyor
Status indicator light
4th axis
Provision for internal cooling (40/80 bar)
RENISHAW OMP60
CE

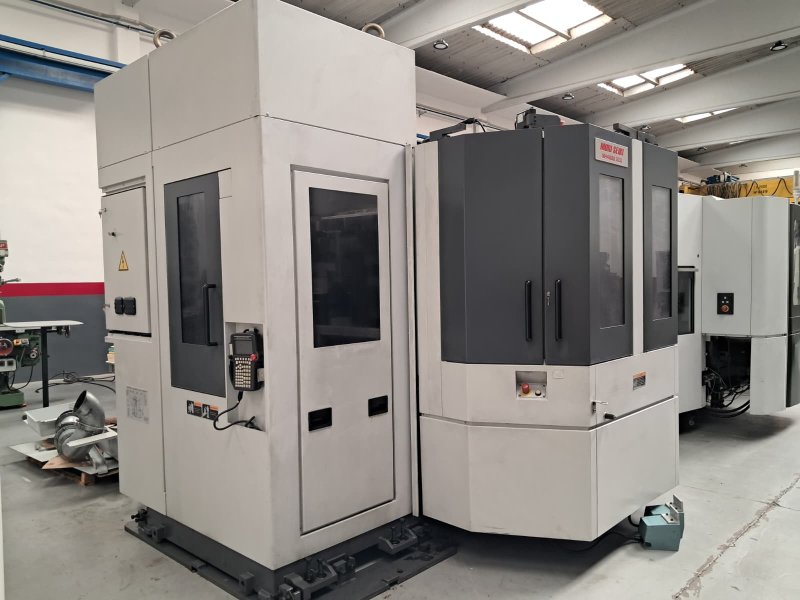

Round pallet storage
Measuring system (worktable)
Coolant
Tank capacity liters: 500
High pressure bar: 70

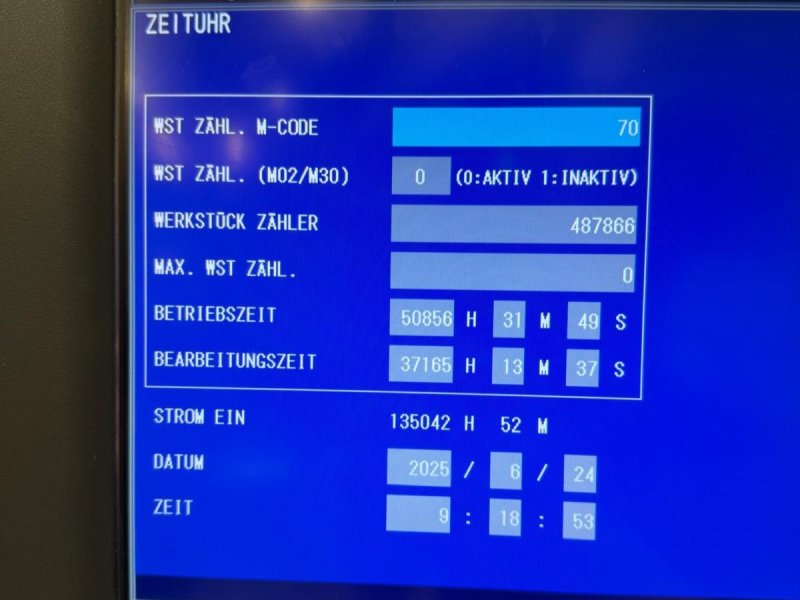

Time in Working Power: 135,042 kW

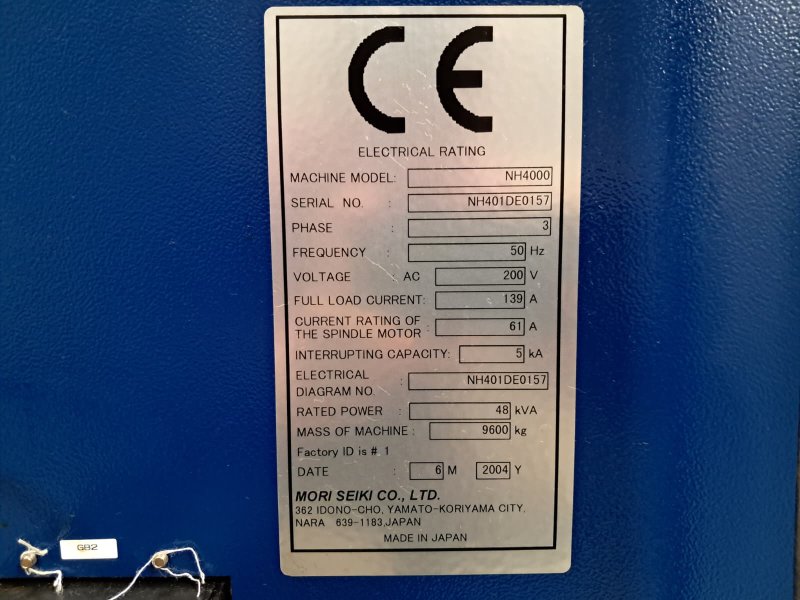

Rated Power: 32.8 kVA
Operating Time: 37,165 kW
Main Machine Dimensions / Weight:
Length: 4,004 mm
Width: 2,397 mm
Height: 2,711 mm
Weight: 9,600 kg
