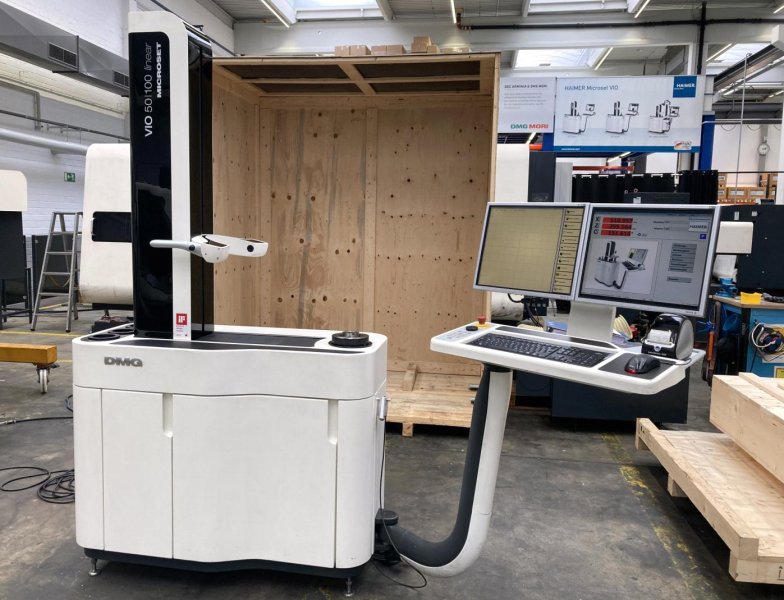

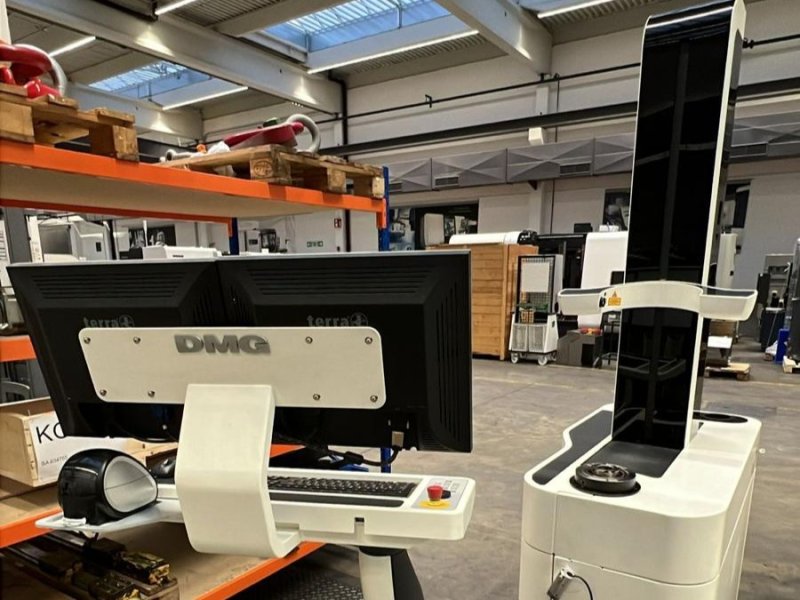

DMG MORI Microset VIO Linear 2011
- Condition: used
- published: 09/04/2026
- 26IND48851
Technical data
- Condition: used
- Year: 2011
Description
Year of manufacture: 2011
Fully automatic with manual options
Intuitive entry of automatic measuring cycles
Wear- and maintenance-free linear motors

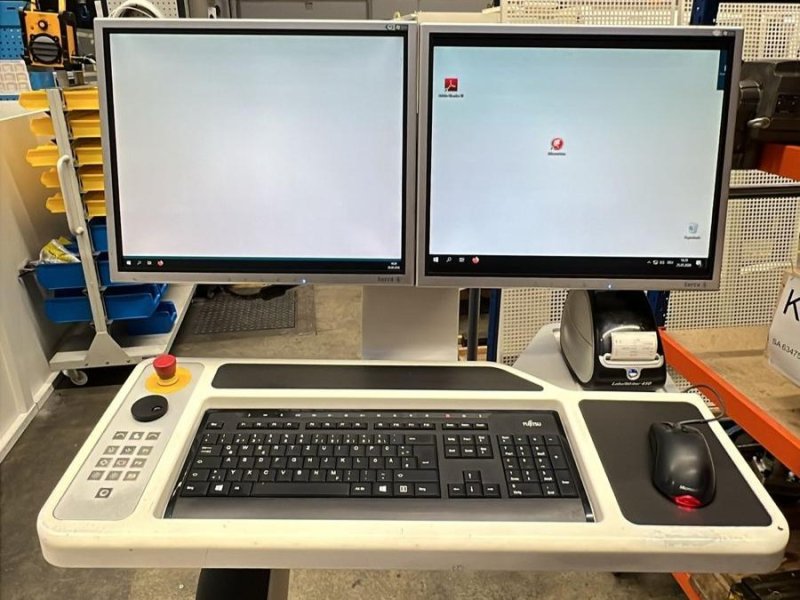

Flexible control console
From manual to fully autom ...
Year of manufacture: 2011
Fully automatic with manual options
Intuitive entry of automatic measuring cycles
Wear- and maintenance-free linear motors
Flexible control console
From manual to fully automatic
Low distortion even at maximum permissible load thanks to the high installed weight
FEM-optimized and thermally stable cast iron structure
RFID data transmission system
Customized data storage
Measuring processes with integrated data retrieval and storage
Integration of all common RFID systems
The read/write head can be positioned automatically and manually for all common tool holder systems
Technical data
Length and diameter up to 1,000 mm
Max. tool diameter for measuring according to the snap-gauge principle: 100 mm
Max. tool weight: 160 kg

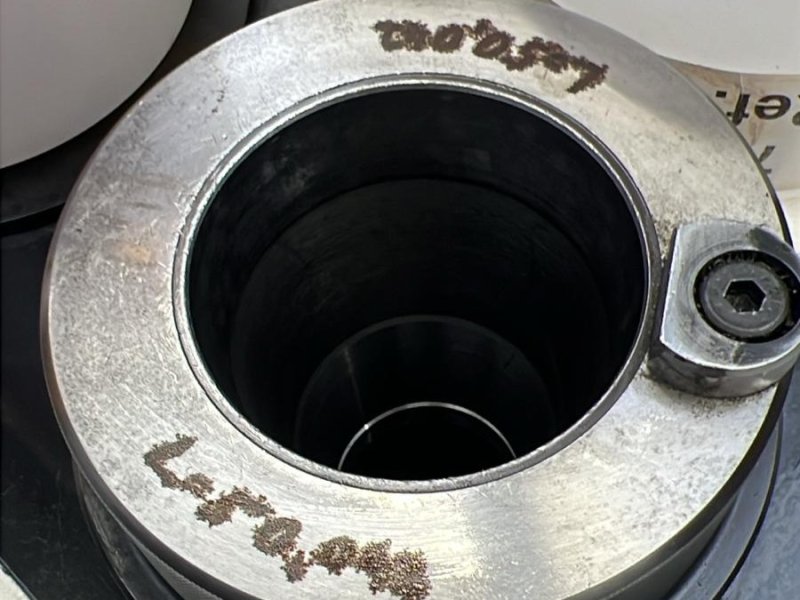

SK50 tool holders (additional tool holders available from HAIMER/Microset)
Runout at spindle nose: 2 μm
Repeatability: ±2 μm
Tool presetting
Quick and precise measurement results thanks to intuitive operation
Accurate measurement values for complex and helical cutters with the precise focus window
User administration and access privileges
Currently 16:9 display
Fixed/floating crosshairs with automatic measurement lines and automatic contour evaluation
A single software design for all equipment classes
Windows 7 Professional or Ultimate, depending on your needs
Data exchange
Post-processed data is transferred to the corresponding data exchange unit via network or USB.
All equipment can provide tool data to almost any software (tool management, database, CAD/CAM) via a bidirectional interface
