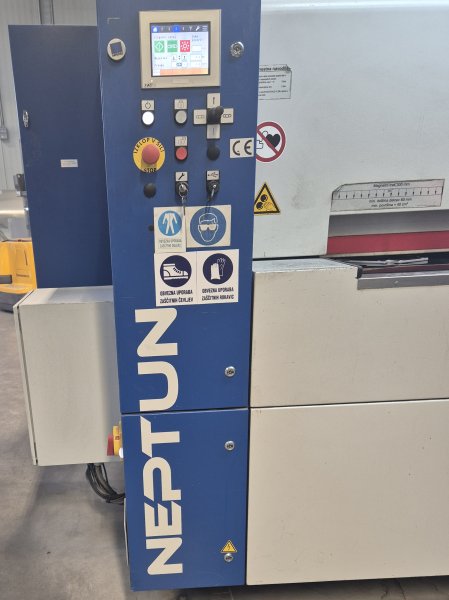

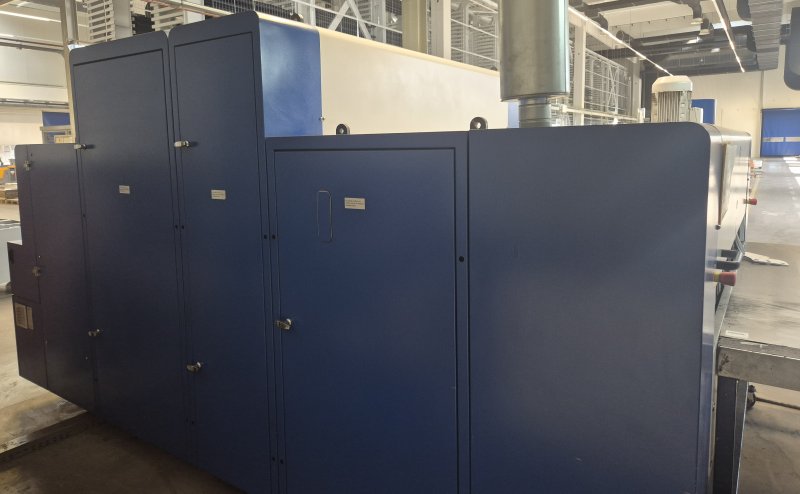

ERNST NEPTUN ESKB 2014
- Condition: used
- published: 13/04/2026
- 26IND48889
Technical data
- Condition: used
- Year: 2014
Description
machine specialized for wet grinding and deburring of sheet metal
"Main technical advantages:
ESKB system (E-S-K-B): Integrated combination of sanding belt (E), special brushes (S/K) and finishing ( ...
machine specialized for wet grinding and deburring of sheet metal
"Main technical advantages:
ESKB system (E-S-K-B): Integrated combination of sanding belt (E), special brushes (S/K) and finishing (B) that enables deburring, edge rounding and polishing in one pass."""
Wet machining: Coolant prevents deformation of thinner sheet metal due to heat, extends the life of abrasives, and ensures a clean working environment free of metal dust.
Technical data:
Flexible working width: Available in various widths (e.g. up to 1500 mm), allowing the processing of a wide range of workpieces.Precision sheet metal processing from 1 mm to 100 mm thicknes.
Connected power: 60 kW (with full module configuration).Compressed air consumption: Approx. 80 Nl/min at 5 bar pressure.Electrical current: Nominal current approx. 95 A
"construction and dimensions
Machine weight: 5200 kg, which ensures exceptional stability and vibration-free operation.
External dimensions (LxWxH): Approximately 3.3 x 2.3 x 2.7 m.
Transport system: Choice of vacuum table (for aluminum and non-ferrous metals) or magnetic table (for ferromagnetic materials).
Maintenance: System for automatic lifting of the upper part of the machine (up to 500 mm) for easier access when changing tools or servicing."
Features /advantages:
Vacuum and magnetic table: Ensures stable fixation of even smaller or more complex pieces during the process.
"Wet processing and filtration system: Coolant tank: Capacity 450 l .
Filtration: Integrated PS-140 paper belt filter for continuous cleaning of the process water.
Drying: The machine includes a module for cleaning and drying the workpieces after grinding 2,5m x 2,5 and and 2m height"
Working
Revised
CE compliant
