TORNOS MultiAlpha 8x20 2008
- Condition: used
- published: 14/04/2026
- 26IND48909
Technical data
- Condition: used
- Year: 2008
- Bar passage : 17/25 mm
Description
CAPACITY

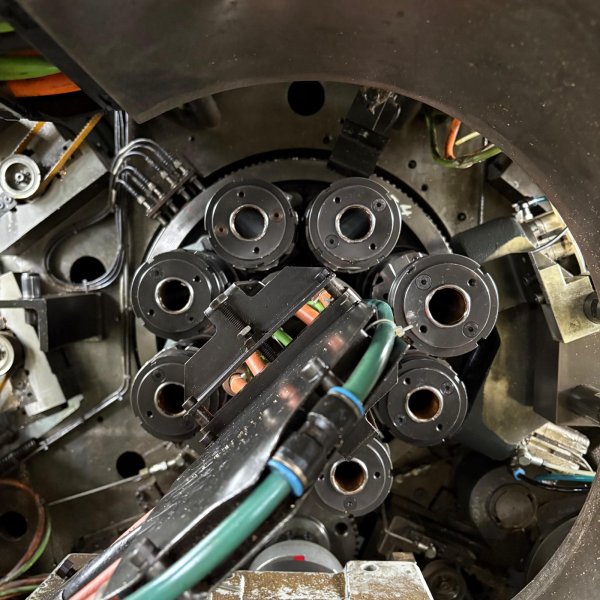

Number of spindles: 8
Bar diameter: ø 22
Maximum workpiece length: 100 mm
MOTORIZED SPINDLES
Maximum speed: 8,000 rpm
Power: 11.2 kW
Motorized spindle torque: 17 (25) Nm
COUNTER SPINDL ...
CAPACITY
Number of spindles: 8
Bar diameter: ø 22
Maximum workpiece length: 100 mm
MOTORIZED SPINDLES
Maximum speed: 8,000 rpm
Power: 11.2 kW
Motorized spindle torque: 17 (25) Nm
COUNTER SPINDLE
Maximum speed: 8,000 rpm
Motor power: 3.7 kW
Motor torque: 8.3 Nm
DRILLING MOTOR
Maximum speed: 8,000 (6,000) rpm
Power: 6 (12.1) kW
Drilling motor torque: 2 Nm
BACKWORKING
Maximum motor speed: 8,000 rpm
Motor power: 1.5 kW
Rear tool motor torque: 2 Nm

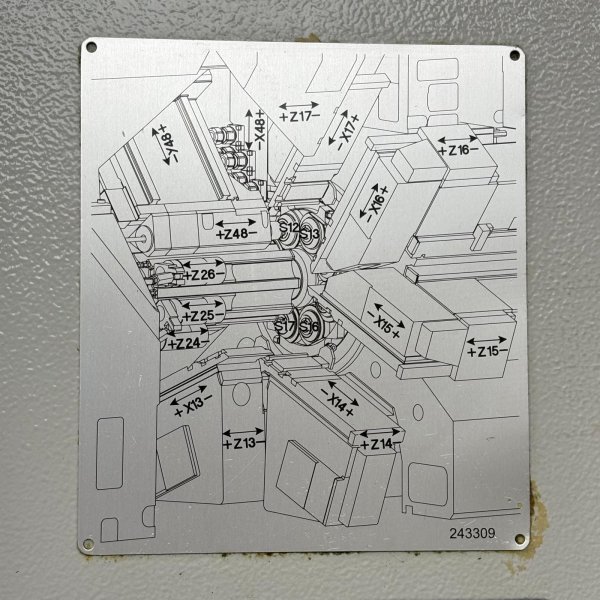

AXES AND TRAVELS
Number of linear axes: 28
Number of rotary axes: 9
X-axis cross slide travel: 50 mm
Z-axis cross slide travel: 80 mm
Y-axis cross slide travel: 12 mm
Z-axis end unit travel: 200 mm
Y-axis end unit travel: 13 mm
Tool slide travel (X7, X8): 65 mm
Y-axis counter spindle travel: 280 mm
Z-axis counter spindle travel: 450 mm
Rear tool holder travel: 52 mm
EQUIPMENT
Number of tools for rear operations: 2 × 5 tools
Spindle cooling: Yes

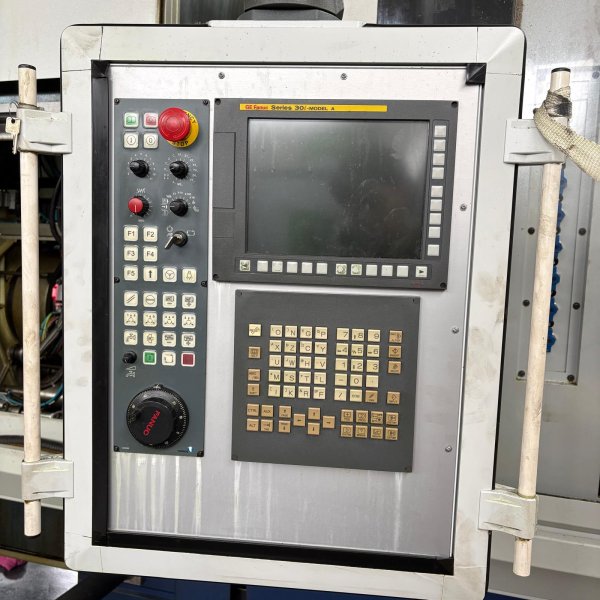

CNC control: Fanuc 30i-A
Programming system: TB-DECO
OTHER ACCESSORIES

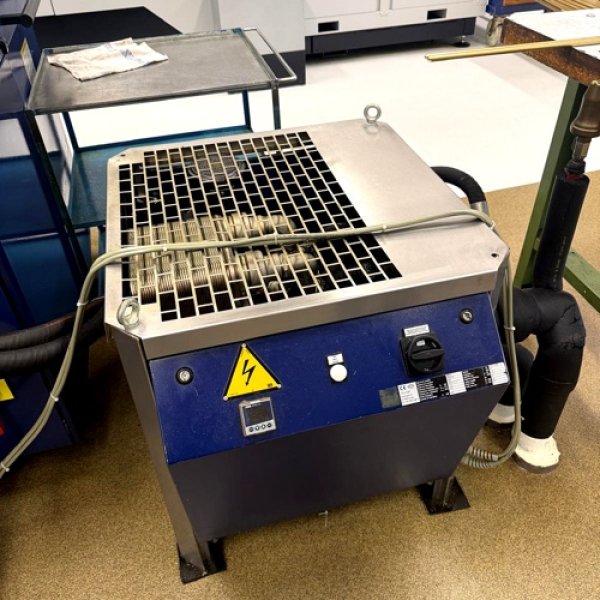

Coolant tank – chip conveyor
Working
