TACCHI FTC 100
- Condition: used
- published: 16/04/2026
- 26IND48928
Technical data
- Condition: used
- Year: undefined
- Distance between tips : > 5000 mm
- Tip height : > 500 mm
Description

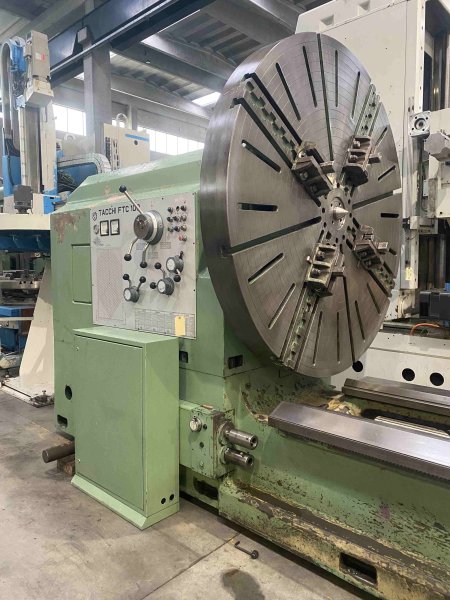

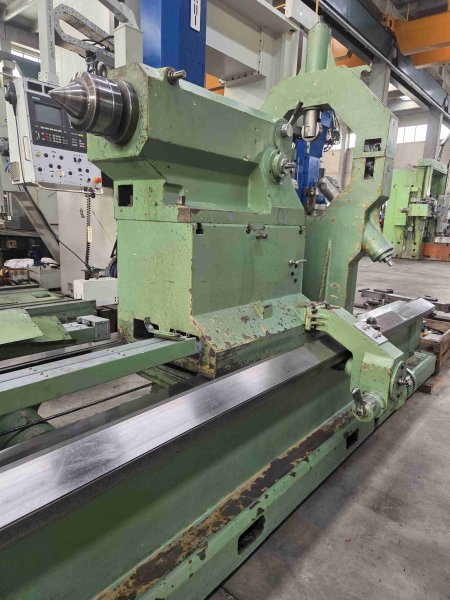

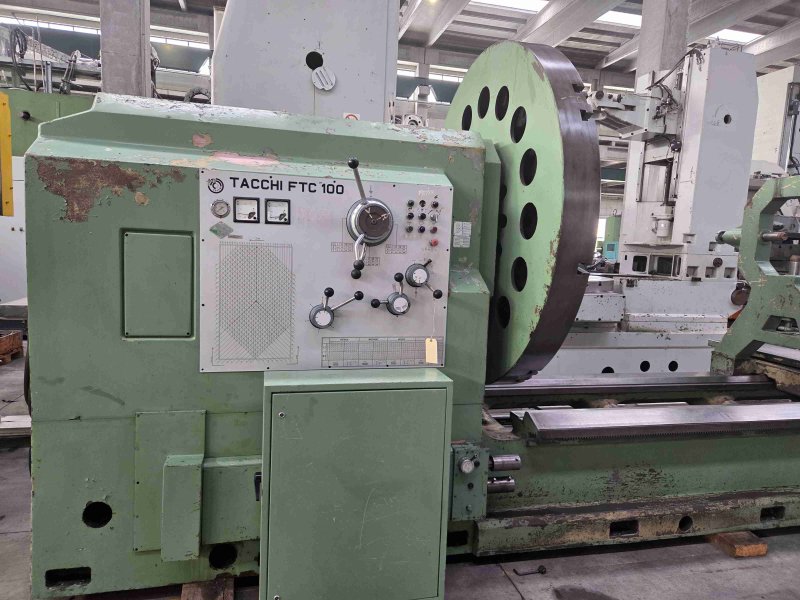

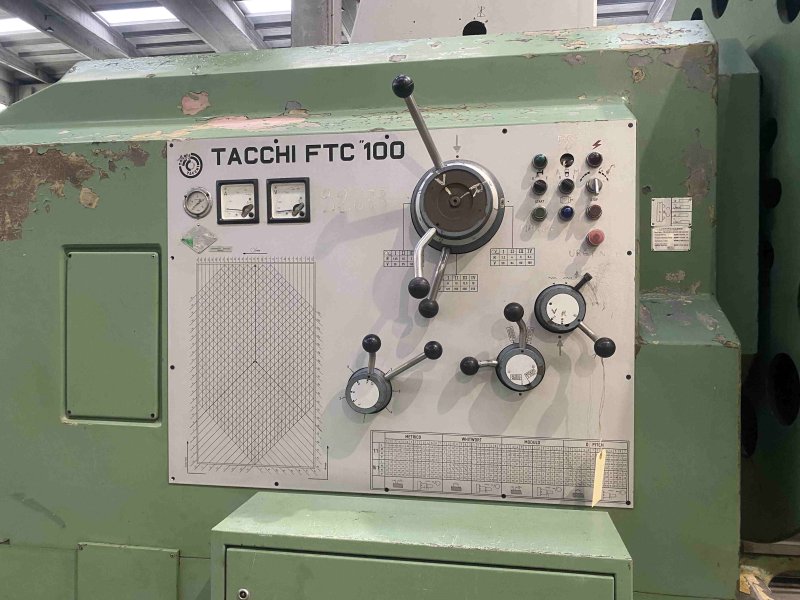

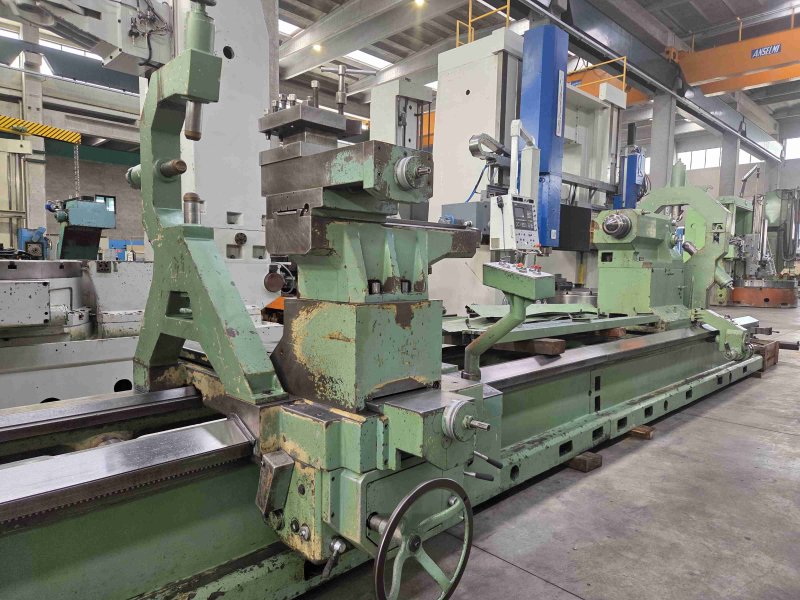

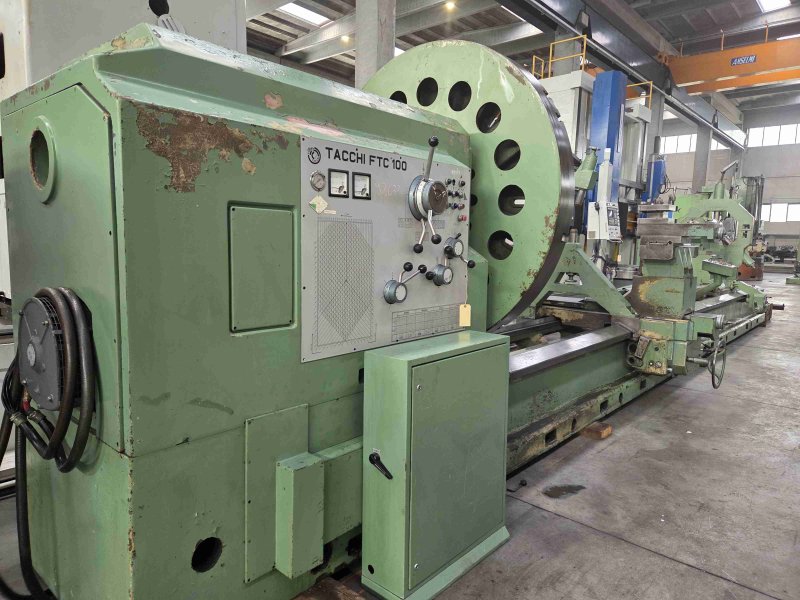

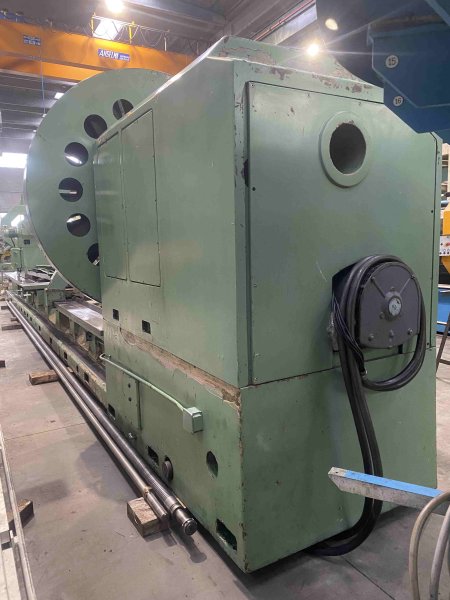

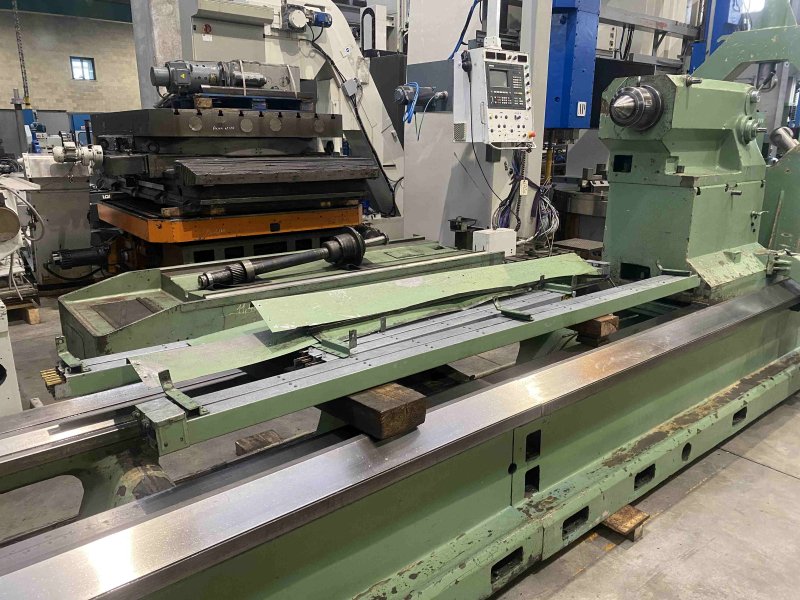

TACCHI FTC 100 PARALLEL LATHE
Height between centers: 1,060 mm
Distance between centers: 8,000 mm
Max. diameter over bed: 2,120 mm
Max. diameter over carriage: 1,800 mm
Bed width: 1,150 mm
Spindle bor ...
TACCHI FTC 100 PARALLEL LATHE
Height between centers: 1,060 mm
Distance between centers: 8,000 mm
Max. diameter over bed: 2,120 mm
Max. diameter over carriage: 1,800 mm
Bed width: 1,150 mm
Spindle bore: 200 mm
Load capacity between centers (without steady rests): 24 tons
Spindle motor power: 75 hp
Spindle speed: 24; 1.25 - 250 rpm
Tailstock quill diameter: 240 mm
Total weight: 38 tons
Complete with:
- 1 platform, Ø 2,000 mm
- 1 1 self-centering chuck, Ø 800 mm.
- 1 closed steady rest
- 1 movable steady rest
- conical turning device
