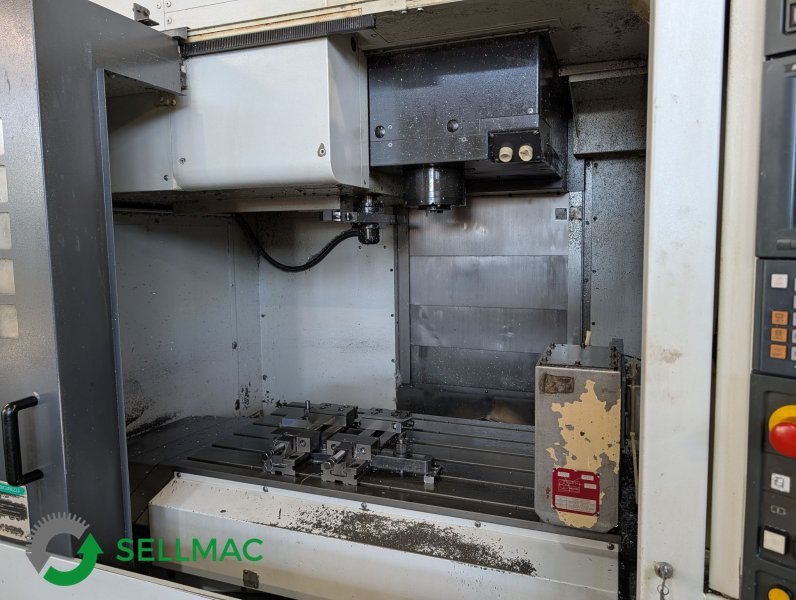

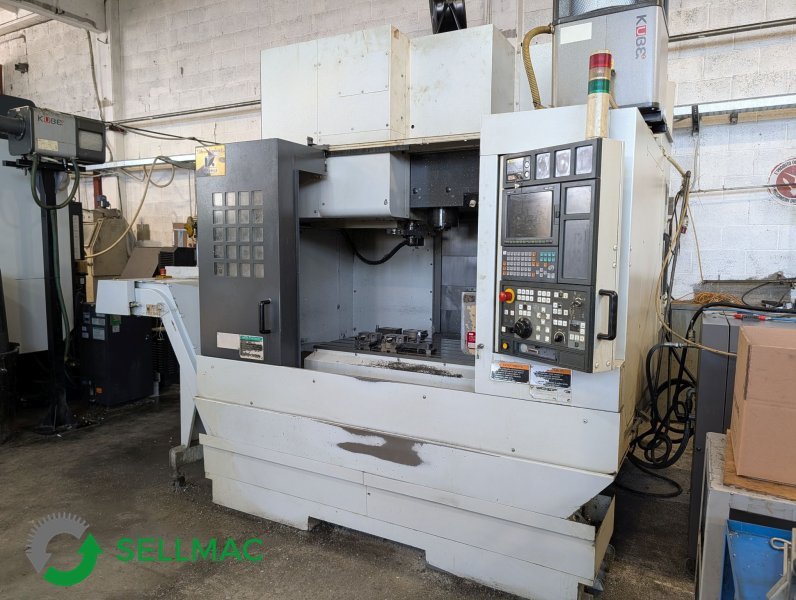

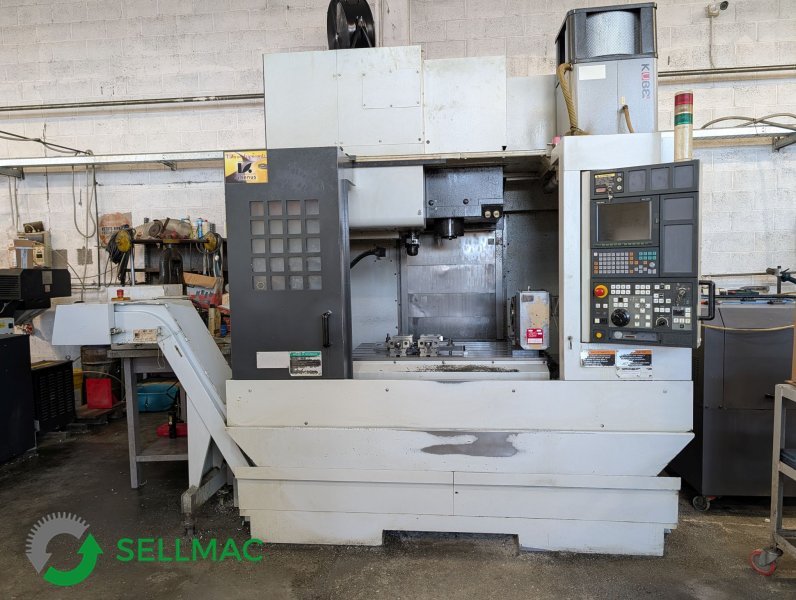

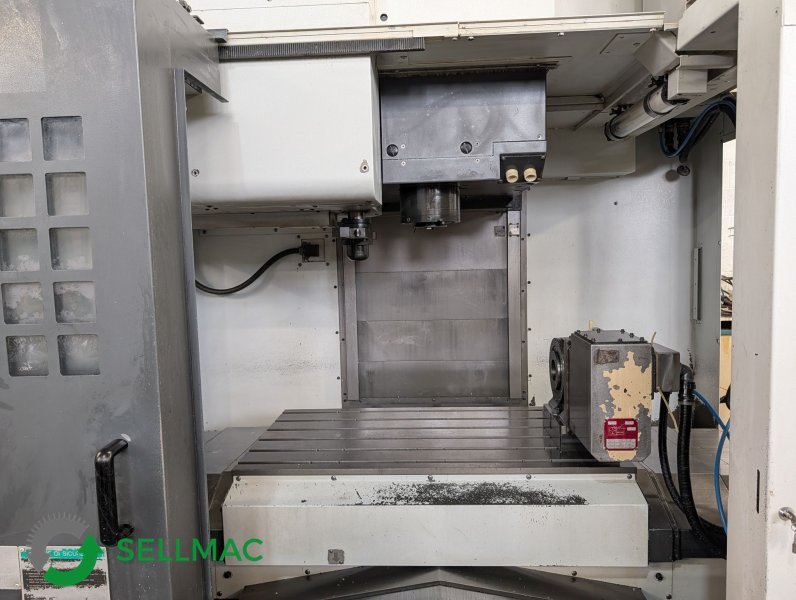

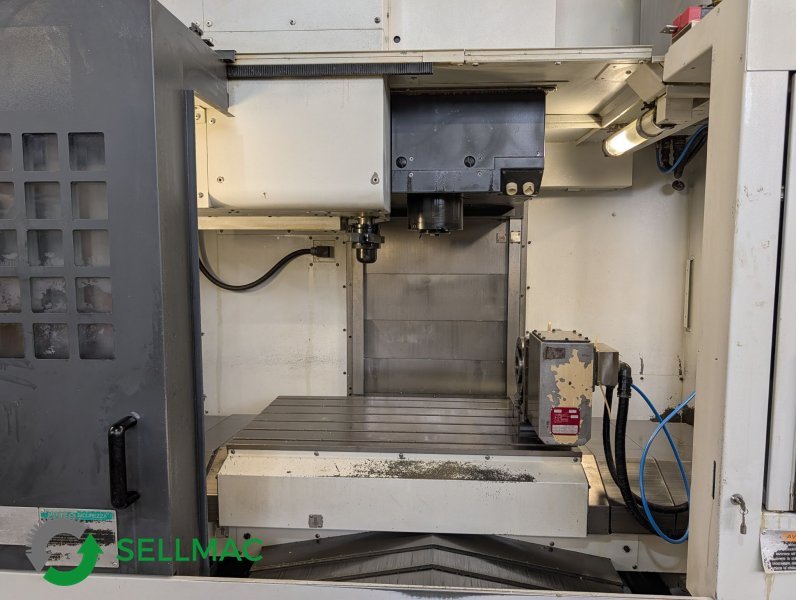

MORI SEIKI NV 5000 Alpha 1A/40 2006
- Condition: used
- published: 23/04/2026
- 26IND48965
Technical data
- Condition: used
- Year: 2006
Description
MSX-501 CNC (MAPPS-M Conversational)
FEATURES
1. WORK CAPACITY AND TRAVELS
• X-Axis Travel: 800 mm
• Y-Axis Travel: 510 mm
• Z-Axis Travel: 510 mm
• Distance between table top and spindle no ...
MSX-501 CNC (MAPPS-M Conversational)
FEATURES
1. WORK CAPACITY AND TRAVELS
• X-Axis Travel: 800 mm
• Y-Axis Travel: 510 mm
• Z-Axis Travel: 510 mm
• Distance between table top and spindle nose: 150 - 660 mm

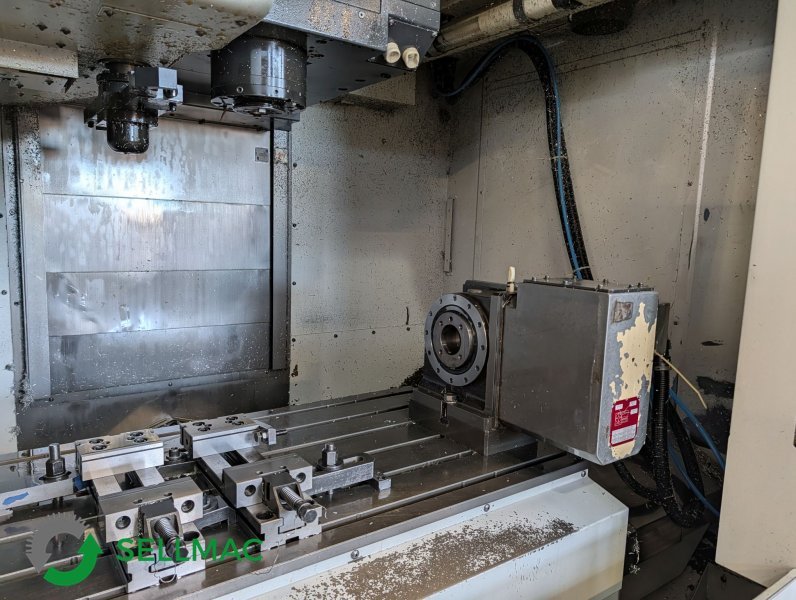

2. TABLE
• Table Dimensions: 1,100 x 600 mm
• Maximum Load Capacity: 1,000 kg
• Configuration: 6 x 18 mm T-Slots

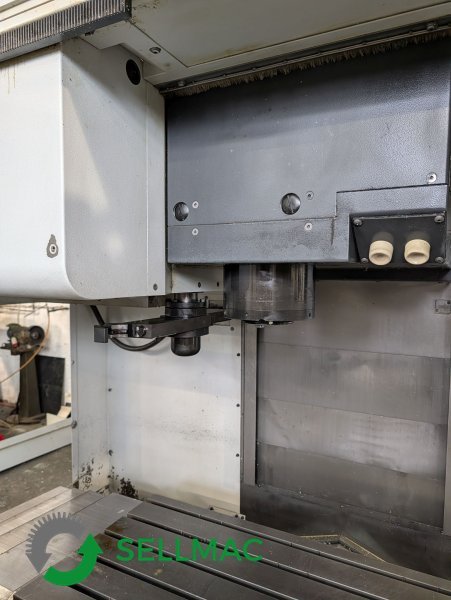

3. SPINDLE
• Rotation Speed: 14,000 rpm
• Spindle Mount: MAS BT-40 (7/24 Taper No. 40)
• Bearing Inner Diameter: 65 mm
• Motor Power (30 min/cont.): 22 / 18.5 kW
• Cooling: Spindle cooling refrigerator included
4. FEEDS AND ACCURACY
• Rapid feed: 42,000 mm/min
• JOG feed: 0 - 1,260 mm/min
• Positioning accuracy: 0.005 mm (over the entire travel)
• Positioning repeatability: ± 0.001 mm
5. TOOL CHANGE (ATC)
• Magazine capacity: 30 positions
• Tool holder type: MAS BT-40 (90° pull-shank)
• Maximum tool diameter: 80 mm (125 mm with adjacent empty positions)
• Maximum tool length: 300 mm
• Maximum tool weight: 8 kg
• Tool change time (chip-to-chip): 2.6 seconds (1.0 s tool-to-tool)

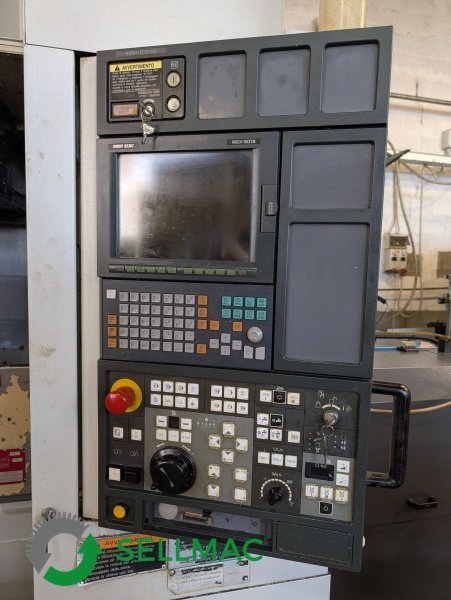

6. CNC FEATURES (Mori Seiki MSX-501)
• Monitor: 10.4" TFT color active matrix
• Program memory: 320 m (63 recordable programs)
• Main functions:
o LOOK-AHEAD (G08) for high-speed 2D profile control
o Synchronized tapping (Rigid Tapping)
o Helical interpolation
o Load Monitor (cutting force management)
o Standard RS-232-C and PCMCIA interfaces
7. DIMENSIONS, WEIGHTS, AND POWER CONSUMPTION
• Machine height: 2,603 mm
• Installation area: 2,788 x 2,710 mm
• Machine weight: 6,960 kg
• Installed electrical power: 50.5 kVA
• Coolant tank capacity: 275 liters
8. EQUIPMENT AND ACCESSORIES INCLUDED
• Evacuator Chip removal: Left side conveyor

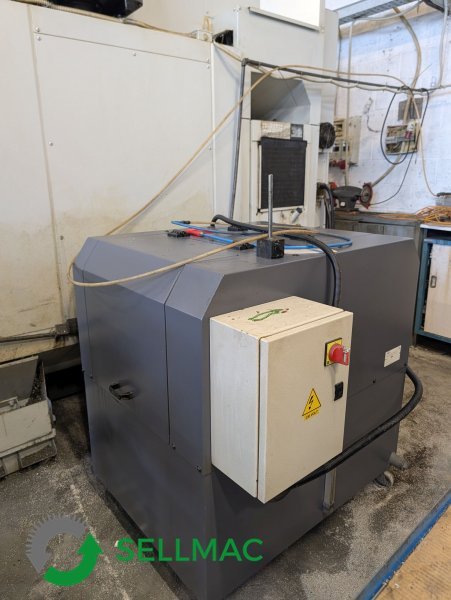

• Coolant: Through-spindle coolant interface (Type-B) with additional high-pressure pump (50 atm) and double filter
• Cleaning system: Pneumatic
• Signaling: End-of-cycle light and audible alarm
• Transformer: Included (380V/50Hz > 200V/60Hz)
Machine supplied with manuals, test certificates, and CE declaration
All technical data shown is indicative and subject to change without notice and therefore should not be considered binding.
CE compliant
