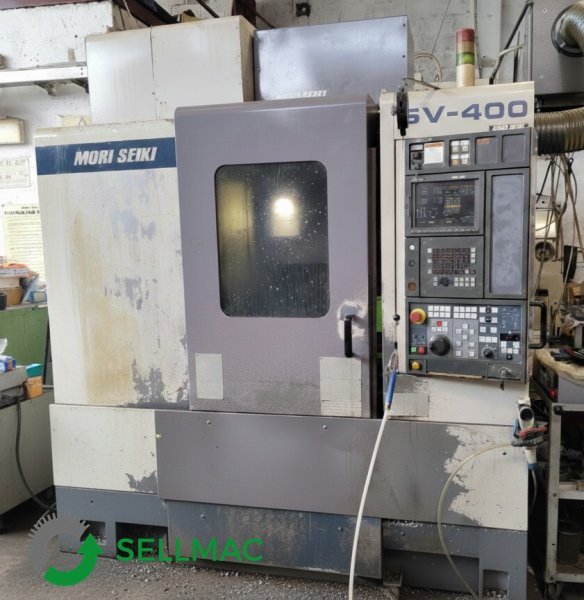

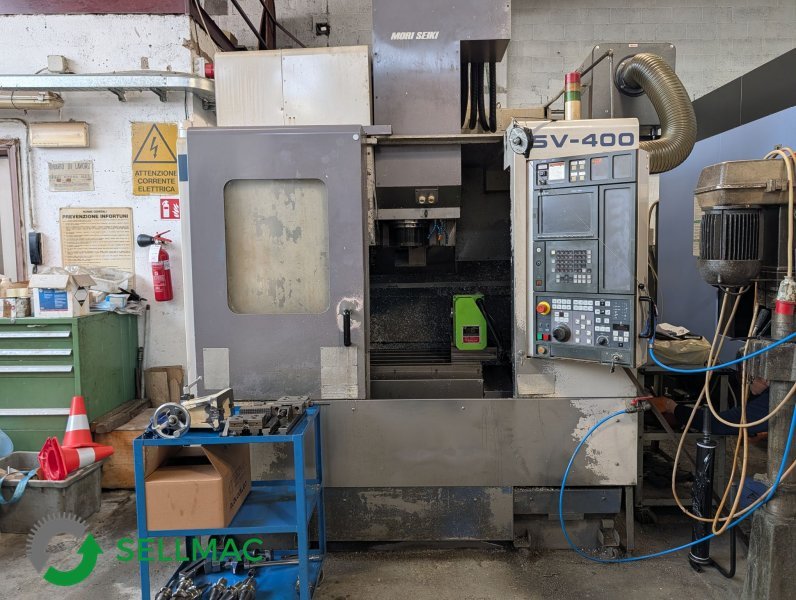

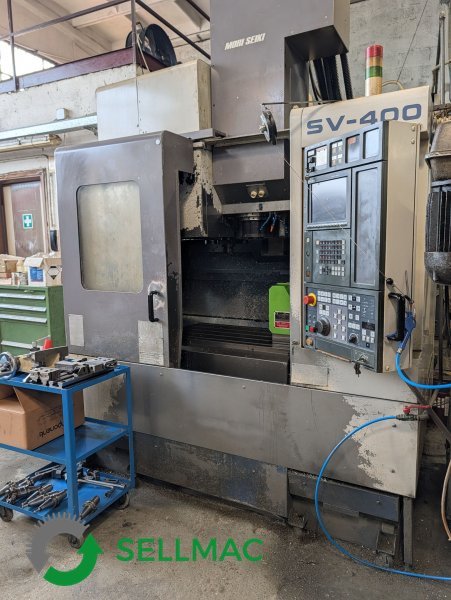

MORI SEIKI SV 400 1998
- Condition: used
- published: 23/04/2026
- 26IND48966
Technical data
- Condition: used
- Year: 1998
Description
MORI-FANUC CNC (Models MSC-518 / MSC-501)
Features
1. Capacity and Table
• Table dimensions: 900 x 500 mm
• X-axis travel (longitudinal): 600 mm
• Y-axis travel (transverse): 430 mm
• Z-axis ...
MORI-FANUC CNC (Models MSC-518 / MSC-501)
Features
1. Capacity and Table
• Table dimensions: 900 x 500 mm
• X-axis travel (longitudinal): 600 mm
• Y-axis travel (transverse): 430 mm
• Z-axis travel (vertical): 460 mm
• Spindle nose-to-table distance: 150 - 610 mm
• Maximum table load: 500 kg
• Table configuration: 4 T-slots (18 mm x 100 mm center distance)

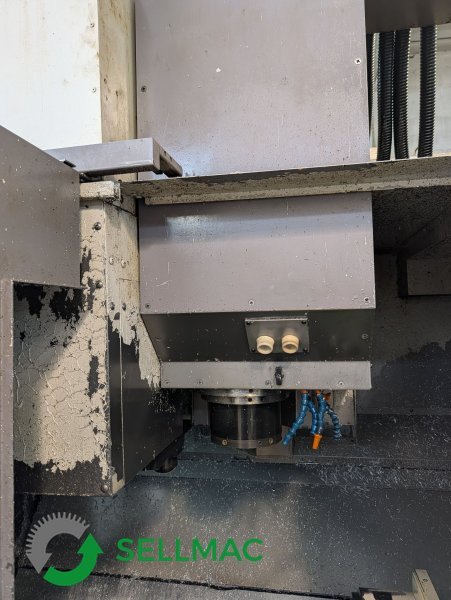

2. Spindle
• Spindle mount: BT 40
• Maximum speed: 12,000 rpm
• Spindle motor power: 22 / 18.5 kW
• Front bearing inner diameter: 85 mm
3. Tool Changer (ATC)
• Number of tools in magazine: 30 stations
• Tool holder type: BT 40
• Maximum tool diameter (adjacent): 80 mm
• Maximum tool diameter (non-adjacent): 125 mm
• Maximum tool length: 300 mm
• Maximum tool weight: 8 kg
• Tool change time (chip-to-chip): 3.2 seconds
4. Feeds and Motors
• Rapid feeds (X, Y, Z): 32,000 mm/min
• Maximum working feed: 16,000 mm/min
• Axis motor power (X/Y): 2.1 kW
• Z-axis motor power: 4.4 kW
5. Precision and Control

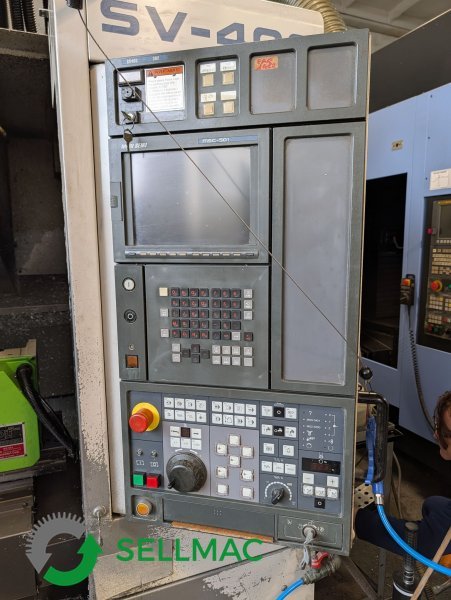

• Numerical Control: MORI-FANUC (MSC-518 / MSC-501 models)
• Memory: 320 meters
• Functions: Helical interpolation, Cutting force control (Power Monitor)
6. Dimensions, Weight, and Installation
• Floor space (approximately): 2200 x 2550 mm
• Machine height: 2770 mm
• Machine weight: 5,200 kg
• Total installed power: 50.2 kVA
• Power supply: 380 V, 50 Hz
Specific Accessories
• High-pressure coolant: 50 bar system through the center of the tool.

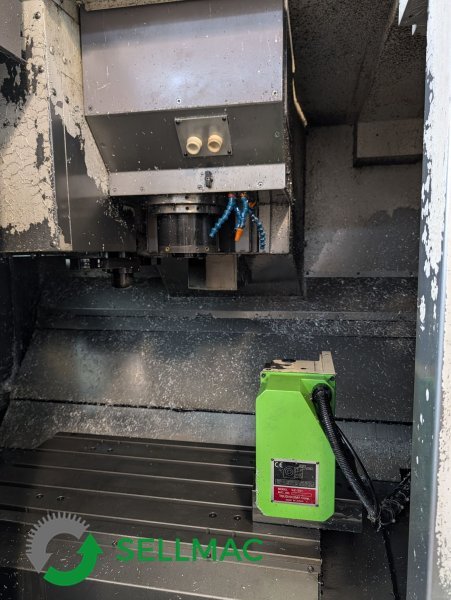

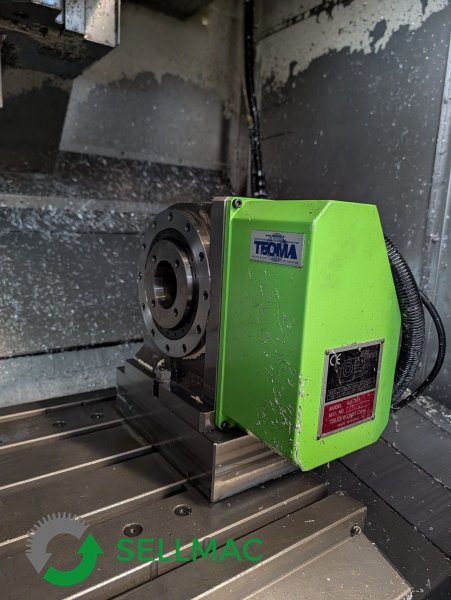

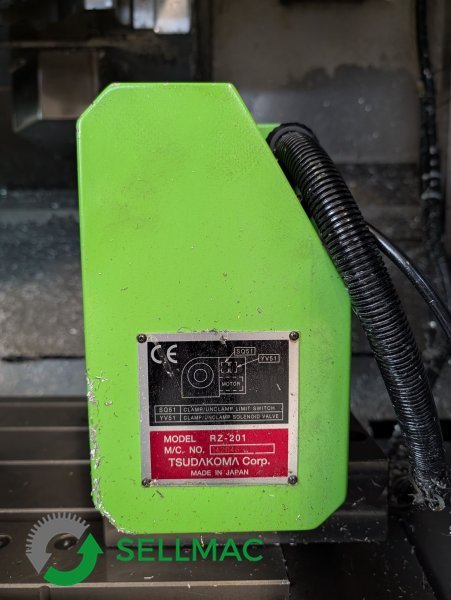

• 4th Axis: Tsudakoma rotary table model RN-150R with 200 mm pad and tailstock.
• Chip management: 2 rear-exit chip conveyors.
• Air blower for cleaning workpieces.
• Full-coverage enclosure and end-of-cycle light.
• Interface: RS-232 output for connecting external peripherals.
All technical data shown is indicative and subject to change without notice. Therefore, it should not be considered binding.
