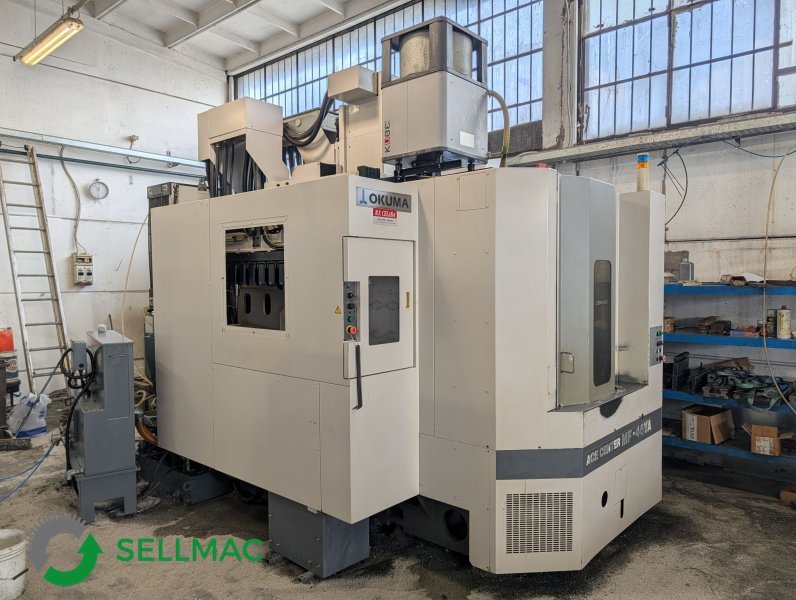

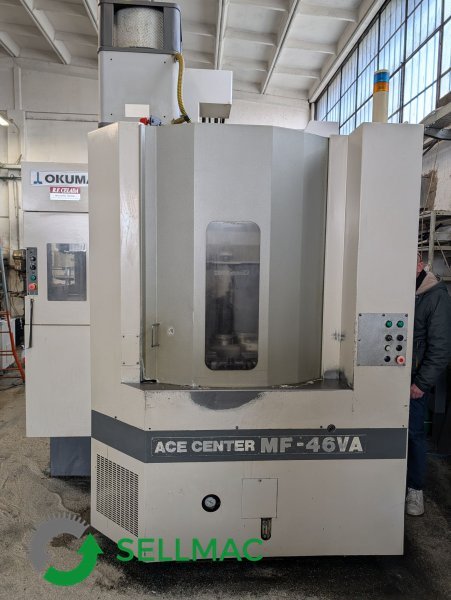

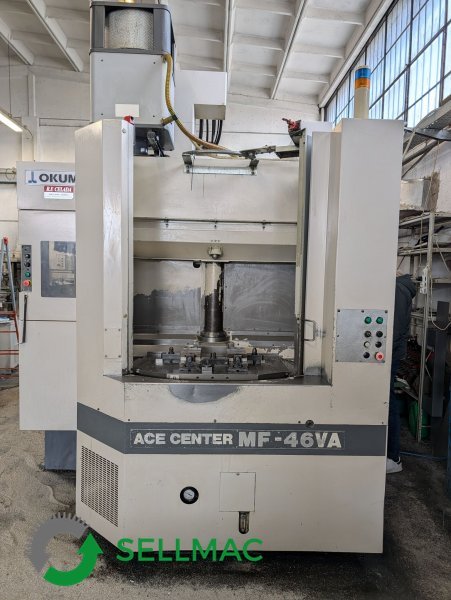

OKUMA MF-46 VA 2006

Condition: used
published: 23/04/2026
26IND48967

Miniatura immagine annuncio OKUMA MF-46 VA 2006

Technical data

Condition: used
Year: 2006

Description

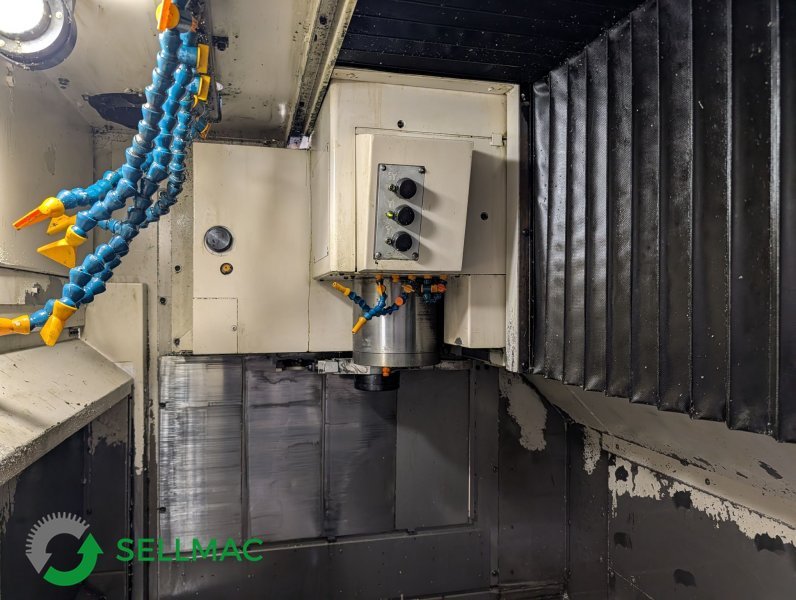

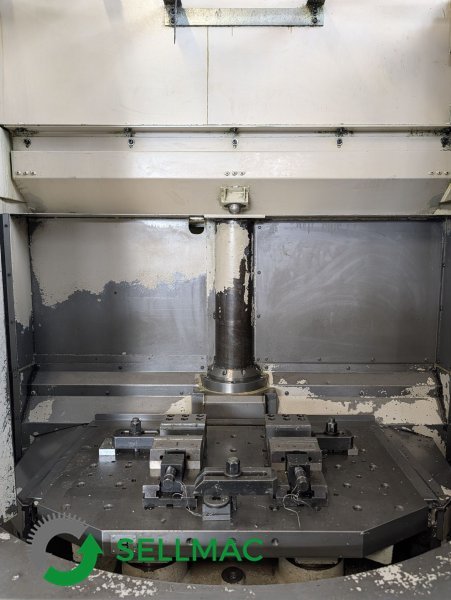

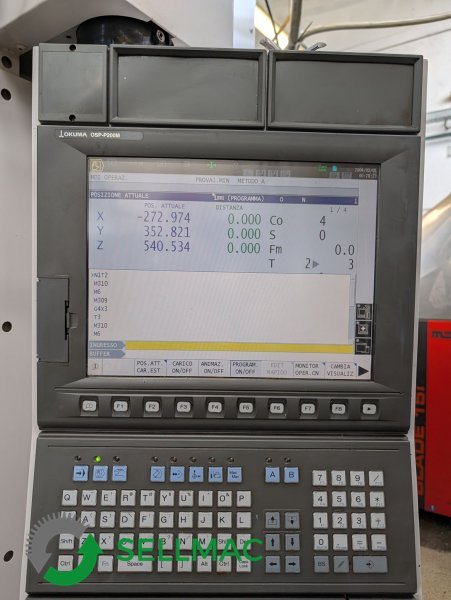

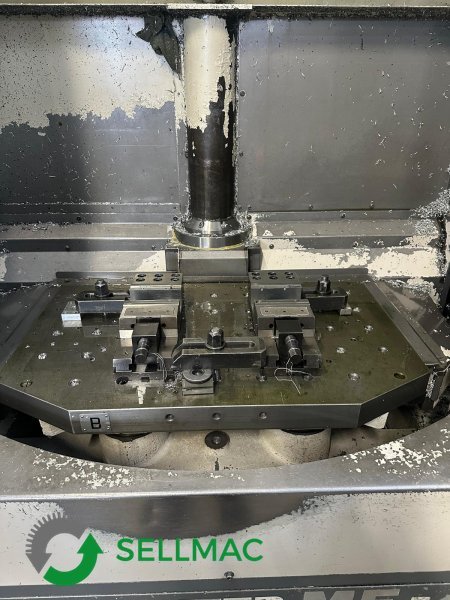

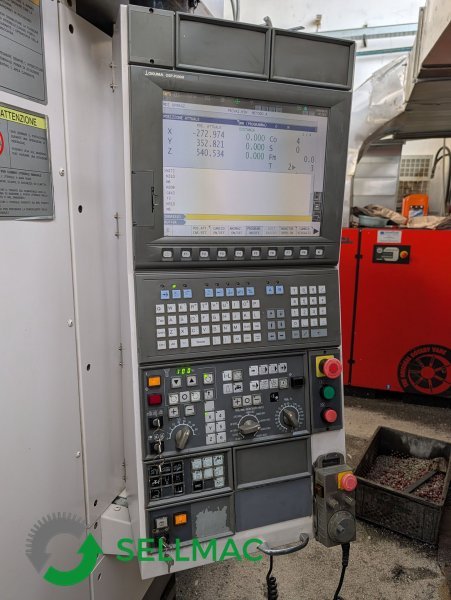

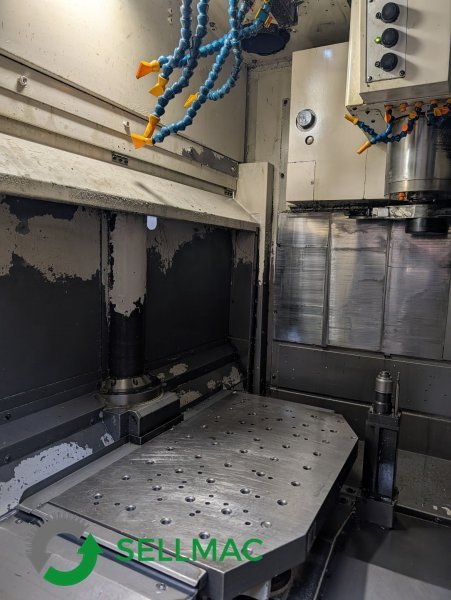

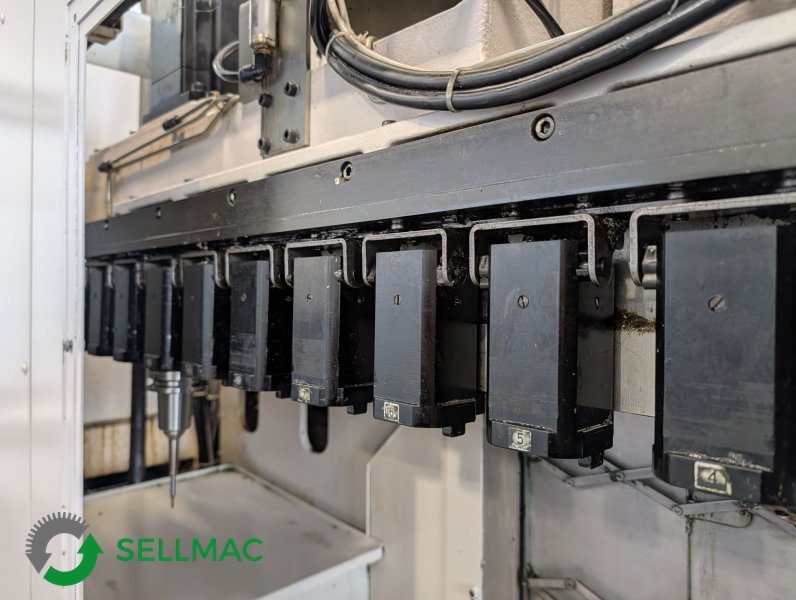

OKUMA OSP P 200M CNC (with Windows-based interface) FEATURES 1. Travels and working capacity • X-axis travel (table): 762 mm • Y-axis travel (slide): 460 mm (+100 mm for pallet changer travel) • Z-axis travel (spindle head): 460 mm • Distance between table and spindle mount: 180 – 640 mm • X-Y rapid feeds: 40 m/min • Z rapid feeds: 32 m/min • Maximum working feed: 32,000 mm/min • Positioning accuracy (X-Y-Z): ± 0.004 mm (JIS standard) • Repeatability (X-Y-Z): ± 0.0015 mm (JIS standard) 2. Pallet Changer System (APC) • Number of pallets: 2 (rotating) • Useful pallet surface: 760 x 460 mm • Maximum permissible load per pallet: 400 kg • Configuration: 3 x 18 mm T-slots (125 mm pitch) • Pallet change time: 6.0 seconds 3. Main Spindle (Optional Configuration Included) • Spindle mount: BT 40 • Rotation speed: 15,000 rpm (Upgrade from the standard 8,000) • Maximum motor power: 22 / 18.5 kW • Maximum spindle torque: 199 Nm • Systems included: TAS-S (Thermo-Active Spindle Expansion Stabilization) 4. Tool Magazine (ATC) • Magazine positions: 32 stations (Upgrade from the standard 20) • Management type: Random • Tool change time Tool change (adjacent): 1.2 seconds • Maximum tool diameter: 90 mm (125 mm with free adjacent pockets) • Maximum tool length: 300 mm • Maximum single tool weight: 8 kg 5. CNC Features and Functions (OSP P 200M) • Processor: 32-bit architecture with 128 KB user memory (expandable) • Special Functions Included: o Hi-2 NC with NURBS function: For high-speed machining and high surface quality. o Super Hi 2 NC: For complex profile management. o Synchronized rigid tapping and helical cutting. o Monitoring of cutting forces on the spindle. o Interactive/conversational IGF programming. RS 232-C interface and 3.5" floppy disk drive. 6. Accessories and Additional Equipment • Measurement Systems: Table-mounted tool breakage detection probe and provision for a zero-offset probe (Renishaw). • Cleaning and Management: Work area "shower" washing system, belt-type oil separator attached to the tank. • Structure: TAS-C (Thermo-Active Stabilization of the Machine Structure). • 4th-Axis Ready 7. Dimensions and Weights • Maximum floor space: 2.10 x 3.27 m • Maximum height: 3.00 m • Machine weight: Approximately 8,000 kg Machine supplied with manuals and CE declaration of conformity. All technical data shown is indicative and may be changed without notice; therefore, it should not be considered binding.
