SORALUCE SLP 6.000 2021
- Condition: used
- published: 23/04/2026
- 26IND48971
Technical data
- Condition: used
- Year: 2021
Description

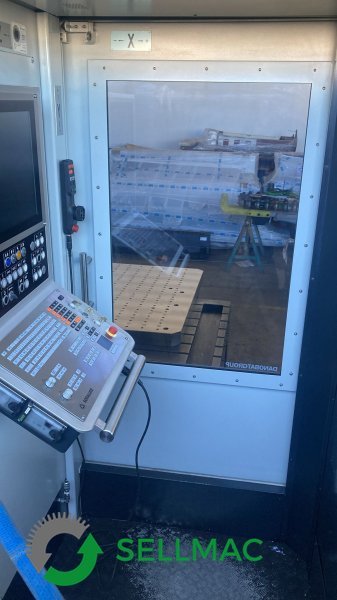

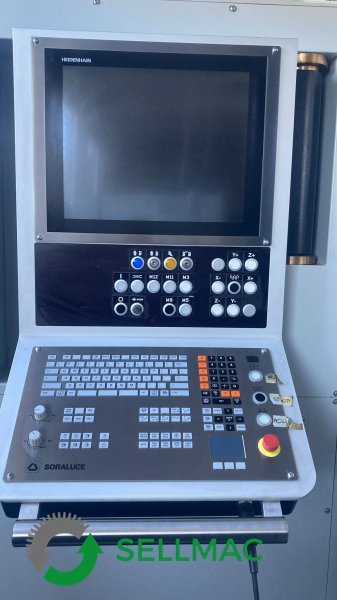

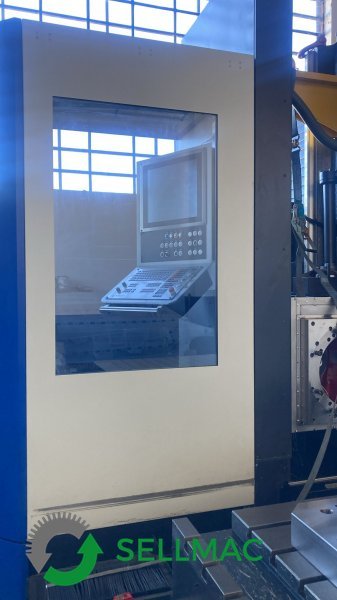

HEIDENHAIN TNC 640 CNC
DESCRIPTION

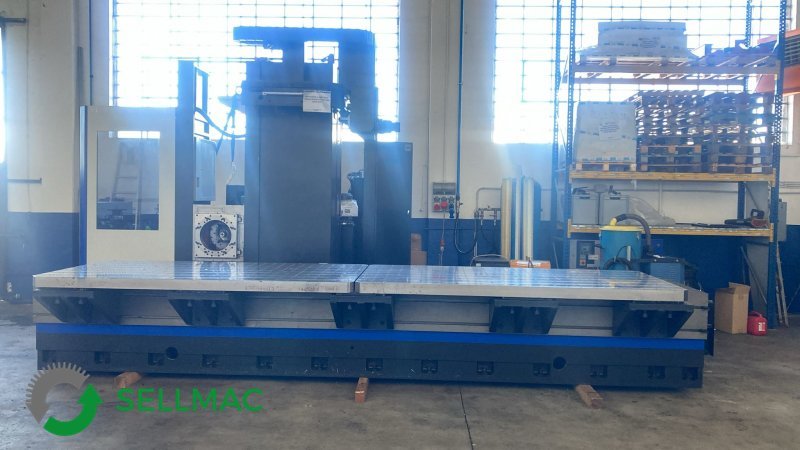

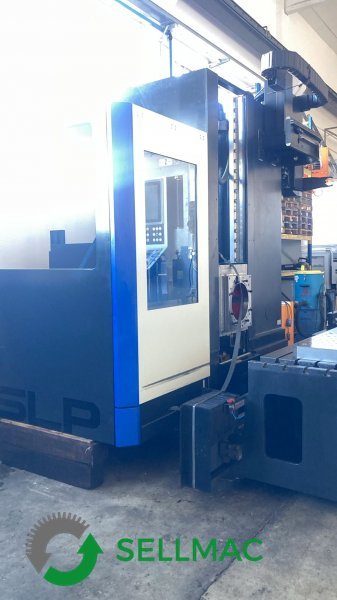

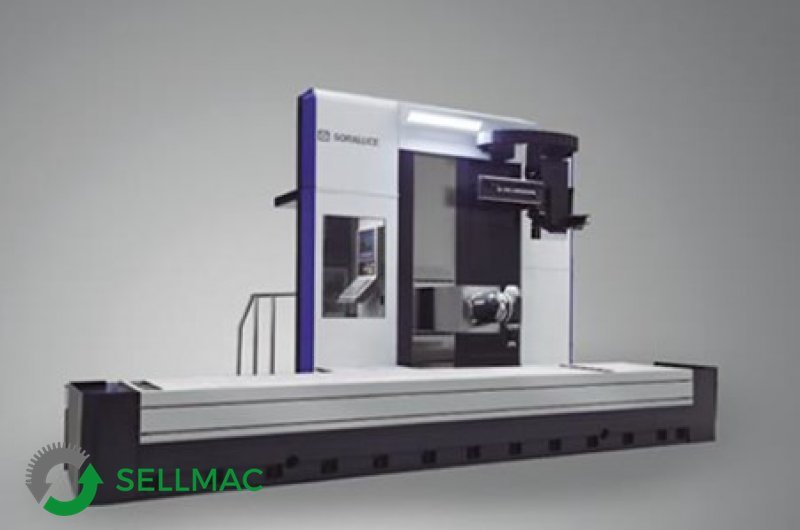

Traveling column milling machine with axial milling and boring head
FEATURES
Travels
X-axis 4,500 mm
Y-axis 1,800 mm
Z-axis 1,300 mm
Table dimensions
Table surf ...
HEIDENHAIN TNC 640 CNC
DESCRIPTION
Traveling column milling machine with axial milling and boring head
FEATURES
Travels
X-axis 4,500 mm
Y-axis 1,800 mm
Z-axis 1,300 mm

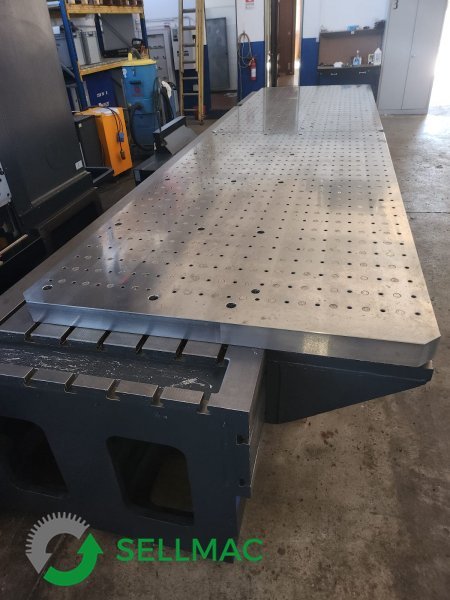

Table dimensions

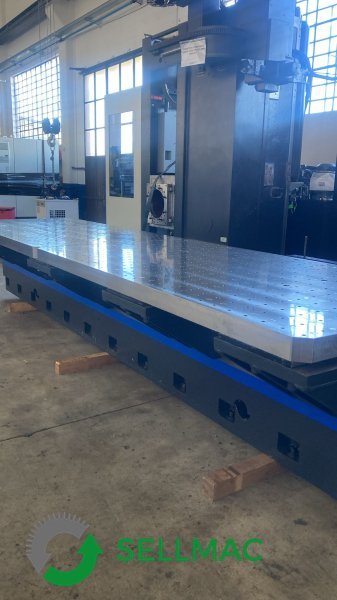

Table surface 6,000 x 1,100 mm
Load capacity 2,500 kg/m²
Height of table from floor level 850 mm
T-slots:
- Horizontal table surface no. 6
- Front table surface no. 2
- Dimensions mm 22H12
- Center groove mm 22H7
- Distance between grooves mm 140
Axis feed
Number of feeds according to ISO R-229 infinite
Working feeds mm/min 0÷20,000
Rapid feeds X, Y, Z axes mm/min 35,000
Maximum axial thrust N 16,000
Acceleration X/Y/Z axes m/sec² 1/1.5/2
(instantaneous, not maximum)
Motor specifications
Spindle motor: S1-100%/S6-60% kW 37/43
Spindle motor torque S1-100%/S6-60% Nm 900/1,045
X-axis feed motor Nm 17.7x2
Y,Z axis feed motor 17.7 Nm
Hydraulic power unit motor 1.10 kW
Coolant pump motor 2.20 kW
Lubrication pump motor 0.07 kW
Main spindle
Main spindle ISO 50 connection
Standard spindle connection DIN 69871 – AD – ISO 7388/1
Standard drawbar DIN 69872 Form AD – ISO 7388-2 Form A
Continuous speed variation 20 ÷ 4,000 rpm

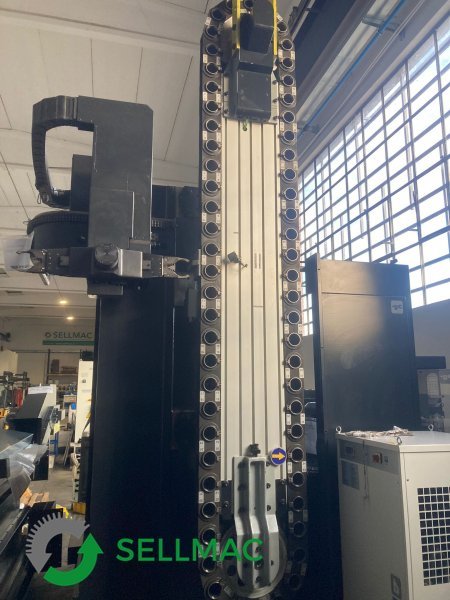

Chain-type tool magazine with 60 pockets
Machine supplied with manuals and CE declaration of conformity.
All technical data shown is indicative and may be changed without notice and therefore should not be considered binding.
CE compliant
