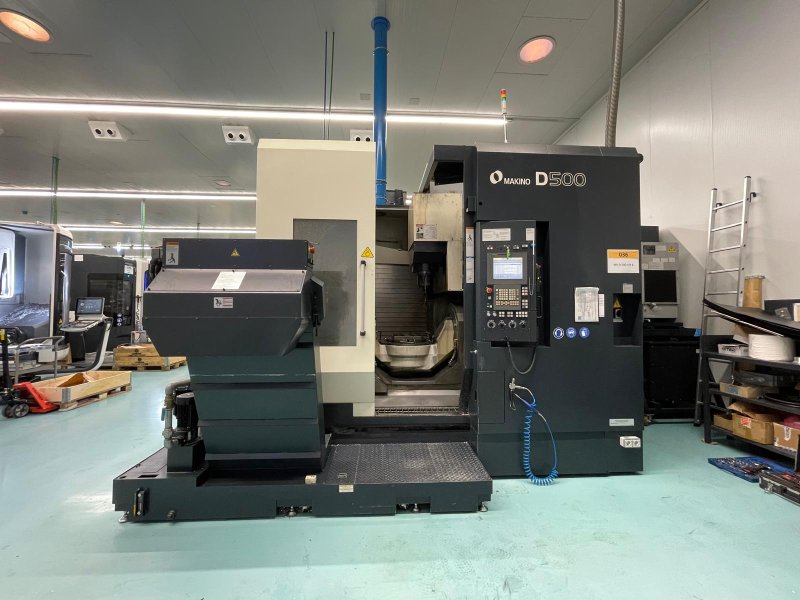

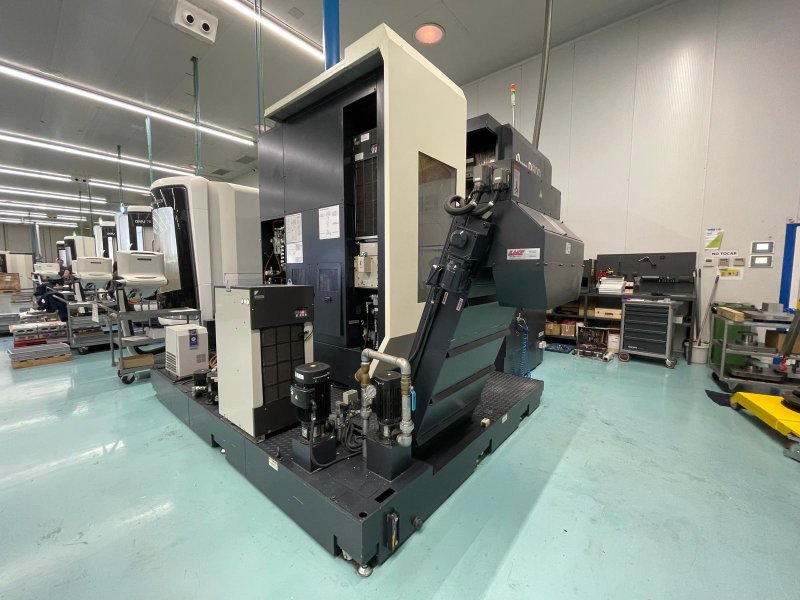

MAKINO D500 2016
- Condition: used
- published: 30/04/2026
- 26IND49017
Technical data
- Condition: used
- Year: 2016
- X-axis travel: 0/1000 mm
Description
Year of construction: 2016

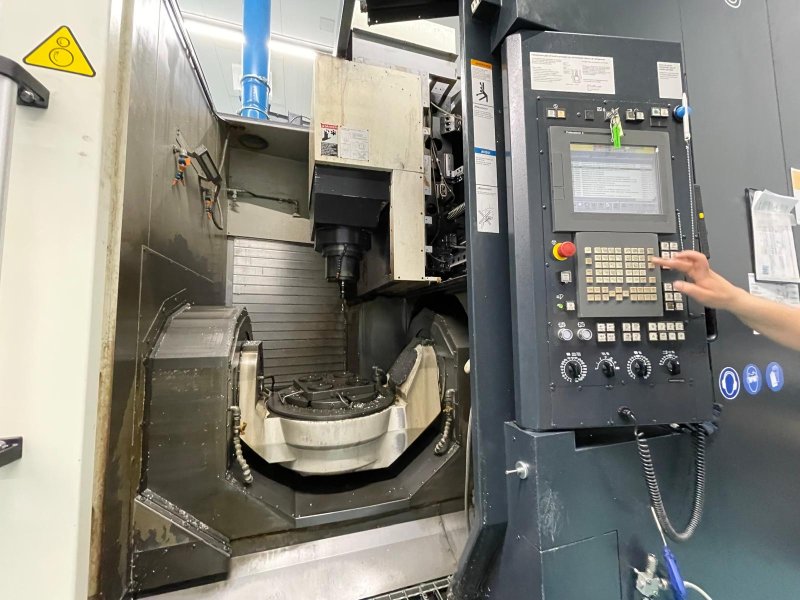

Numerical control: FANUC Professional 5
Axes
X-axis travel mm: 550
Y-axis travel mm: 1000
Z-axis travel mm: 500
C-axis angle: 360° (continuous rotation) / rotary encoder
A- ...
Year of construction: 2016
Numerical control: FANUC Professional 5
Axes
X-axis travel mm: 550
Y-axis travel mm: 1000
Z-axis travel mm: 500
C-axis angle: 360° (continuous rotation) / rotary encoder
A-axis angle: 150° (+30° 120°) rotary encoder
Feed m/min: X: 32; Y,Z: 40
Rapid feed m/min: X,A,C: 48; Y,Y: 50; A, C: 18
Working Area
Table Size (mm): 500
Maximum Workpiece Size (mm): 650x500
Maximum Workpiece Weight (kg): 350

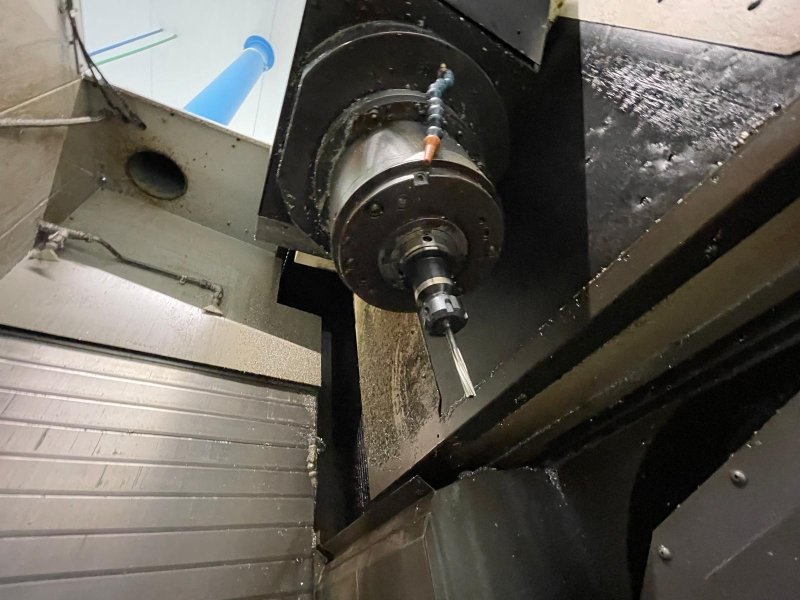

Spindle
Spindle Speed (rpm): 14,000

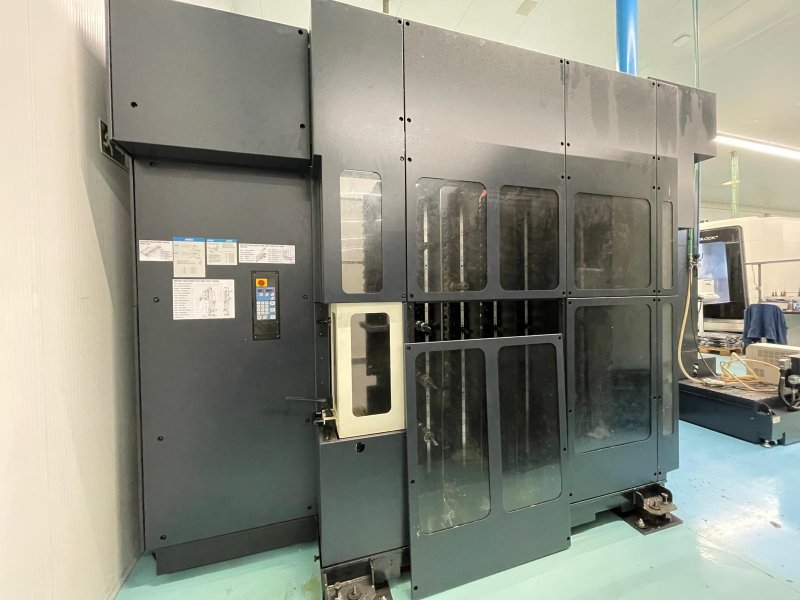

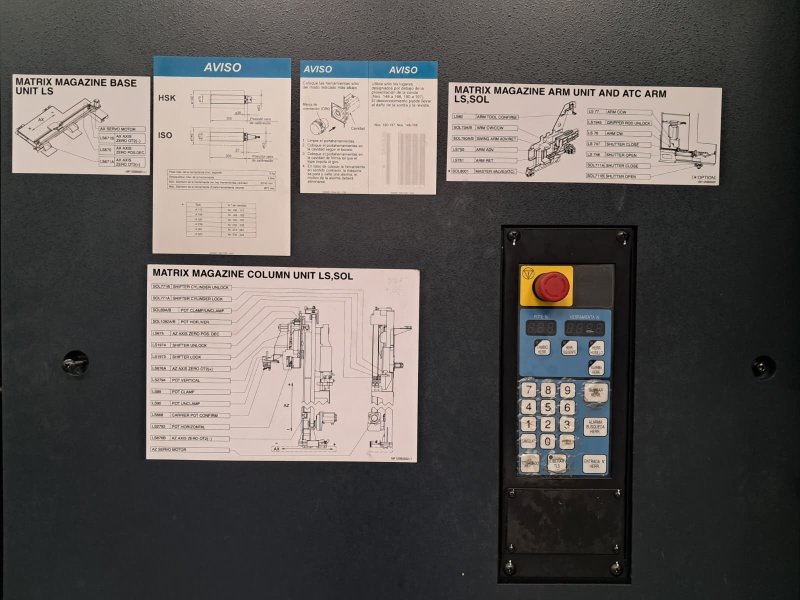

Tool Magazine
HSK-A63 Tool Holder
323 Tool Magazine Positions
Double Collet Tool Changer
Maximum Tool Diameter (mm): 70
With Adjacent Tool Positions Occupied (mm): 140
Maximum Tool Length (mm): 300
Maximum Tool Weight (kg): 8
Equipment
Electronic Handwheel
Chip Conveyor
Measuring Probe

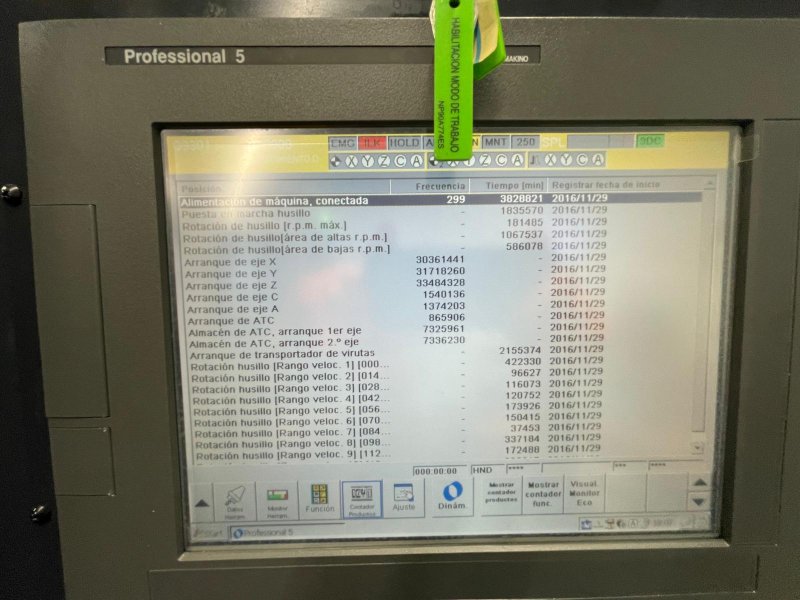

Working Time
Powered: 63,813 hours
Spindle Running: 30,592 hours
Main Dimensions Machine weight / Length mm: 3550
Width mm: 2900
Height mm: 3200
Weight kg: 15700
