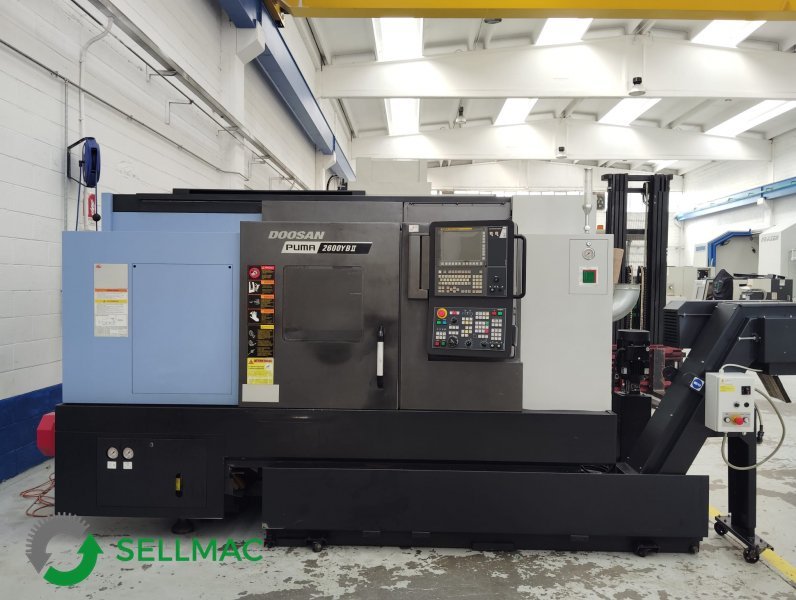

DOOSAN PUMA Puma 2600SYII 2018
- Condition: used
- published: 05/05/2026
- 26IND49032
Technical data
- Condition: used
- Year: 2018
Description
YEAR 2019
MANUFACTURER DN Solutions
MODEL 2600YB II

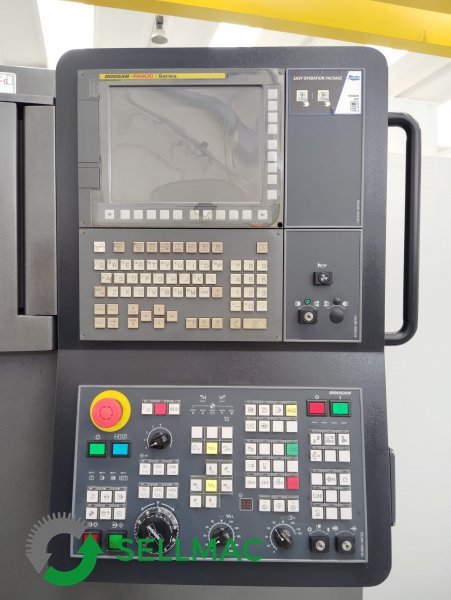

FANUC CNC
DIMENSIONS 3873x1945x2163 mm
FEATURES
Capacity
Swing diameter over bed 780 mm
Swing diameter over slide 630 mm
Recommended turning diame ...
YEAR 2019
MANUFACTURER DN Solutions
MODEL 2600YB II
FANUC CNC
DIMENSIONS 3873x1945x2163 mm
FEATURES
Capacity
Swing diameter over bed 780 mm
Swing diameter over slide 630 mm
Recommended turning diameter 376 mm
Max. turning length 725 mm
Bar diameter 102 mm

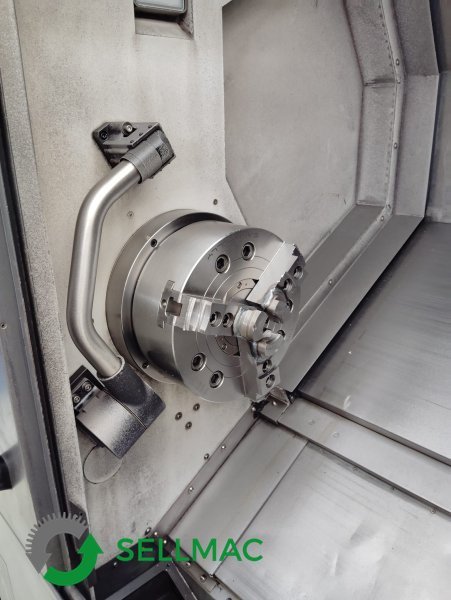

Spindle
Spindle speed (belt type) 2800 r/min
Spindle nose ASA A2#11
Spindle bearing diameter (front) 160 mm
Bore diameter through spindle 115 mm
Min. spindle indexing angle (C-axis) 0.001 degrees

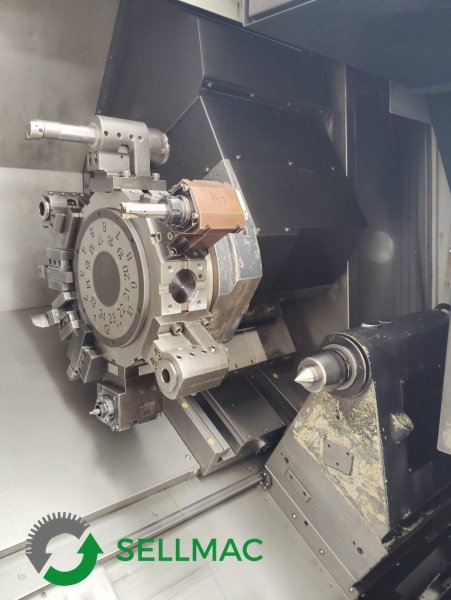

Turret
Number of turret stations 12
Tool size External diameter 25 mm
Boring bar diameter 50 mm
Indexing time (1 rotation) 0.15 sec
Driven tool spindle speed 5,000 rpm
Slide
X-axis travel 260 mm
Z-axis travel 830 mm
Y-axis travel 105 mm
C-axis travel 360 degrees
X-axis rapid feed 30 m/min
Z-axis rapid feed 30 m/min
C-axis rapid feed 10 m/min
B-axis rapid feed 200 rpm
Tailstock
Quill diameter 100 mm
Motorized quill taper MT#5
Quill travel 100 mm
Machine comes with manuals and CE declaration of conformity.
All technical data shown is indicative and subject to change without notice. Therefore, it should not be considered binding.
CE compliant
