TOS MCSK 20 CNC 1984
- Condition: used
- published: 07/05/2026
- 26IND49041
Technical data
- Condition: used
- Year: 1984
- Max working diameter : 2001/3000 mm
- Max working height : 1001/2000 mm
Description

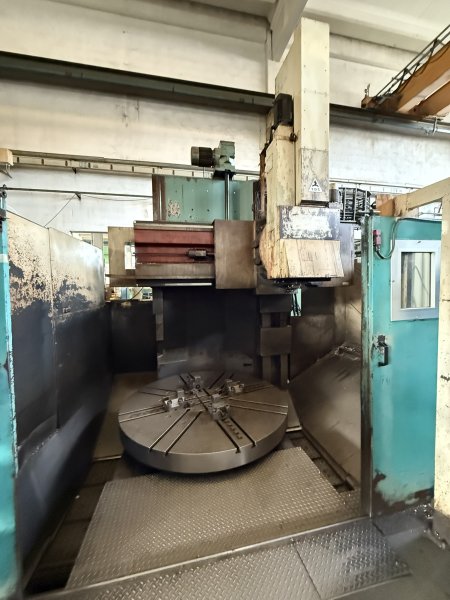

TOS MCSK 20 CNC VERTICAL LATHE

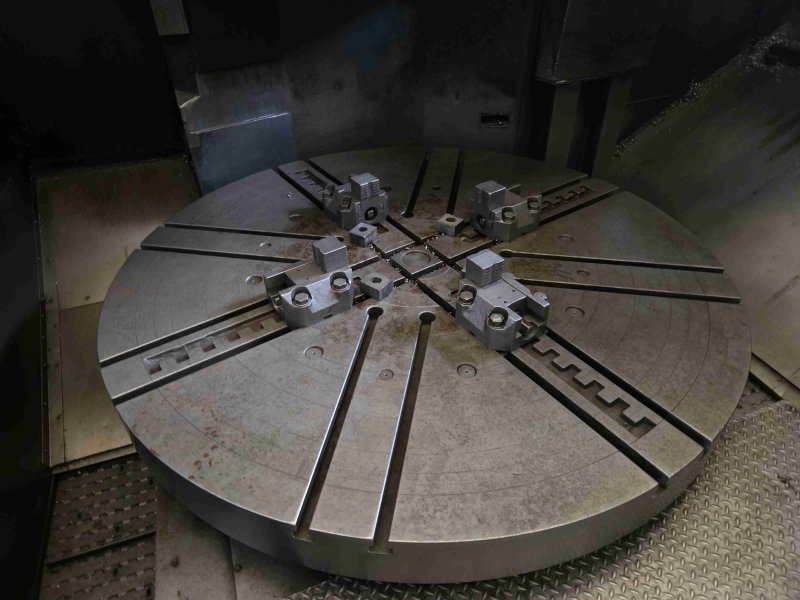

Table diameter: 2,000 mm
Max. working diameter: 2,200 mm
Max. working height: 1,800 mm

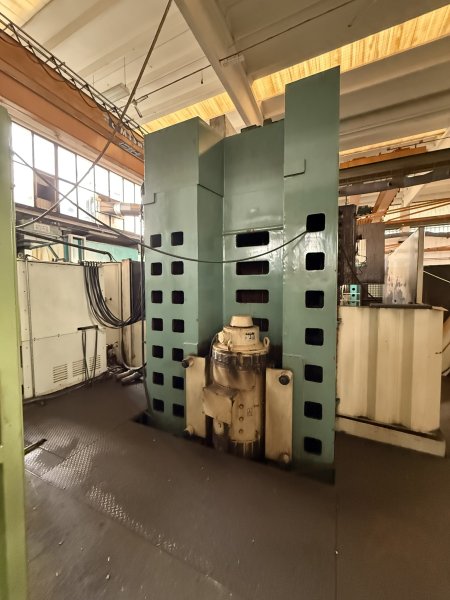

Table motor power: 60 kW
Table rotation speed: 2.5 ÷ 250 rpm
Table capacity: 20 t ...
TOS MCSK 20 CNC VERTICAL LATHE
Table diameter: 2,000 mm
Max. working diameter: 2,200 mm
Max. working height: 1,800 mm
Table motor power: 60 kW
Table rotation speed: 2.5 ÷ 250 rpm
Table capacity: 20 tons

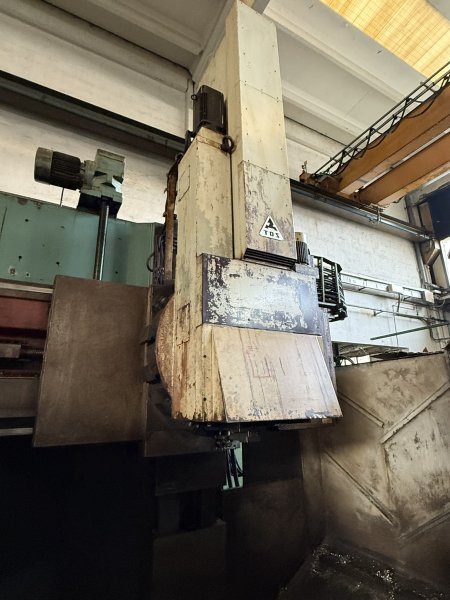

1 vertical ram slide for turning and milling:
- vertical travel: 1,000 mm
- milling motor power: 17 kW
- milling speed: 8.5 ÷ 3,000 rpm

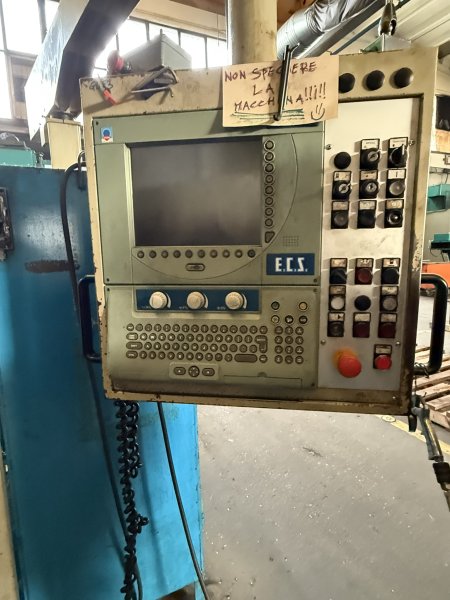

ECS 4800 CNC
Total weight: 38 tons
Year of construction/overhaul 1984/98
Complete with:
- "C" axis positioning, 5° indexing
- 15-slot tool magazine
- Chip conveyor
- Various tool holders
- Fairing
