MORI SEIKI NT 3200DCG /1000SZ 2010
- Condition: used
- published: 08/05/2026
- 26IND49064
Technical data
- Condition: used
- Year: 2010
Description

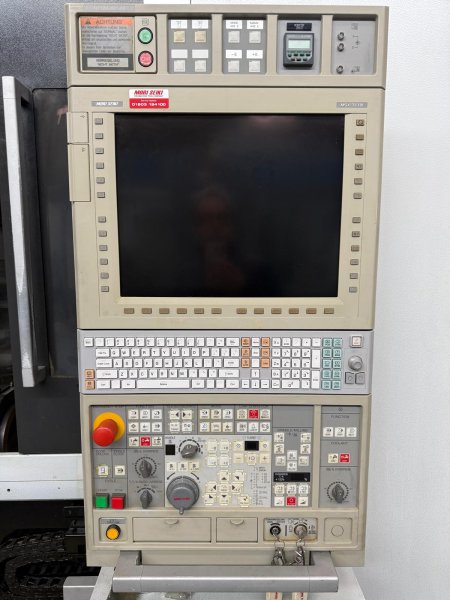

Numerical Control: FANUC FS-31iA5 (MAPPS 4)
Capacity
X-axis travel mm: 685
Y-axis travel mm: 125
Turning length mm: 1,045
Swing diameter mm: ø: 600
Bar capacity mm: 65

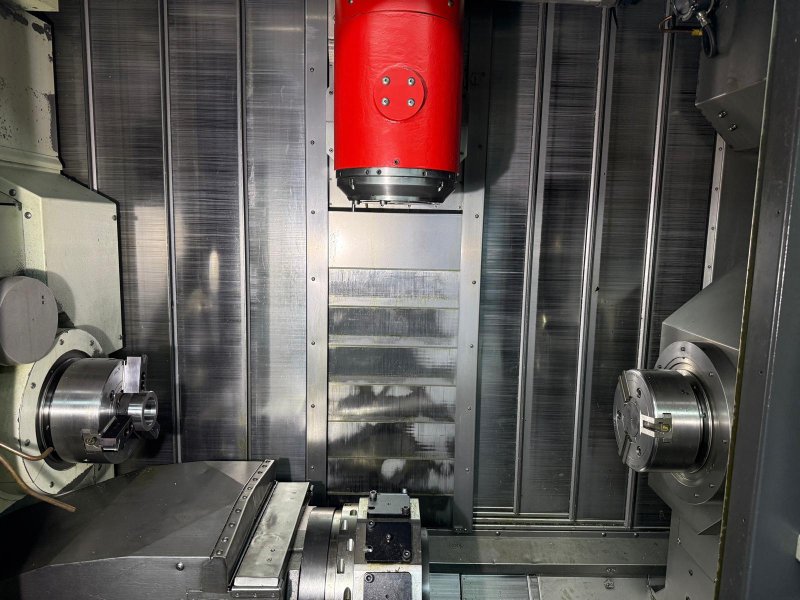

Turning-milling spindle
Full in ...
Numerical Control: FANUC FS-31iA5 (MAPPS 4)
Capacity
X-axis travel mm: 685
Y-axis travel mm: 125
Turning length mm: 1,045
Swing diameter mm: ø: 600
Bar capacity mm: 65
Turning-milling spindle
Full indexing specifications: YES
B-axis angle: 120º FULL INDEXING SPECIFICATION
Spindle rotation speed rpm: 12,000
Spindle power kW: 18.5/11

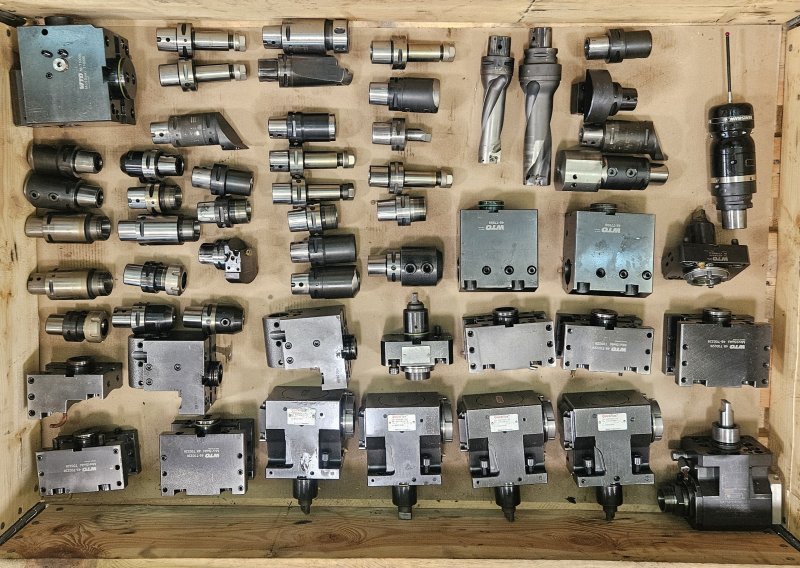

Tool magazine
Number of positions: 80
Tool holder type: CAPTO C5
Maximum tool length mm: 250
Maximum tool diameter mm: 70 130
Maximum tool weight: 5 kg

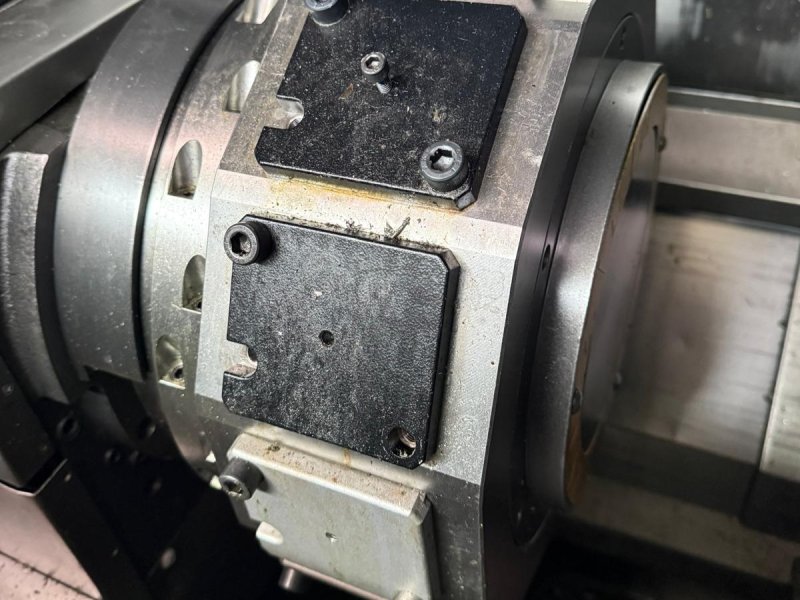

Lower turret
Number of tool positions: 12
Driven tools, power kW: 5.5 / 3.7

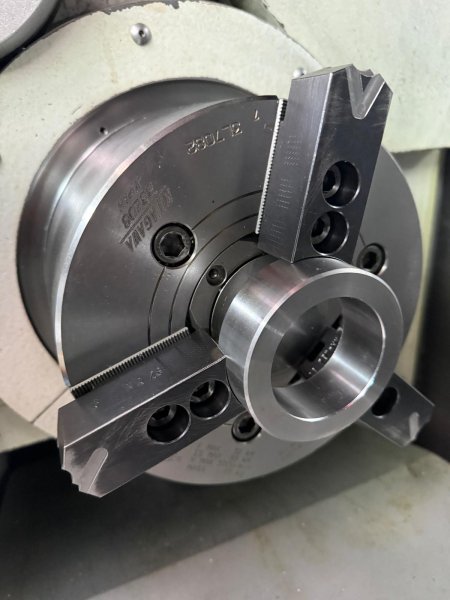

Main spindle
Spindle rotation speed rpm: 5,000
Spindle power kW: 25/22 (100%/40% DC)
Bar passage mm: ø: 73

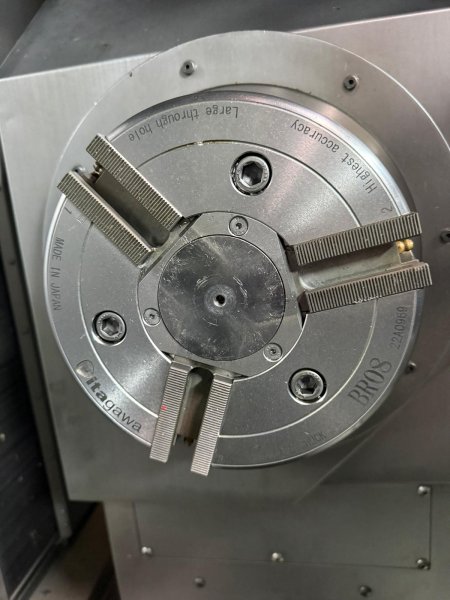

Counter spindle
Spindle rotation speed rpm: 5,000
Spindle power kW: 25/22 (100%/40% DC)
Bar passage (??): 73
Equipment
Rotating head
Status indicator light
Foot switch (double) for main and counter spindle
Precision NC rotary table, rapid traverse and feed rate 100 1/min, including system Direct measurement
Oil skimmer
Linear scales
RENISHAW MP700
LG-10 Gantry loader; 10 pallets, 10 kg per hand, pieces of Ø200 x 150 (W x H)
Operating time
Powered: 76,510
Spindle 1: 11,521
Spindle 2: 9,271

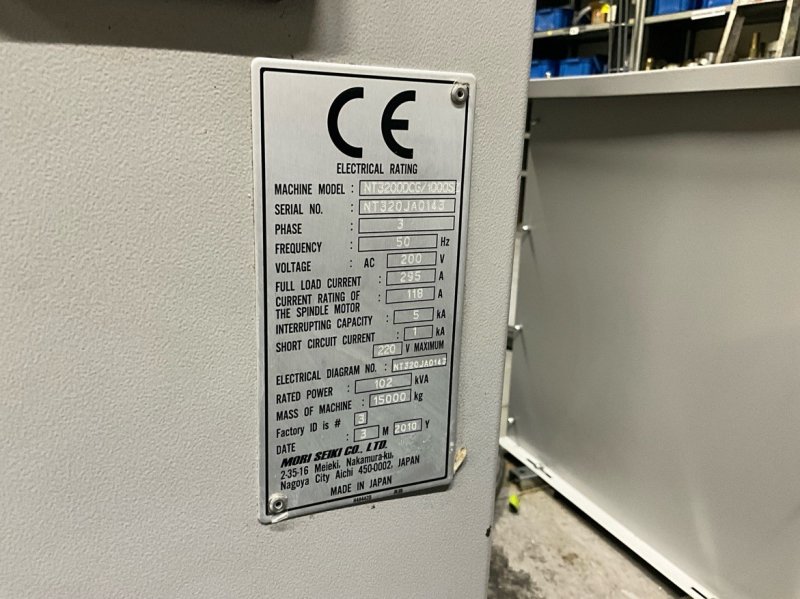

Nominal power kVA: 102
Main machine dimensions / weight
Length mm: 8,000
Width mm: 4,000
Height mm: 3,000
Weight kg: 15,000
