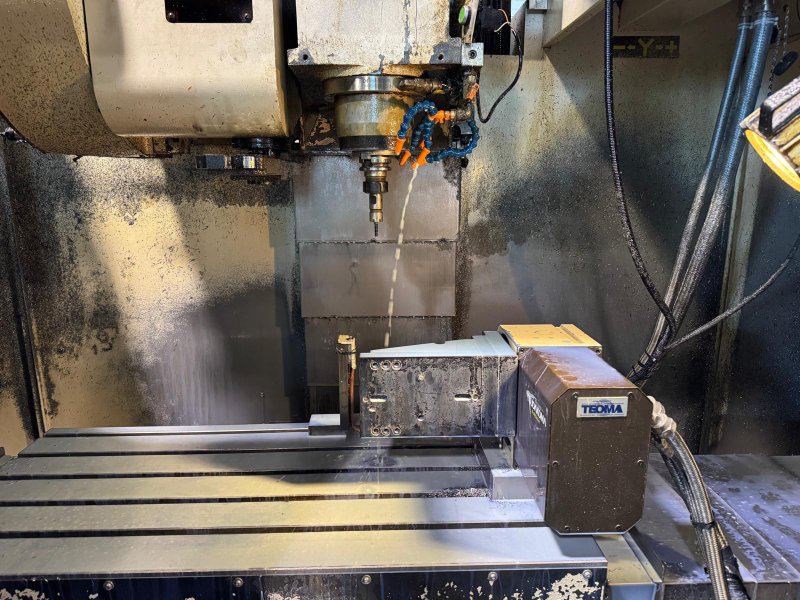

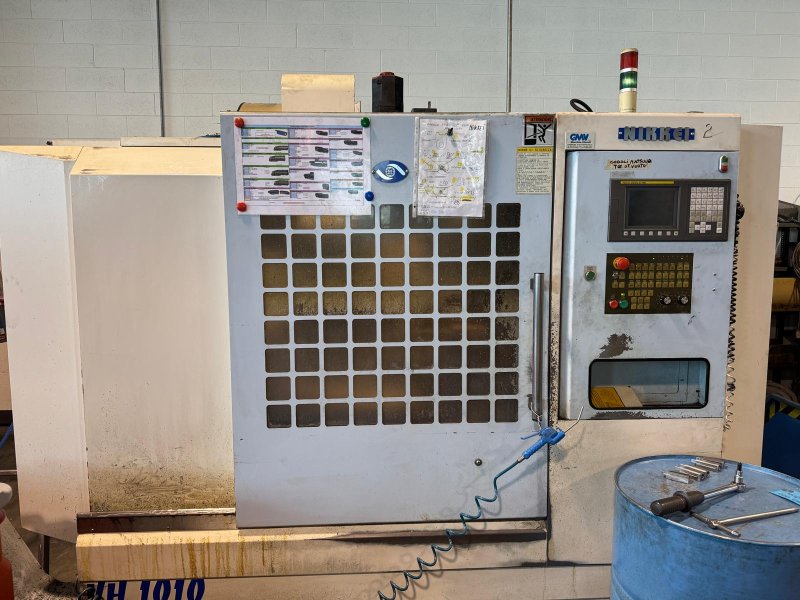

NIKKEI VH1010 2008
- Condition: used
- published: 26/05/2026
- 26IND49117
Technical data
- Condition: used
- Year: 2008
- X-axis travel: 1001/2000 mm
Description
FANUC 0iMD CNC
Table
Table dimensions: 1200x450 mm
T-slot dimensions/pitch: 3/125 mm
Maximum allowable weight: 850 kg
Capacity
Longitudinal X-axis travel: 1010 mm
Transversal Y-axis travel: 500 mm
Ver ...
FANUC 0iMD CNC
Table
Table dimensions: 1200x450 mm
T-slot dimensions/pitch: 3/125 mm
Maximum allowable weight: 850 kg
Capacity
Longitudinal X-axis travel: 1010 mm
Transversal Y-axis travel: 500 mm
Vertical Z-axis travel: 520 mm
Spindle
Spindle mount: BT40 ISO
Rotation speed: 10,000 rpm
Motor power: 11-15 kW
Feed rates
X, Y, Z-axis rapid traverse: 24,000/24,000/10,000 mm/min
Tool magazine
Tool stations: 24
Specifications:
Refrigerator cooling system for spindle line
High-pressure through-spindle 20-bar pump, cabin washdown, chip conveyor belt, electronic gear change.
Integrated Tsudakoma 4th-axis table with counter-support.
Working
CE compliant
