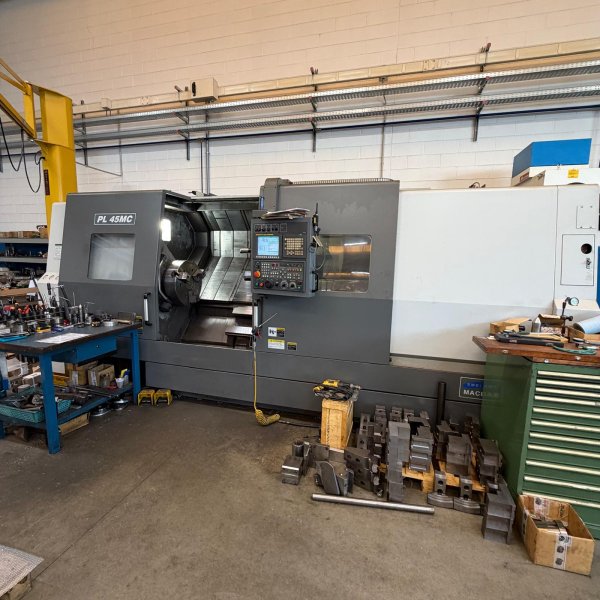

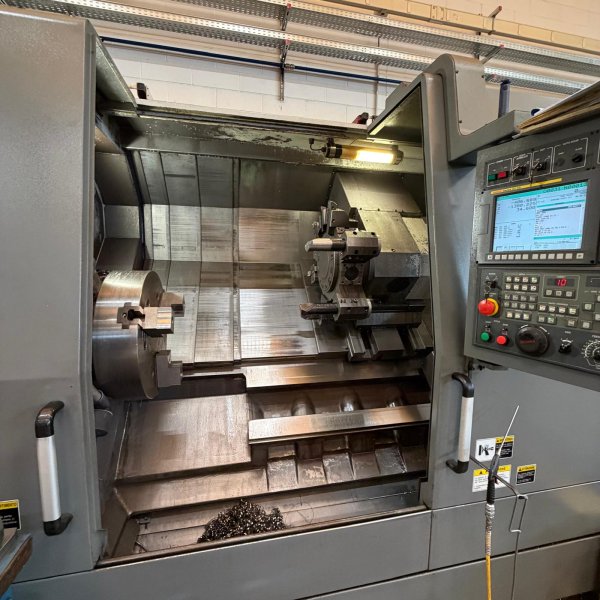

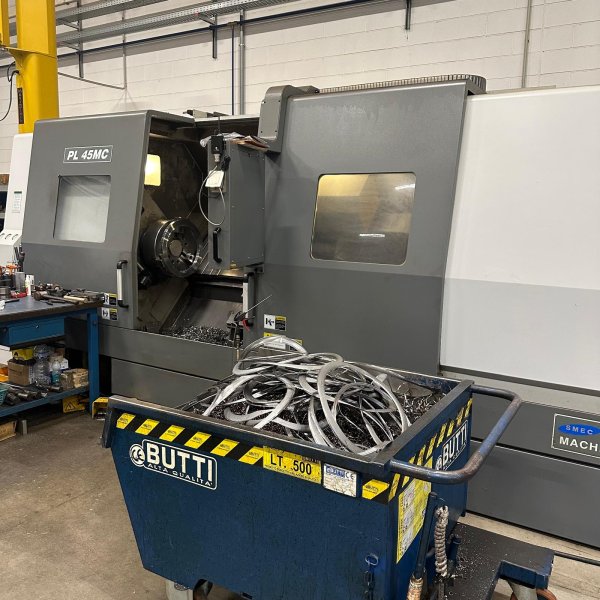

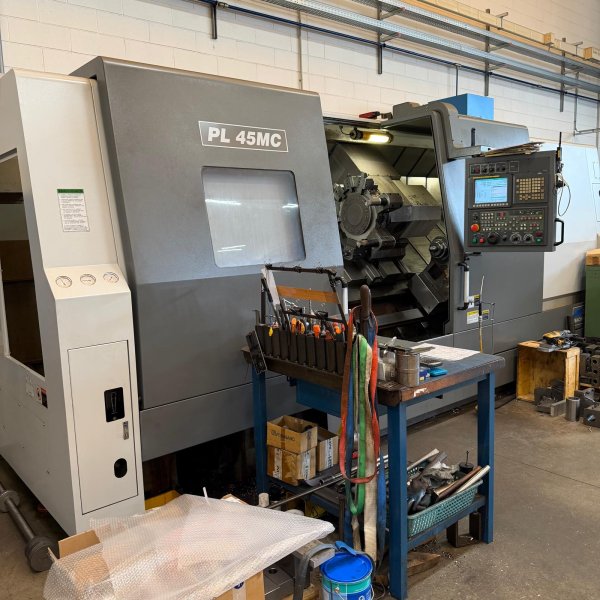

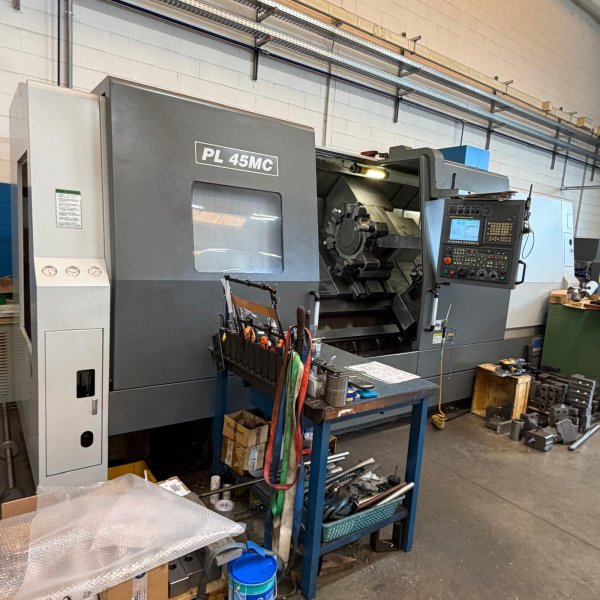

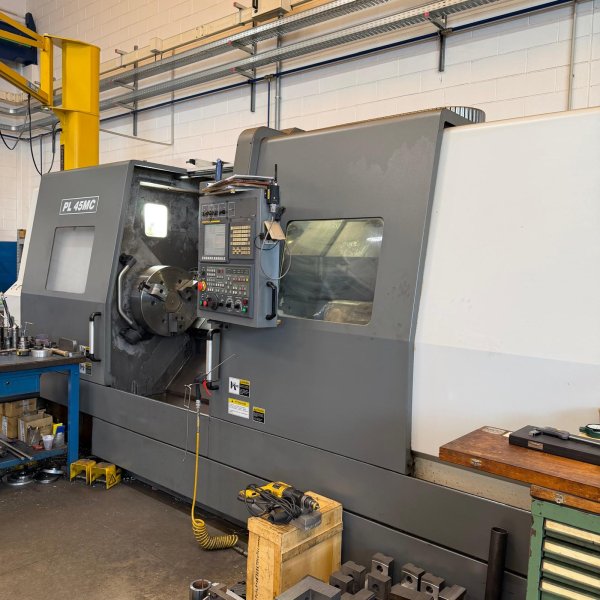

SMEC PL45MC/2200 2010
- Condition: used
- published: 26/05/2026
- 26IND49119
Technical data
- Condition: used
- Year: 2010
Description
FANUC 0iTD CNC

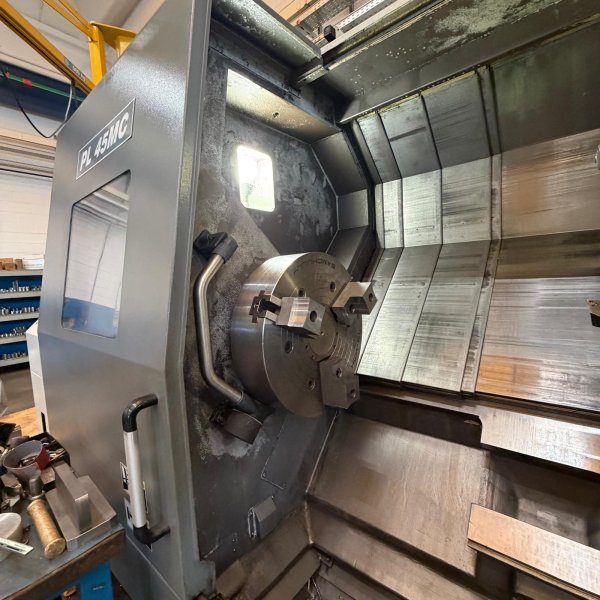

Self-centering diam. 450 mm ASA 11
Capacity
Turning length: 2255 mm
1st Spindle
Spindle connection: A2-11 ASA
Bar capacity: 117 mm
Rotation speed: 10-2000 rpm
Motor power: 30/37 kW
C-a ...
FANUC 0iTD CNC
Self-centering diam. 450 mm ASA 11
Capacity
Turning length: 2255 mm
1st Spindle
Spindle connection: A2-11 ASA
Bar capacity: 117 mm
Rotation speed: 10-2000 rpm
Motor power: 30/37 kW
C-axis: 6 degrees

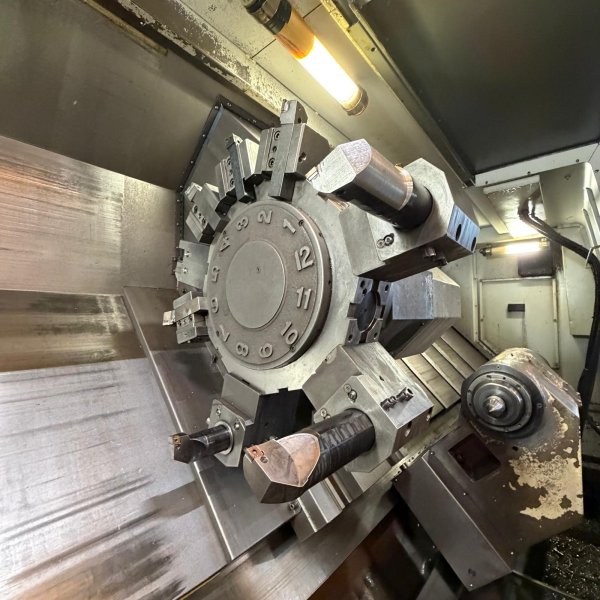

1st Turret
Motorized turret: 12
Tailstock
Taper: 5 cm
Specific properties
Maximum turning diameter over bed: 775 mm
Maximum turning diameter over slide: 630 mm
Maximum turning diameter over bed: 690 mm
SPINDLE: Spindle bore diameter: 132 mm
Internal tie rod diameter: 117 mm
Main spindle motor power: 30/37 kW
Number of mechanical speed ranges: nr 2
Maximum spindle motor torque (cont./30 min) Nm 1980/2450
CARRIAGE
X-axis travel 350 mm
Z-axis travel 2330 mm
X/Z-axis motor power 7/7 kW
Carriage guide inclination 45 degrees
TAILSTOCK
Tailstock travel to carriage 2255 mm
Quill diameter 160 mm
Quill stroke 150 mm
Maximum quill thrust 2851 kg
Machine dimensions: 6521 x 2154 x 2374 mm
Working
