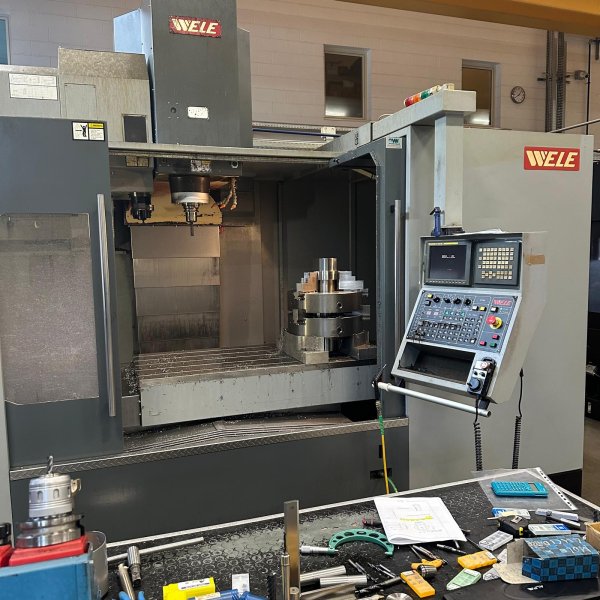

WELE AA1680#50 2009
- Condition: used
- published: 26/05/2026
- 26IND49120
Technical data
- Condition: used
- Year: 2009
- X-axis travel: 1001/2000 mm
Description
FANUC18iM CNC
Table
Table dimensions: 1750x800 mm
Maximum allowable weight: 2000 kg
Capacity
Longitudinal X-axis travel: 1600 mm
Transversal Y-axis travel: 800 mm
Vertical Z-axis travel: 800 mm
Spindl ...
FANUC18iM CNC
Table
Table dimensions: 1750x800 mm
Maximum allowable weight: 2000 kg
Capacity
Longitudinal X-axis travel: 1600 mm
Transversal Y-axis travel: 800 mm
Vertical Z-axis travel: 800 mm
Spindle
Spindle mount: 50 ISO
Rotation speed: 6000 rpm
Motor power: 18-22 kW
Feed rates
Rapid X, Y, Z axes: 24000/24000/20000 mm/min
Tool magazine
Tool stations: 30
Specific Properties
Machine Dimensions: 4300 x 3100 x 3100 mm
Distance between table top and spindle nose: 200-1000 mm
Distance between table and floor: 1050 mm
Working
