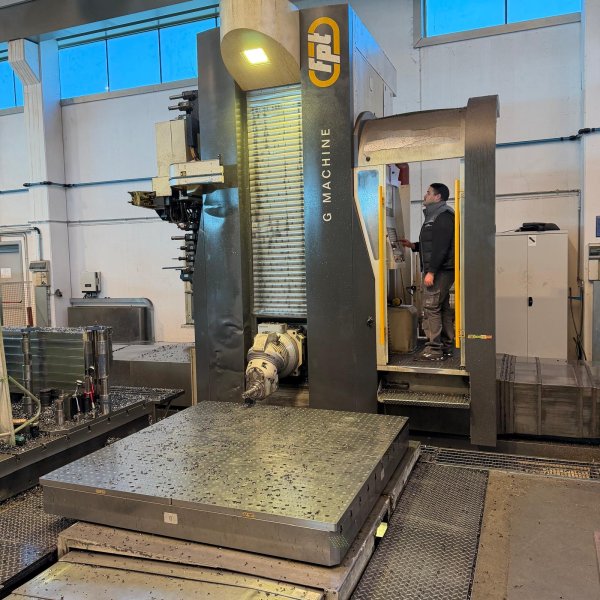

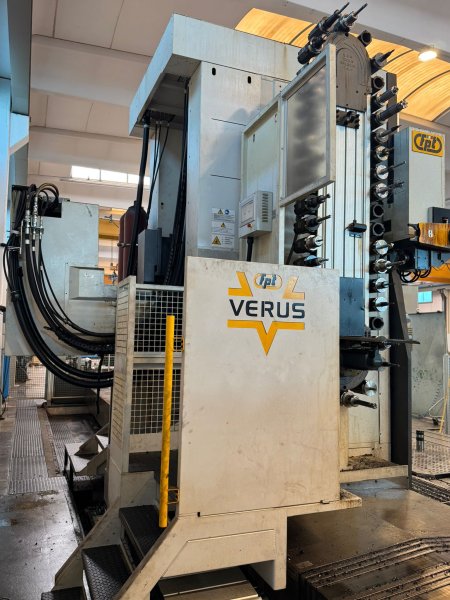

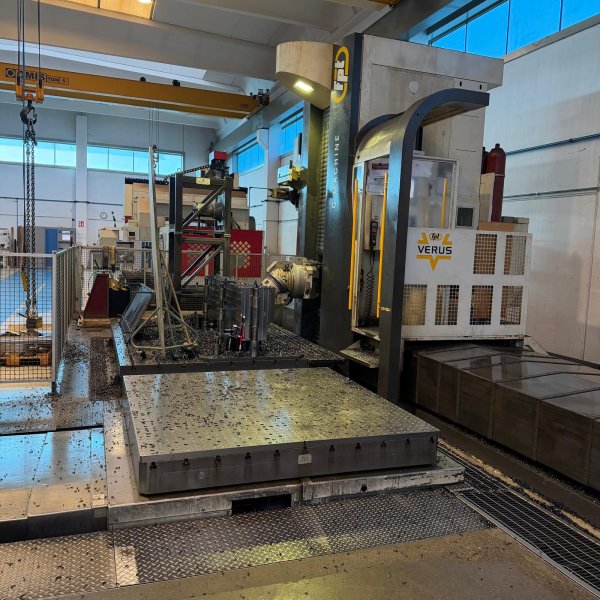

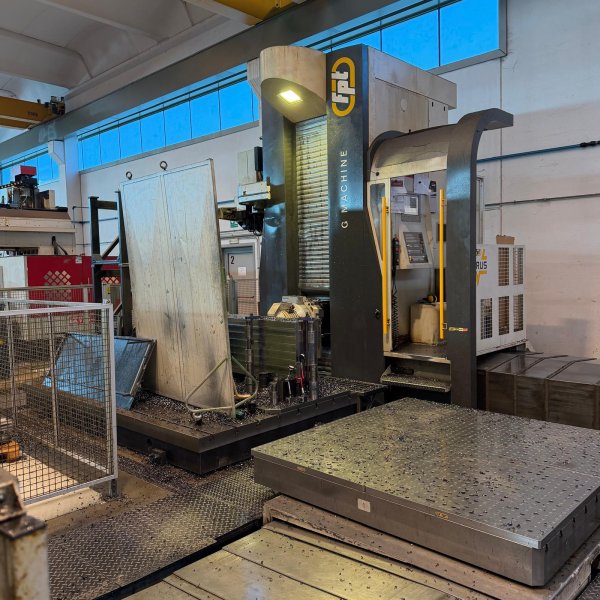

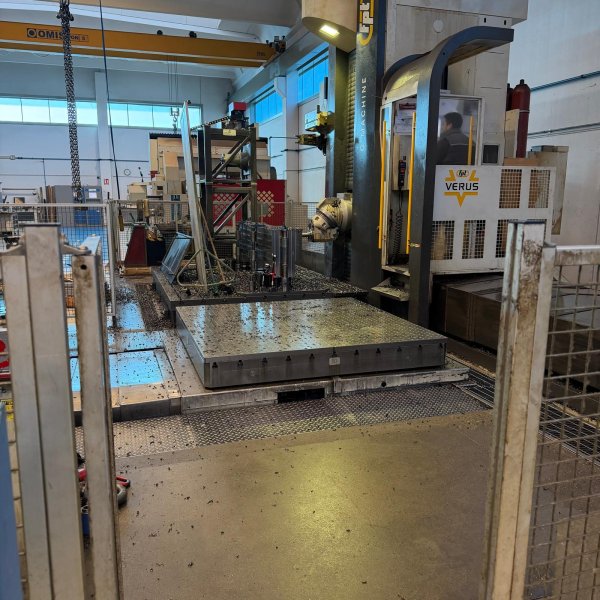

FPT verus 2016
- Condition: used
- published: 26/05/2026
- 26IND49122
Technical data
- Condition: used
- Year: 2016
- X-axis travel: 4001/6000 mm
Description
CNC: HEIDENHAIN ITNC530 HSCI
Specifications
Rigid tapping for mechanical heads. AUTOCAL software for automatic calibration. 3D workpiece alignment measuring probe.
Table
Table dimensions: 2000x2000 m ...
CNC: HEIDENHAIN ITNC530 HSCI
Specifications
Rigid tapping for mechanical heads. AUTOCAL software for automatic calibration. 3D workpiece alignment measuring probe.
Table
Table dimensions: 2000x2000 mm
Table load capacity: 15,000 kg
Capacity
Longitudinal X-axis travel: 6000 mm
Transverse Y-axis travel: 1250 mm
Vertical Z-axis travel: 2000 mm
Rapid movements: 35 m/min
Specific Features
Semi-automatic accessory change
34 kW spindle motor
Rotation speed at constant power 400-5000 rpm
Maximum torque 830 Nm
Maximum feed speed 35000 mm/min
Acceleration 1.5 m/sec
Maximum spindle rotation speed 5000 rpm

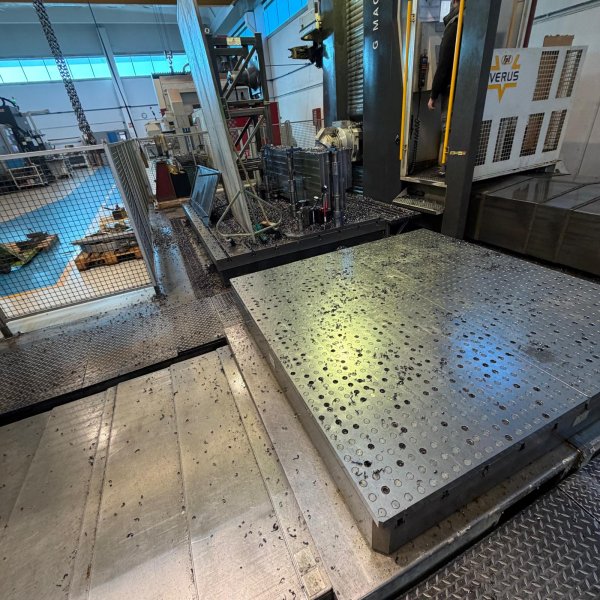

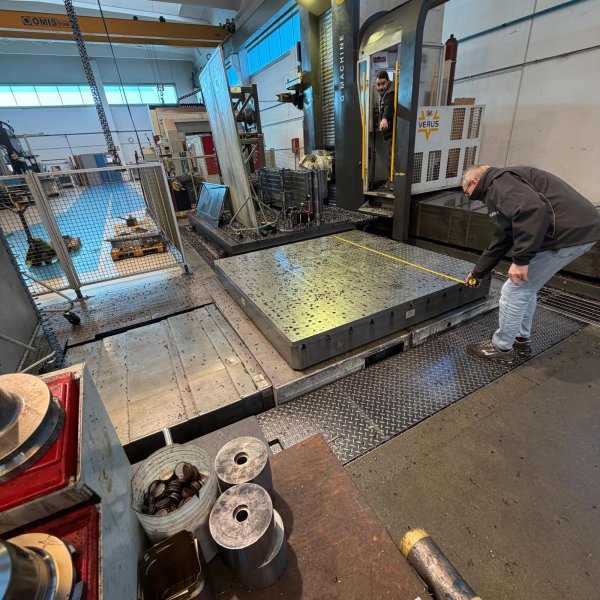

TRT15 hydrostatic rotary table 2000 x 2000 mm
Bi-rotary universal head with millesimal positioning, BT 50 taper

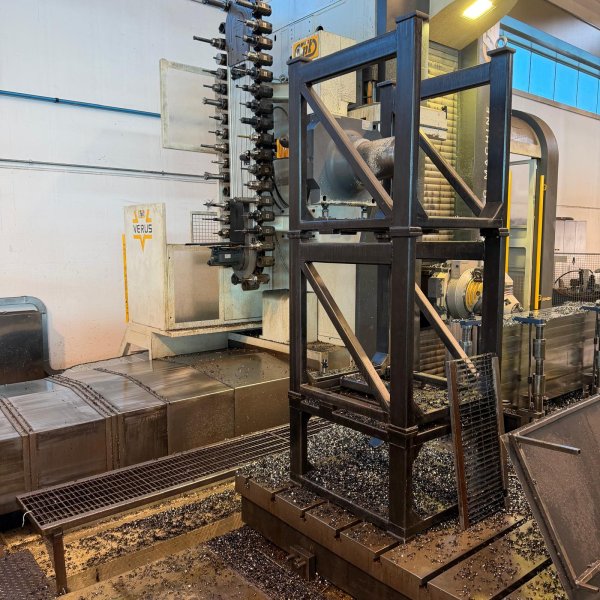

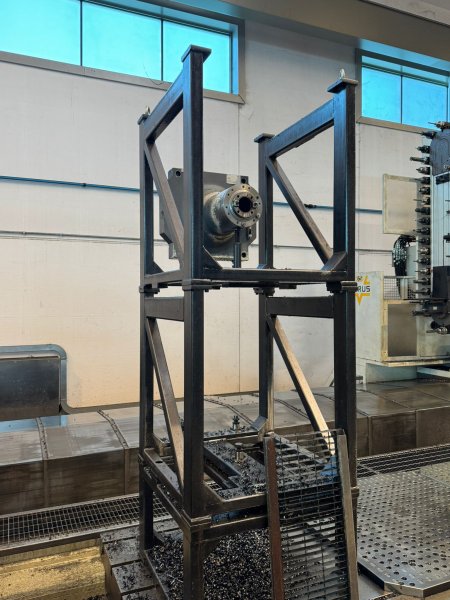

Double cradle for unloading/loading two milling heads with management software

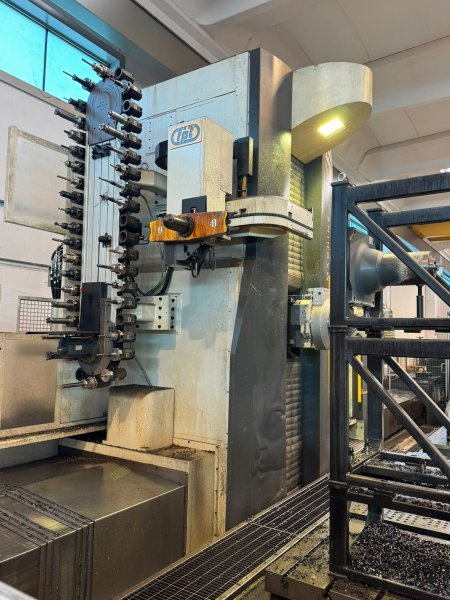

40-slot ISO50 chain tool magazine
High-pressure external/internal tool coolant with paper filter, 4 bar external/20 bar internal
Compressed air internal tool coolant
Chip conveyor with right-side exit
Remote control panel
Working
