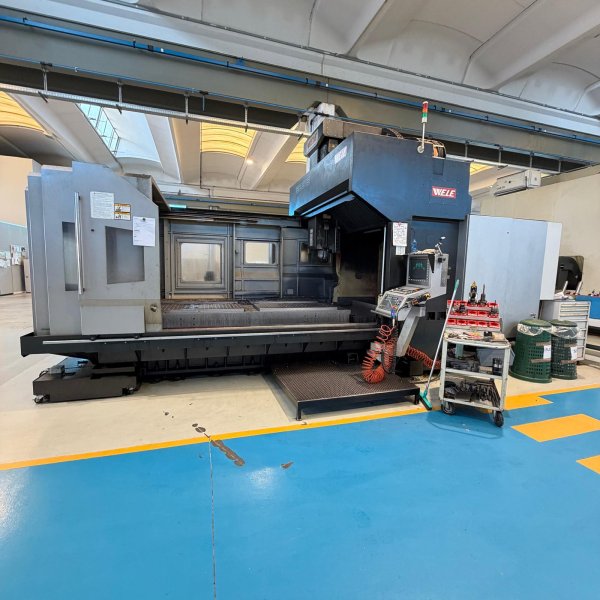

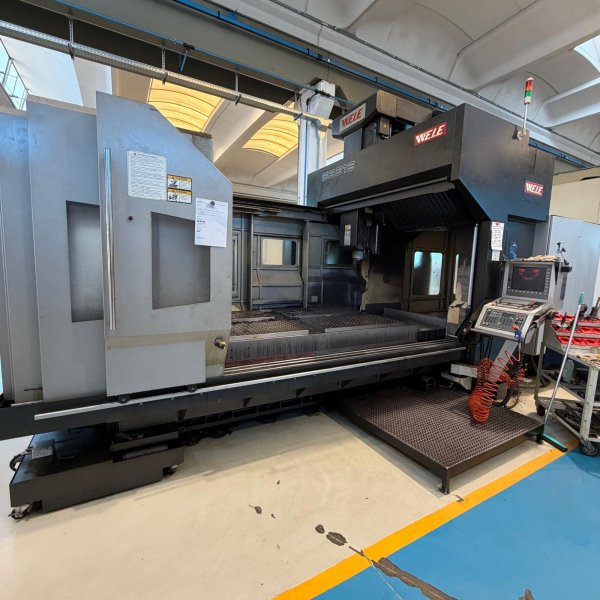

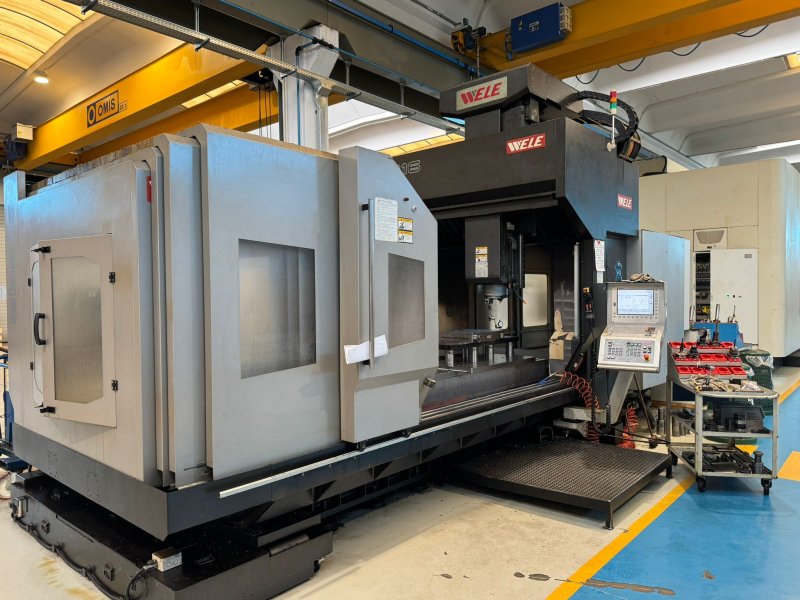

WELE SB-316 2016
- Condition: used
- published: 26/05/2026
- 26IND49123
Technical data
- Condition: used
- Year: 2016
- X-axis travel: 3001/4000 mm
Description
CNC: HEIDENHAIN ITNC530
Rigid tapping and helical interpolation. Geared spindle. 20 bar high-pressure system.
Full coverage. XYZ optical scales. Belt chip conveyor.
Table
Table dimensions: 3000x1500 m ...
CNC: HEIDENHAIN ITNC530
Rigid tapping and helical interpolation. Geared spindle. 20 bar high-pressure system.
Full coverage. XYZ optical scales. Belt chip conveyor.
Table
Table dimensions: 3000x1500 mm
T-slot dimensions/pitch: 22x170x9 mm
Maximum allowable weight: 10,000 kg
Capacity
Longitudinal X-axis travel: 3060 mm
Transverse Y-axis travel: 1600 mm
Vertical Z-axis travel: 800 mm
Spindle
Spindle mount: BT50 ISO
Rotation speed: 10-6000 rpm
Motor power: 22-26 kW
Feed rates
X, Y, Z axis rapid traverse: 24,000/24,000/10,000 mm/min
Tool magazine
Tool stations: 32
Specific properties
Distance between table top and spindle nose: 200-1000 mm
Distance between columns: 1700 mm
Positioning accuracy: +- 0.005 mm
Repeatability: +- 0.003 mm
Machine dimensions: 8310 x 3790 x 4350 mm
Machine weight: 27,000 kg
Working
