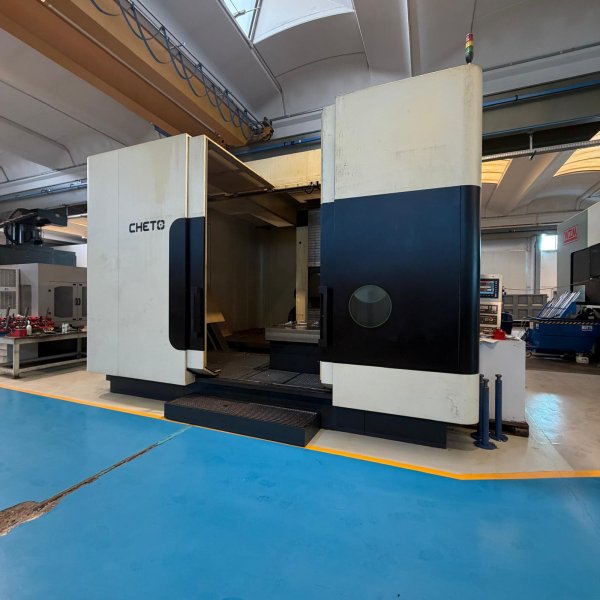

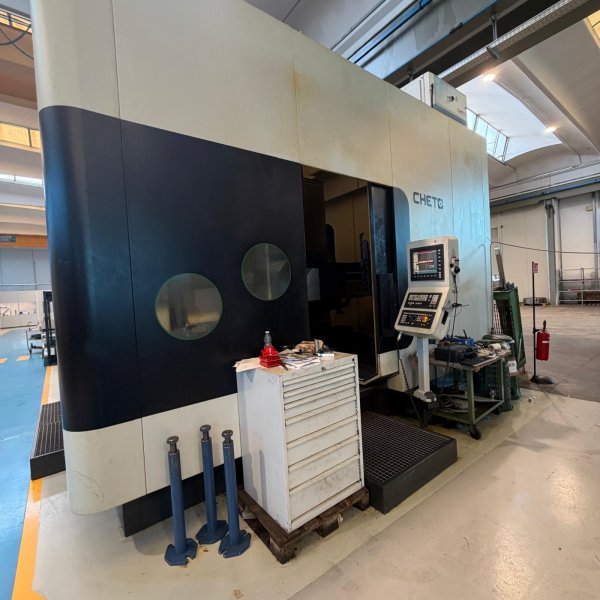

CHETO IX2000 2017
- Condition: used
- published: 26/05/2026
- 26IND49124
Technical data
- Condition: used
- Year: 2017
Description

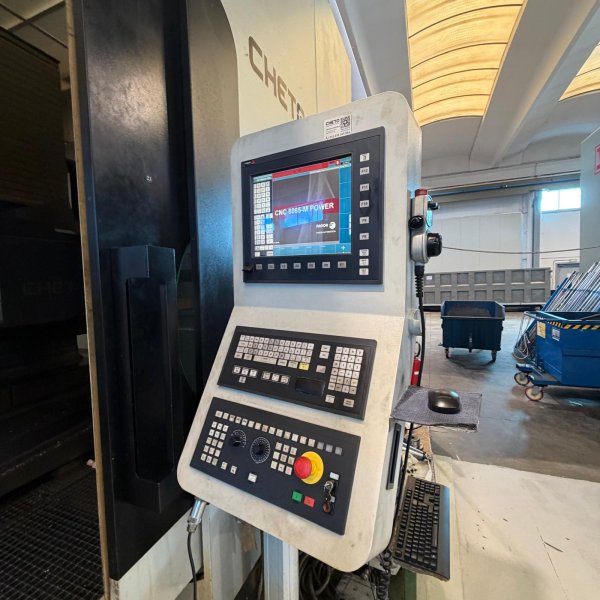

CNC: FAGOR 8065

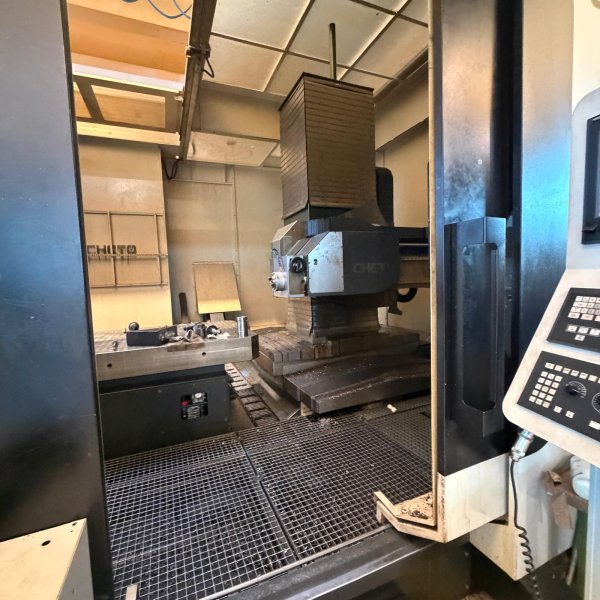

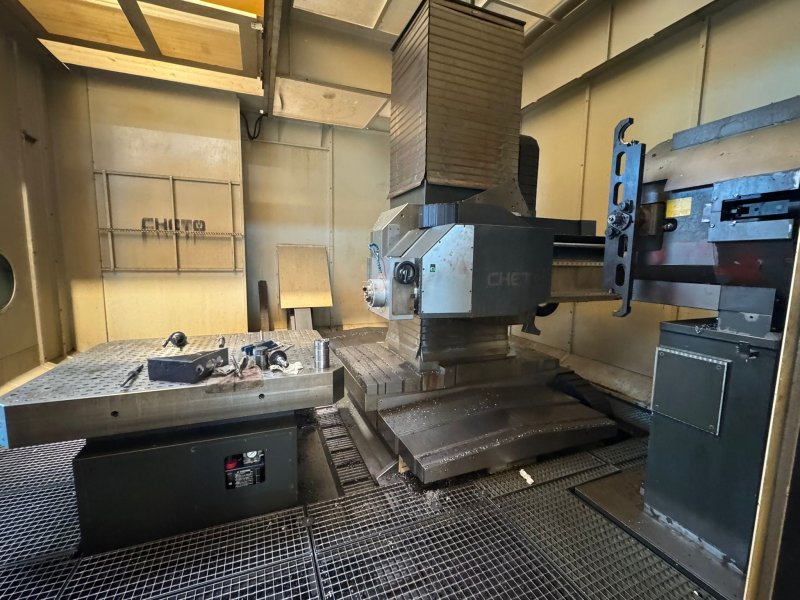

Milling, tapping, and deep drilling machine, 5 linear axes X, Y, Y1, Z, and W. Rotary axis on the B-table.
With 3D CAD simulation, WISE PLUS system, electric cabinet refrigeration, and ...
CNC: FAGOR 8065
Milling, tapping, and deep drilling machine, 5 linear axes X, Y, Y1, Z, and W. Rotary axis on the B-table.
With 3D CAD simulation, WISE PLUS system, electric cabinet refrigeration, and fume extraction system.
Capacity
Drilling capacity with gun drill: 40 mm
X-axis table travel: 2000 mm
Y-axis ram travel: 1500 mm
Z-axis column travel: 700 mm
Spindle taper connection: 50-DIN 69871 ISO
Motor power: 22/33 kW
Table dimensions: 1600 x 1300 mm
Specific properties
Drilling depth from Ø 5 to Ø 40 mm
Maximum drilling depth: 2250 mm
Milling with cutting tools up to Ø 60 mm
Drilling axis tilt: W -15° A +25°
Milling capacity: 400 cm3/min

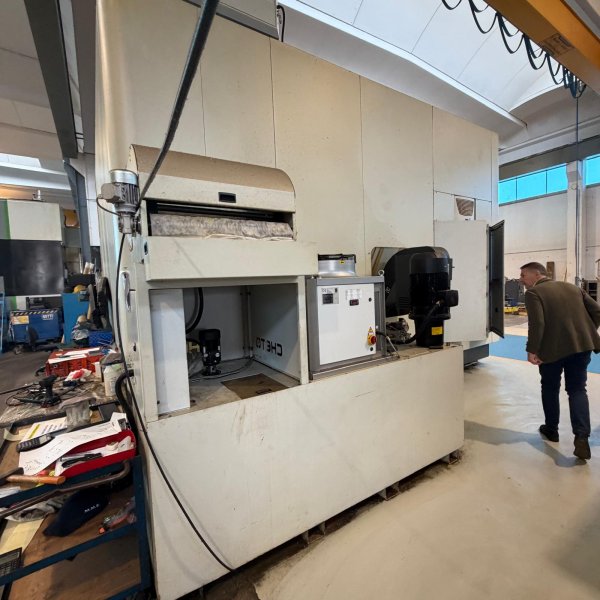

Filtration and cooling, 2000-liter tank
Maximum pressure: 80 bar
Drilling Direct with gun drills up to 20 mm with bushings

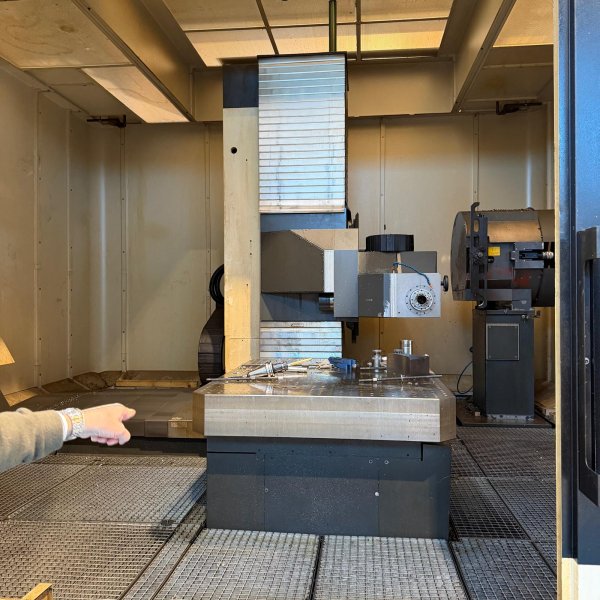

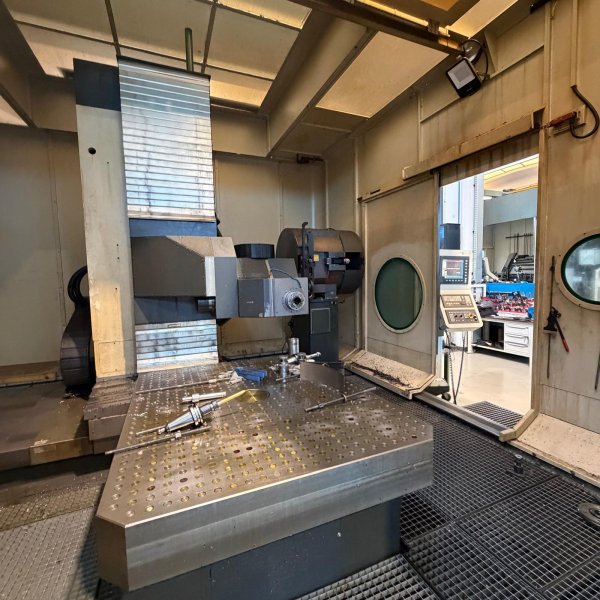

Rotary table with a maximum weight of 20,000 kg, 360,000 positions
9 T-slots, 18 mm H12, D=140 mm, accuracy +/- 0.2 sec
LINEAR AXES: X: 2000 mm – Y: 1500 mm – Z: 700 mm – W: 1630 mm
