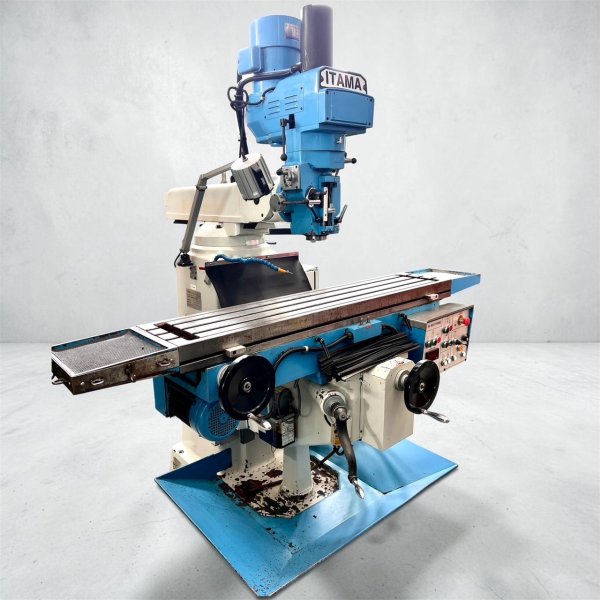

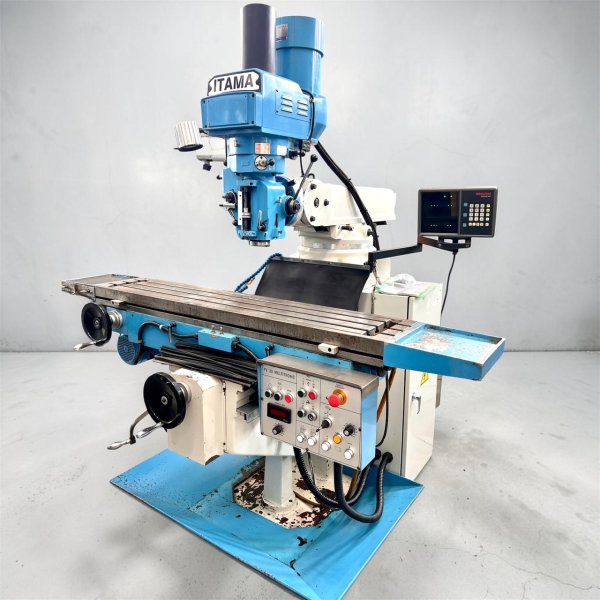

ITAMA FV30
- Condition: used
- published: 29/05/2026
- 26IND49136
Technical data
- Condition: used
- Year: undefined
Description
Table 1500 x 305 mm
Travel (X-Y-Z) 1000 x 390 x 400 mm

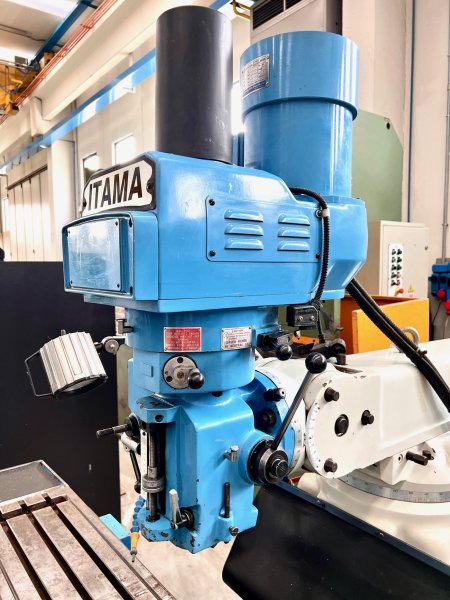

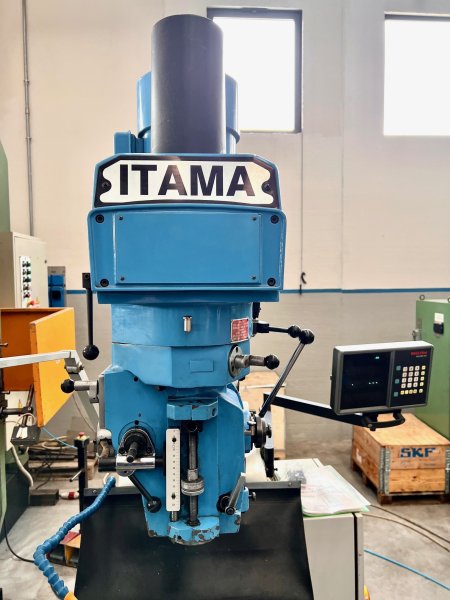

Vertical spindle mount ISO 40
Vertical spindle speed with inverter 70-4200 rpm
Quilt stroke 125 mm
90° right and left angular tilt
Vertical spin ...
Table 1500 x 305 mm
Travel (X-Y-Z) 1000 x 390 x 400 mm
Vertical spindle mount ISO 40
Vertical spindle speed with inverter 70-4200 rpm
Quilt stroke 125 mm
90° right and left angular tilt
Vertical spindle motor 5 HP
Overall dimensions 2000 x 1700 x 2300 mm
Weight approximately 1700 kg
COMPLETE WITH:
- 3-axis "ANILAM" digital readout
- Variable speed drive on vertical spindle
- Automatic tie rod tightening device on vertical spindle
- Automatic feed with inverter

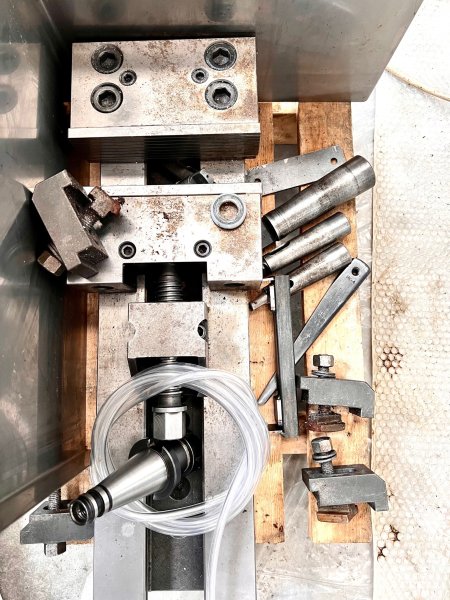

- Steel vice
Working
CE compliant
