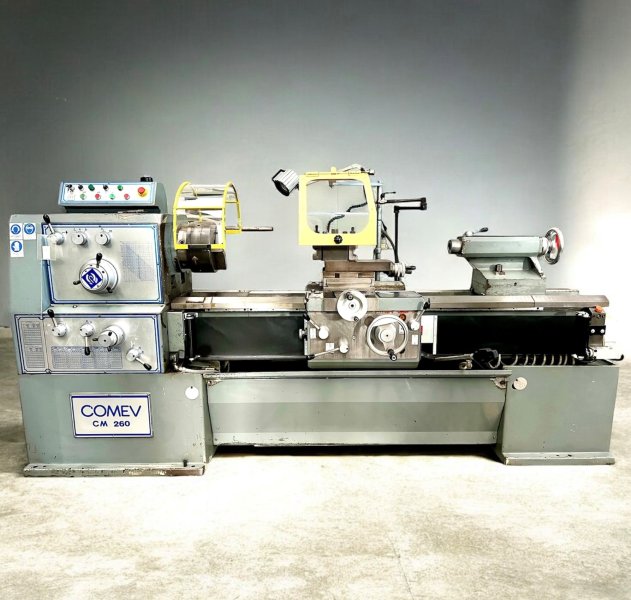

COMEV CM 260x1500
- Condition: used
- published: 03/06/2026
- 26IND49145
Technical data
- Condition: used
- Year: undefined
- Distance between tips : 0/1500 mm
- Tip height : 251/500 mm
Description
Center height above bed: 260 mm
Distance between centers: 1500 mm
Maximum turning diameter above bed: 520 mm
Turning diameter above slide: 320 mm
Spindle bore: 110 mm
Spindle connection: C.L. 8"
Tails ...
Center height above bed: 260 mm
Distance between centers: 1500 mm
Maximum turning diameter above bed: 520 mm
Turning diameter above slide: 320 mm
Spindle bore: 110 mm
Spindle connection: C.L. 8"

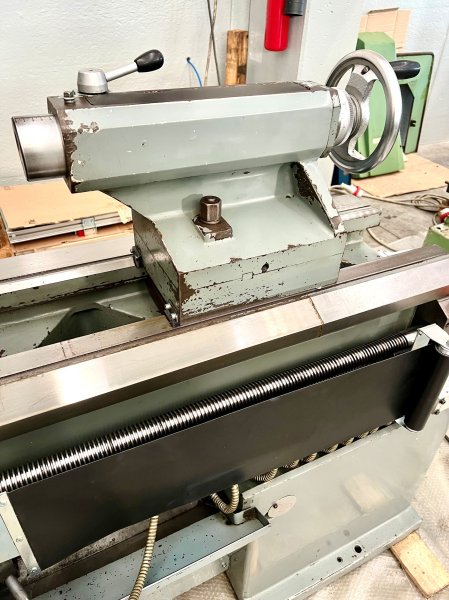

Tailstock taper 5 cm
Spindle speed 25-1610 rpm
Motor power 7.5 HP
Overall dimensions 3100 x 1000 x 1300 mm
Weight approximately 2300 kg
COMPLETE WITH:

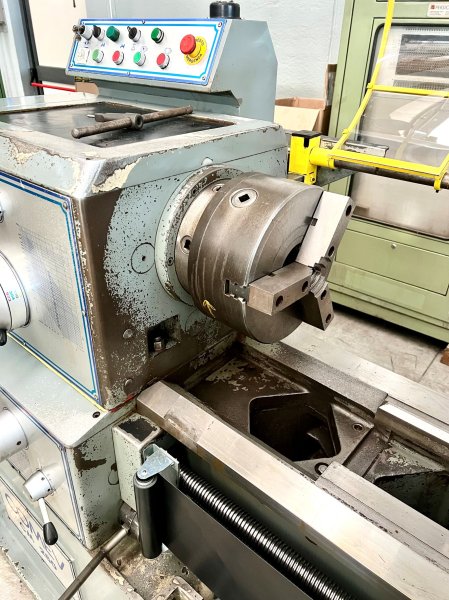

- MARIO PINTO self-centering chuck, diam. 270 mm, with 3+3+3 jaws

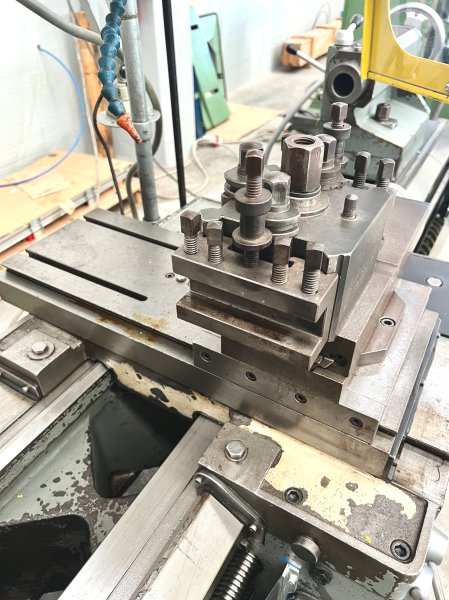

- RAPID type C universal turret with 5 tool holders
- Star stop

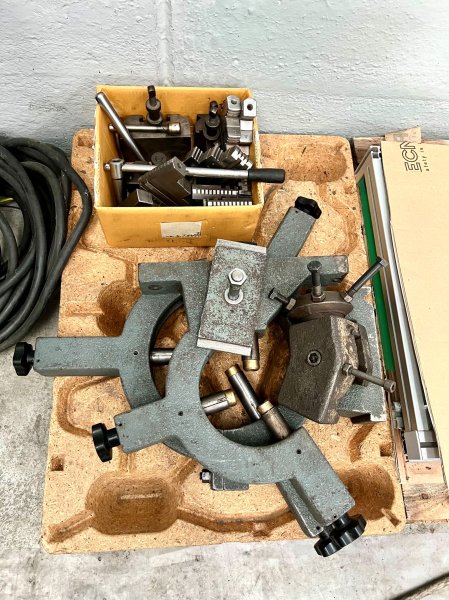

- Fixed steady rest
- Follow steady rest
Working
CE compliant
