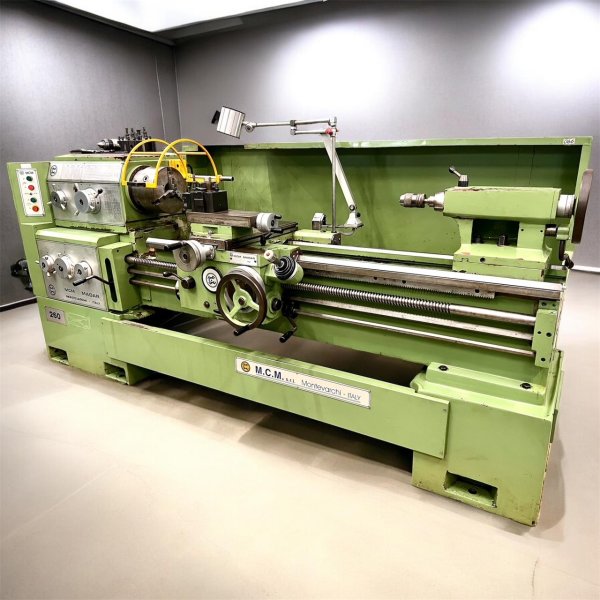

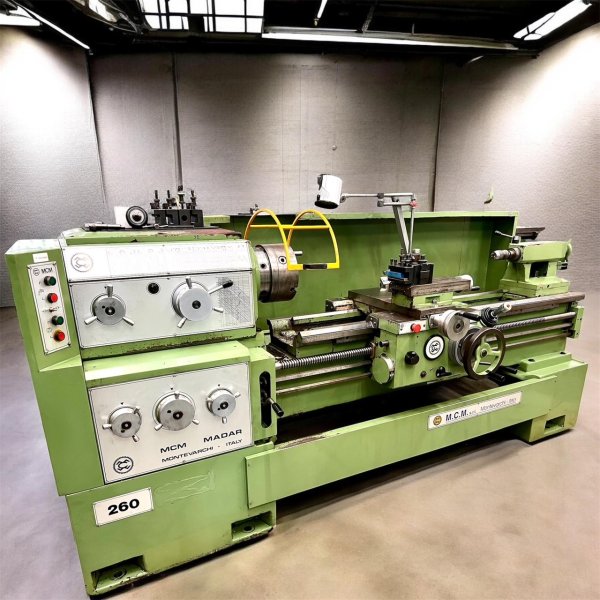

MCM 260x1500
- Condition: used
- published: 03/06/2026
- 26IND49146
Technical data
- Condition: used
- Year: undefined
- Distance between tips : 0/1500 mm
- Tip height : 251/500 mm
Description
Center height above bed: 260 mm
Distance between centers: 1500 mm
Maximum turning diameter above bed: 520 mm
Turning diameter above slide: 310 mm
Spindle bore: 82 mm
Spindle connection: 8" C.L.
Tailst ...
Center height above bed: 260 mm
Distance between centers: 1500 mm
Maximum turning diameter above bed: 520 mm
Turning diameter above slide: 310 mm
Spindle bore: 82 mm
Spindle connection: 8" C.L.
Tailstock taper: 5 cm
Spindle speed: 18-1600 rpm
Overall dimensions: 3100 x 1000 x 1300 mm
Weight: approximately 2600 kg
COMPLETE WITH:

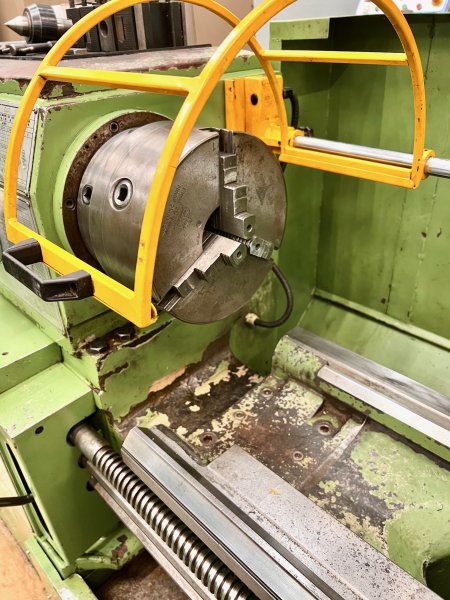

- MARIO PINTO self-centering chuck, diam. 250 mm, with 3 jaws, 1/4" swivel chuck

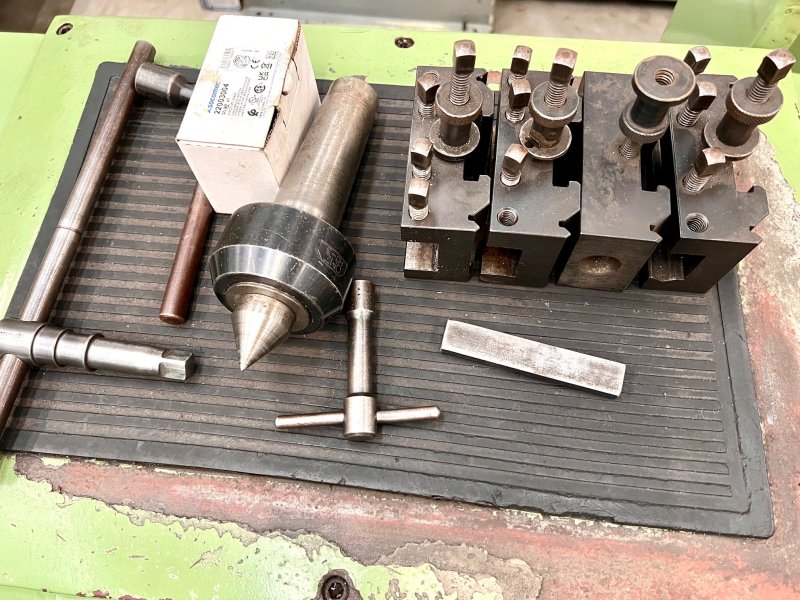

- ALGRA type B universal turret with 5 tool holders
- Rapid feeds

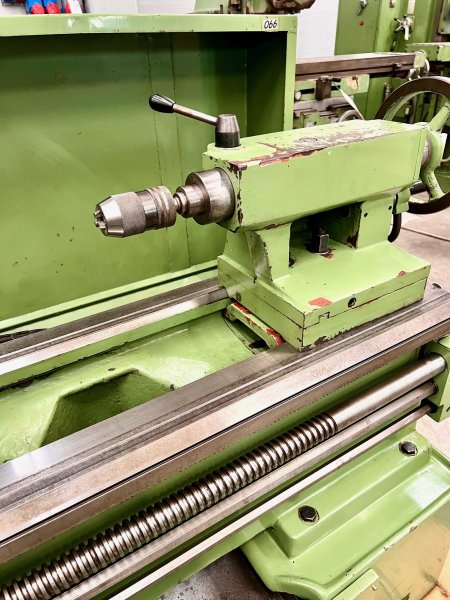

- 5 cm rotating tailstock
Working
