STANITALIANA SAMAT 400L
- Condition: used
- published: 03/06/2026
- 26IND49147
Technical data
- Condition: used
- Year: undefined
- Distance between tips : 0/1500 mm
- Tip height : 0/250 mm
Description
Center height above bed: 200 mm
Distance between centers: 1500 mm
Maximum turning diameter above bed: 400 mm
Turning diameter above slide: 220 mm
Spindle bore: 100 mm 45
Spindle mount: DIN 55022 6"
Ta ...
Center height above bed: 200 mm
Distance between centers: 1500 mm
Maximum turning diameter above bed: 400 mm
Turning diameter above slide: 220 mm
Spindle bore: 100 mm 45
Spindle mount: DIN 55022 6"
Tailstock taper: 5 cm
Spindle speed: 25-2000 rpm
Motor power: 5.5 kW
Overall dimensions: 3100 x 1200 x 1500 mm
Weight: approximately 2600 kg
COMPLETE WITH:
- 2-axis digital readout

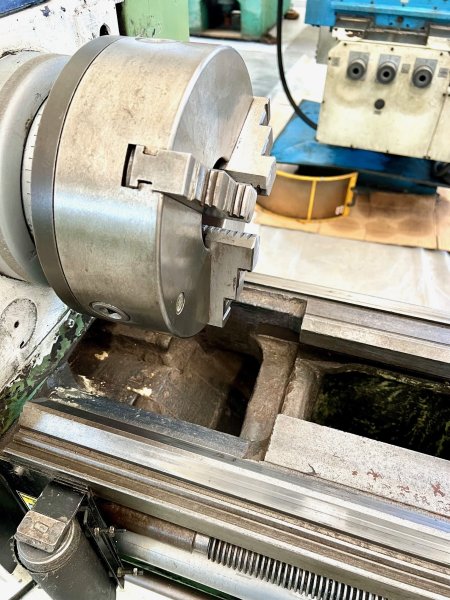

- 250 mm diameter self-centering chuck with 3+3 jaws

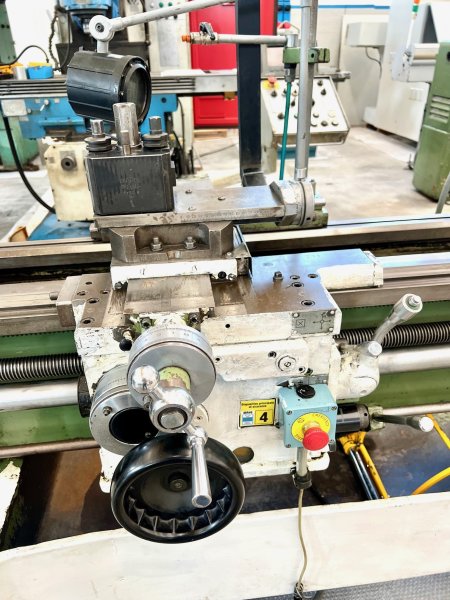

- RAPID ORIGINAL type B universal turret with 3 tool holders
- Rapid feeds

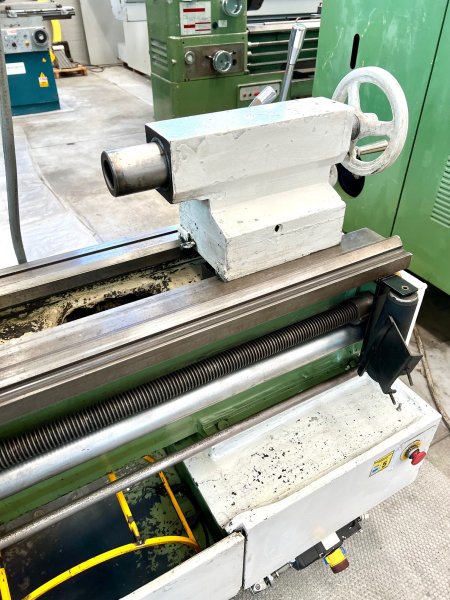

- 5 cm rotating tailstock

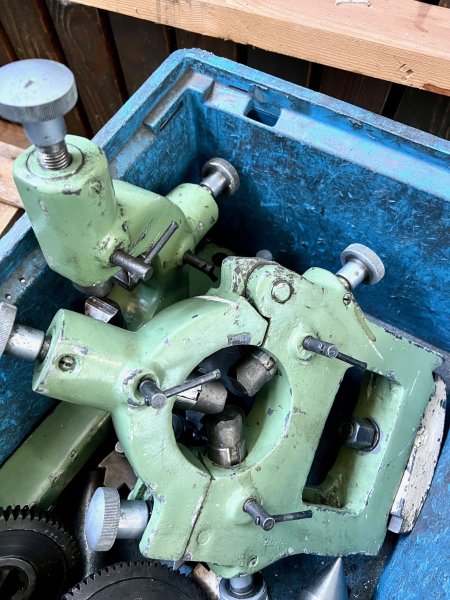

- Fixed steady rest
- Follow-up steady rest
Working
