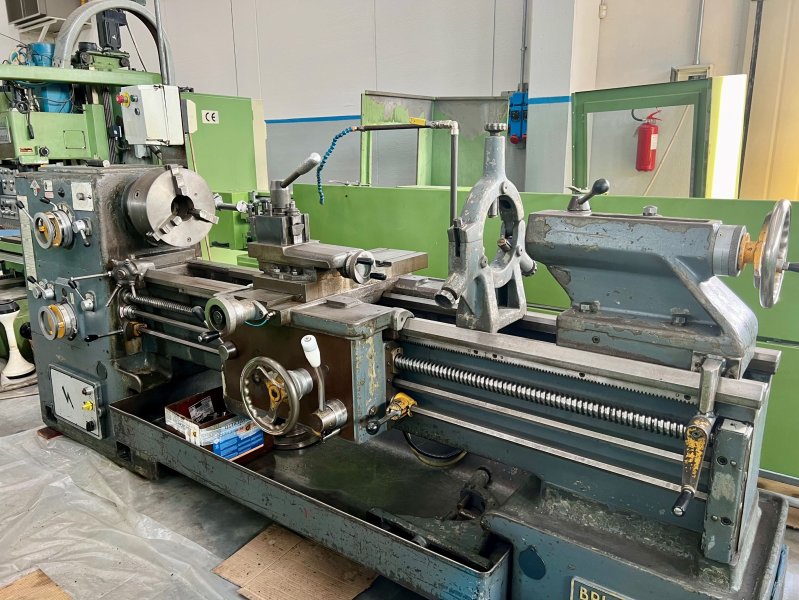

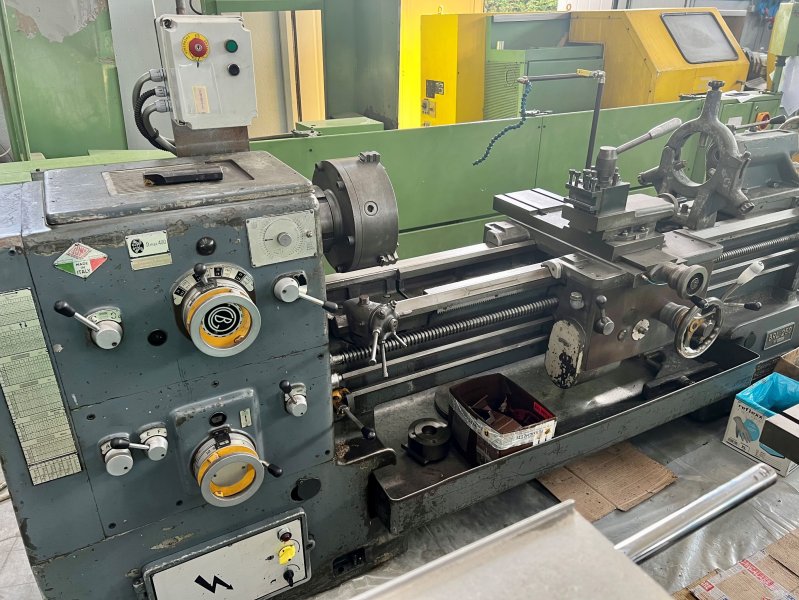

BREDA BRL250
- Condition: used
- published: 03/06/2026
- 26IND49148
Technical data
- Condition: used
- Year: undefined
- Distance between tips : 0/1500 mm
- Tip height : 0/250 mm
Description
Center height above bed: 250 mm
Distance between centers: 1500 mm
Maximum turning diameter above bed: 500 mm
Maximum turning diameter above carriage: 310 mm
Spindle bore: 62 mm
Spindle connection: RIN ...
Center height above bed: 250 mm
Distance between centers: 1500 mm
Maximum turning diameter above bed: 500 mm
Maximum turning diameter above carriage: 310 mm
Spindle bore: 62 mm
Spindle connection: RING
Tailstock taper: 4 cm
Spindle speed: 20-1270 rpm
Overall dimensions: 3100 x 1000 x 1700 mm
Weight: approximately 2400 kg
COMPLETE WITH:
- Self-centering chuck, diam. 315 mm, 3+3 jaws, double guide

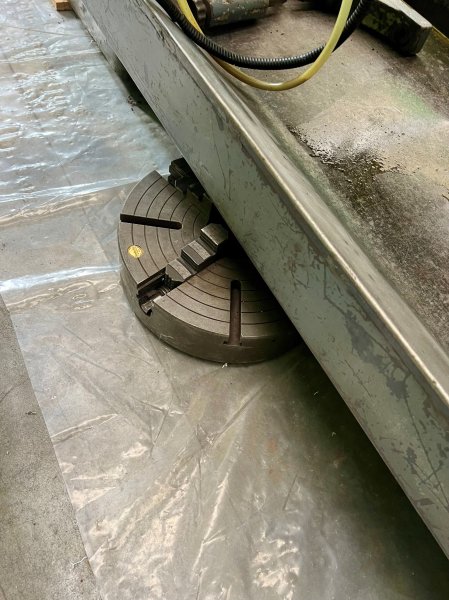

- 4-jaw independent worktable, diam. 400

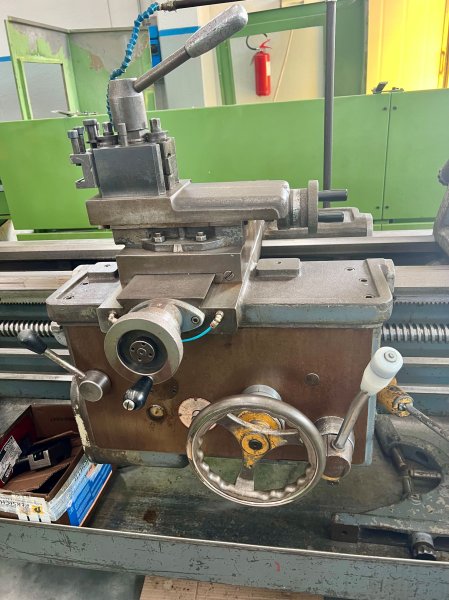

- Universal turret 'GFB' type B with 4 tool holders
- Rapid traverses on the carriage
- Star stop

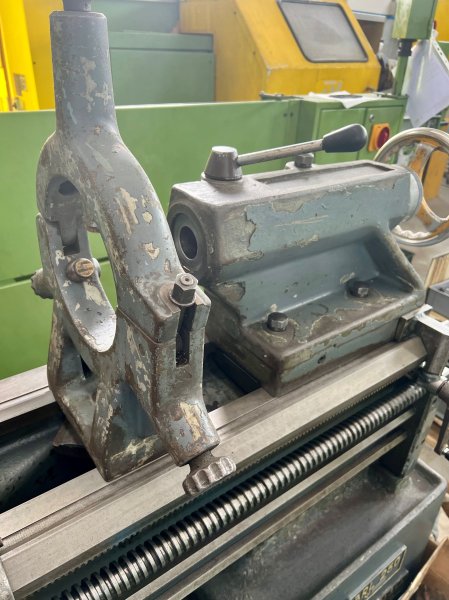

- Fixed steady rest

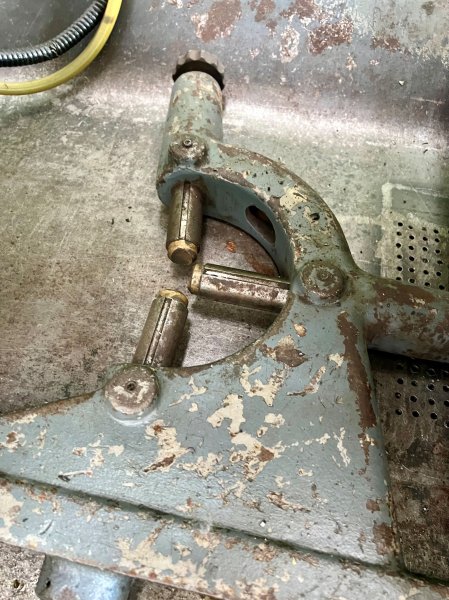

- Follow-up steady rest
