CARIMATI CUT 35/45
- Condition: used
- published: 11/06/2026
- 26IND49219
Technical data
- Condition: used
- Year: undefined
- Drilling capacity : 31/40 mm
- Outreach : 1201/1600 mm
Description

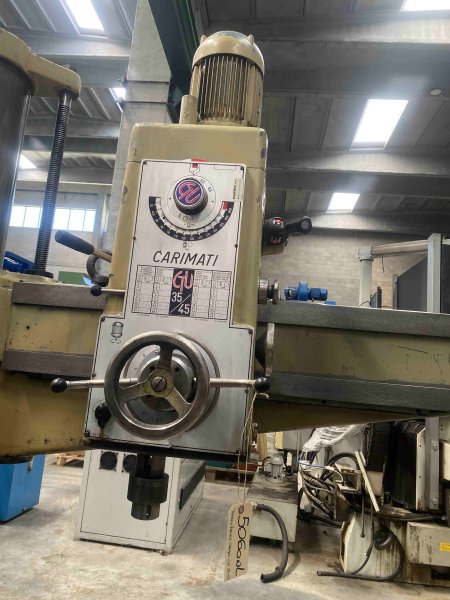

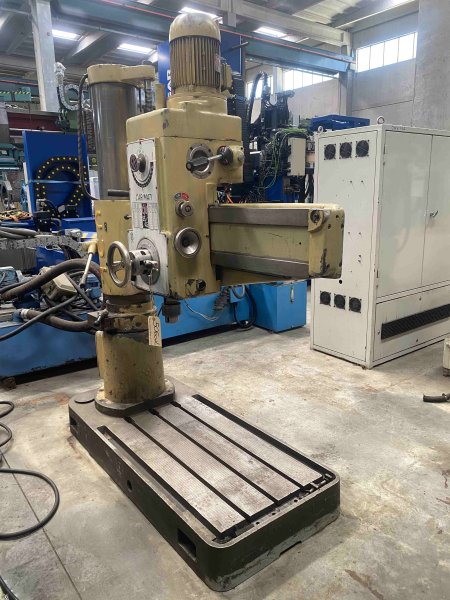

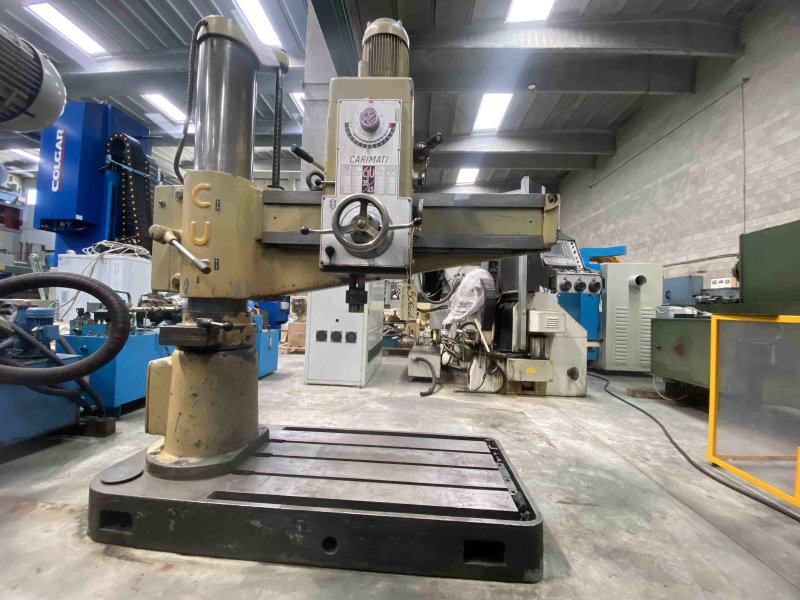

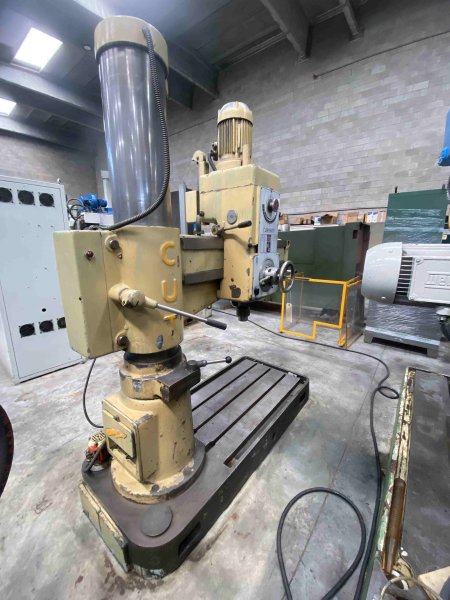

CARIMATI CUT 35/45 x 1250 RADIAL DRILLING MACHINE
Maximum working diameter 35/45 mm.
Maximum distance between spindle center and column 1,250 mm.
Min. drilling radius 330 mm.
Maximum drilling radius 1 ...
CARIMATI CUT 35/45 x 1250 RADIAL DRILLING MACHINE
Maximum working diameter 35/45 mm.
Maximum distance between spindle center and column 1,250 mm.
Min. drilling radius 330 mm.
Maximum drilling radius 1,060 mm.
Min. distance between spindle nose and base 475 mm.
Maximum distance between spindle nose and base 1,355 mm.
Spindle diameter - CM 4; 45 mm.
Spindle stroke 250 mm.

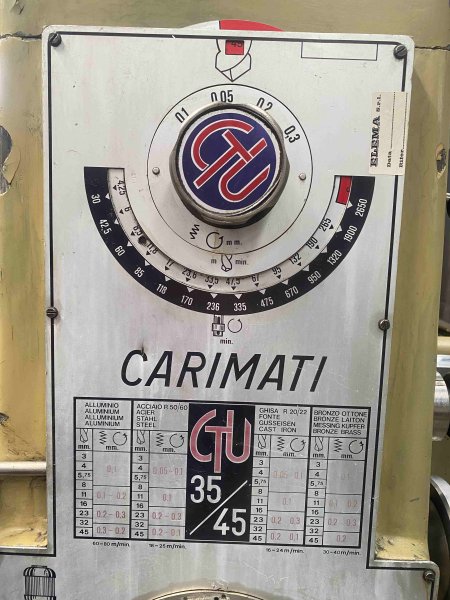

Spindle speed 30 - 2,650 rpm.

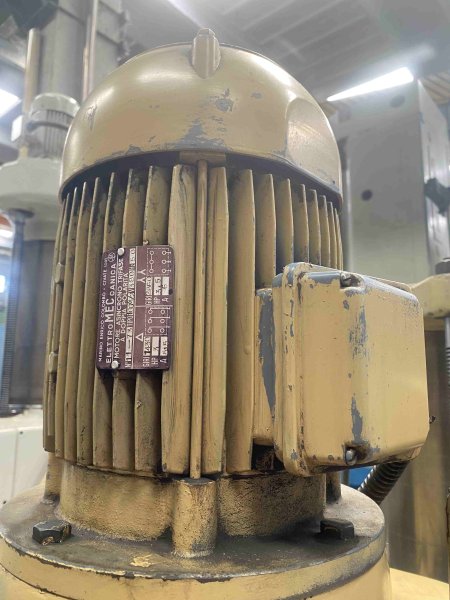

Spindle motor power 3.5 hp.
Column diameter 280 mm.
Total weight 2,500 kg.
