GRAZIOLI DANIA 180
- Condition: used
- published: 12/06/2026
- 26IND49248
Technical data
- Condition: used
- Year: undefined
- Tip height : 0/250 mm
- Distance between tips : 0/1500 mm
Description

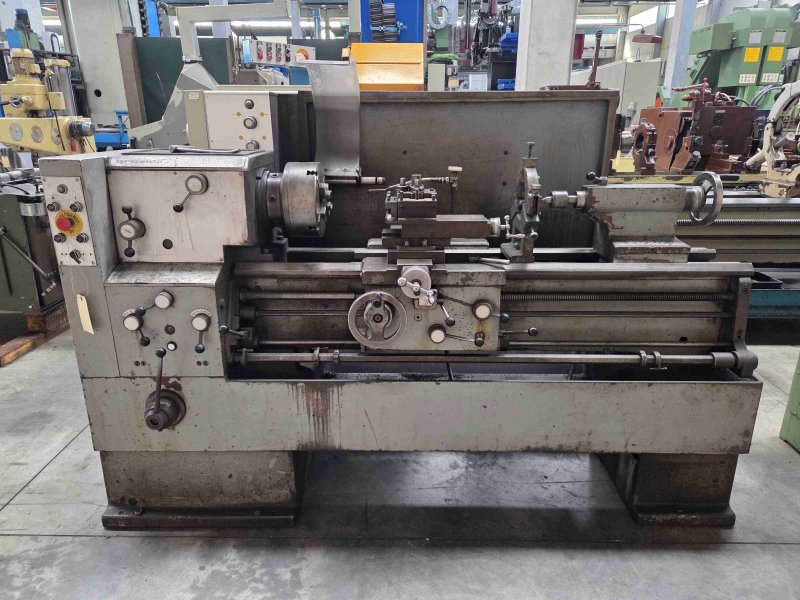

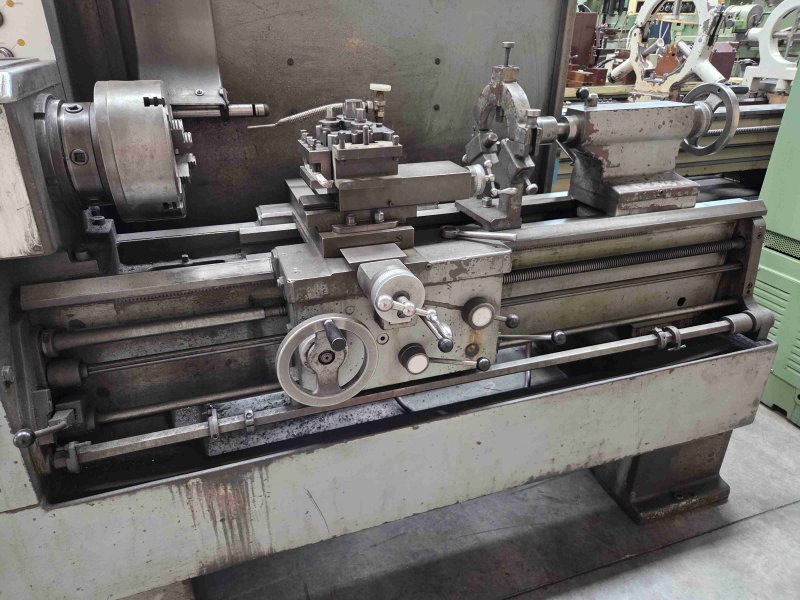

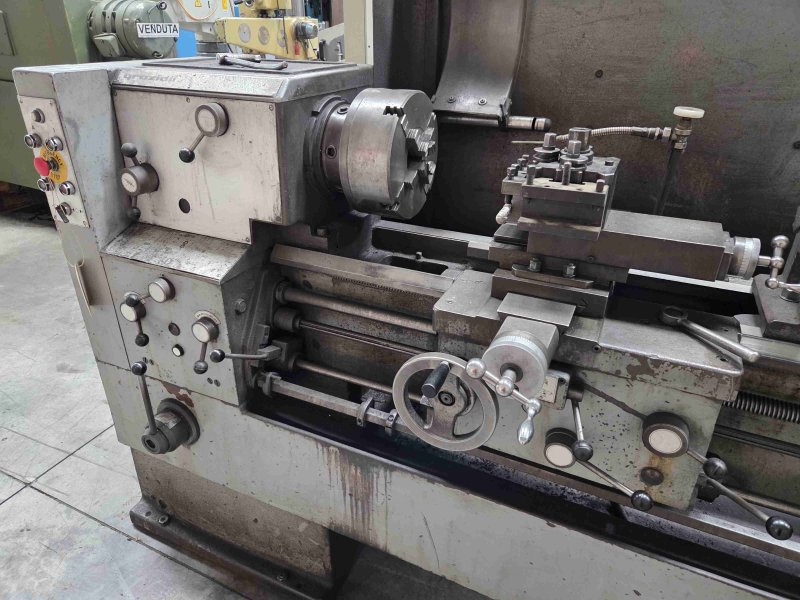

GRAZIOLI DANIA PARALLEL LATHE 180 x 1000 mm
Height of centers 180 mm
Distance between centers 1,000 mm
Max. turning diameter over the bed 360 mm
Max. turning diameter over the carriage 214 mm
Max. tur ...
GRAZIOLI DANIA PARALLEL LATHE 180 x 1000 mm
Height of centers 180 mm
Distance between centers 1,000 mm
Max. turning diameter over the bed 360 mm
Max. turning diameter over the carriage 214 mm
Max. turning diameter in the pocket 550 mm
Pit length 240 mm
Bed width 300 mm
Spindle bore 52 mm
Spindle motor power 5.5 hp
Spindle speed - No. 24; 20 - 2,000 rpm
Tailstock quill diameter 60 mm
Tailstock quill travel 150 mm
Complete with:
- No. 1 self-centering Ø 250 mm.
- n. 1 closed bezel
