PADOVANI LABOR 230 x 1000
- Condition: used
- published: 12/06/2026
- 26IND49249
Technical data
- Condition: used
- Year: undefined
- Distance between tips : 0/1500 mm
- Tip height : 0/250 mm
Description

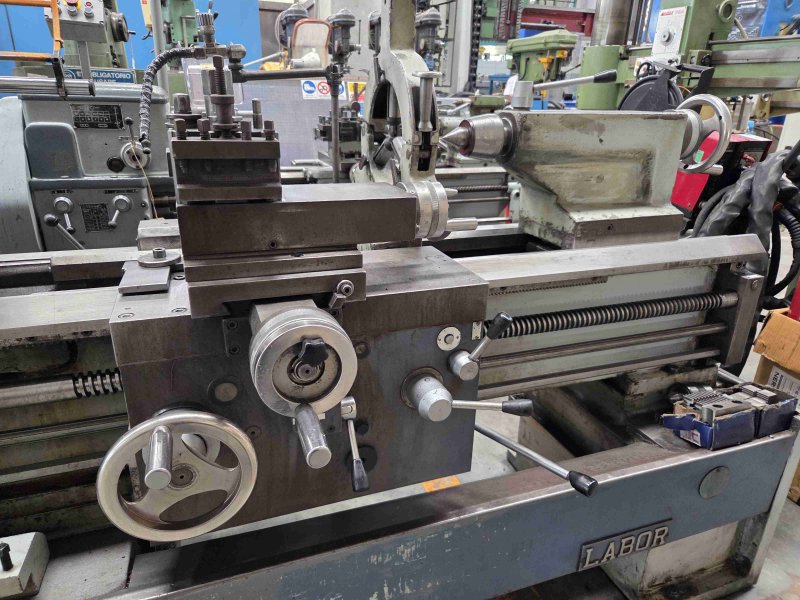

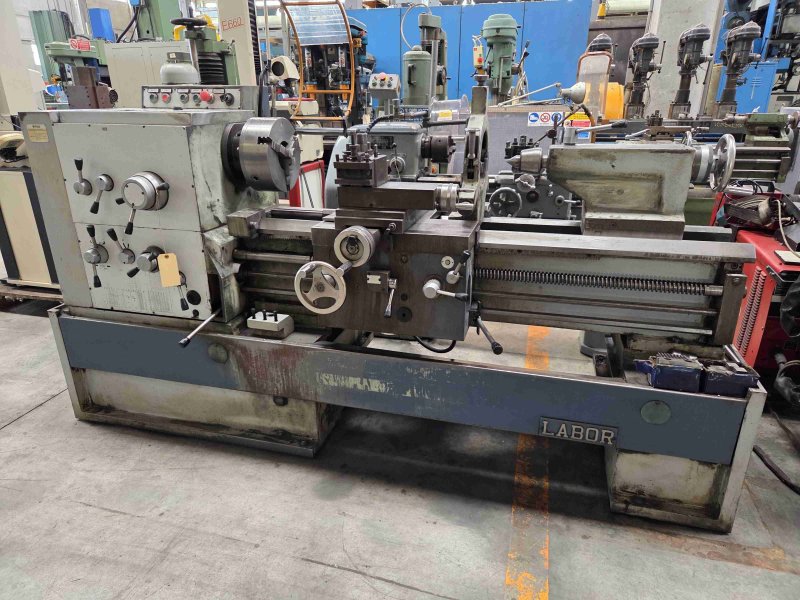

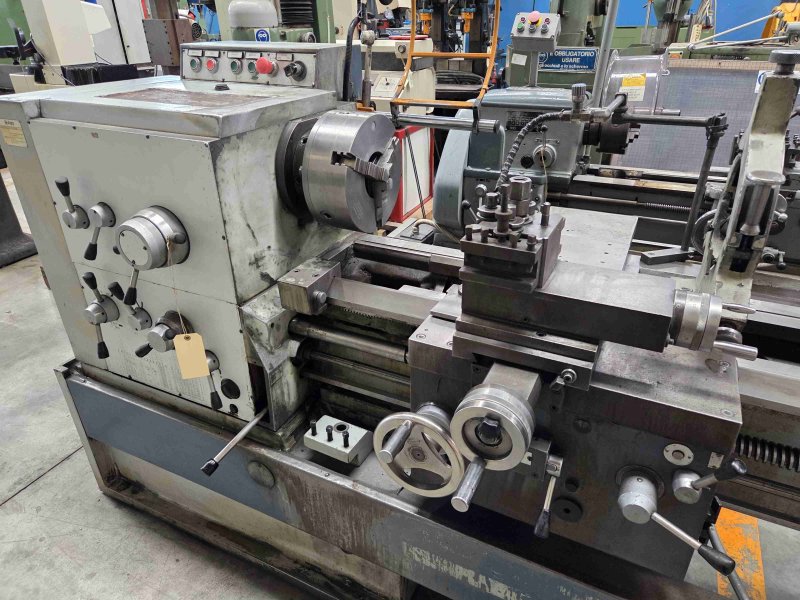

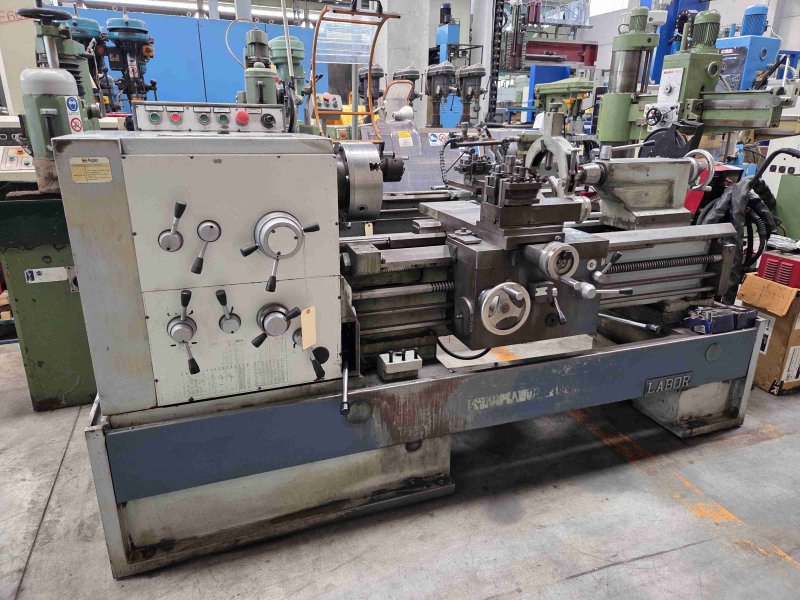

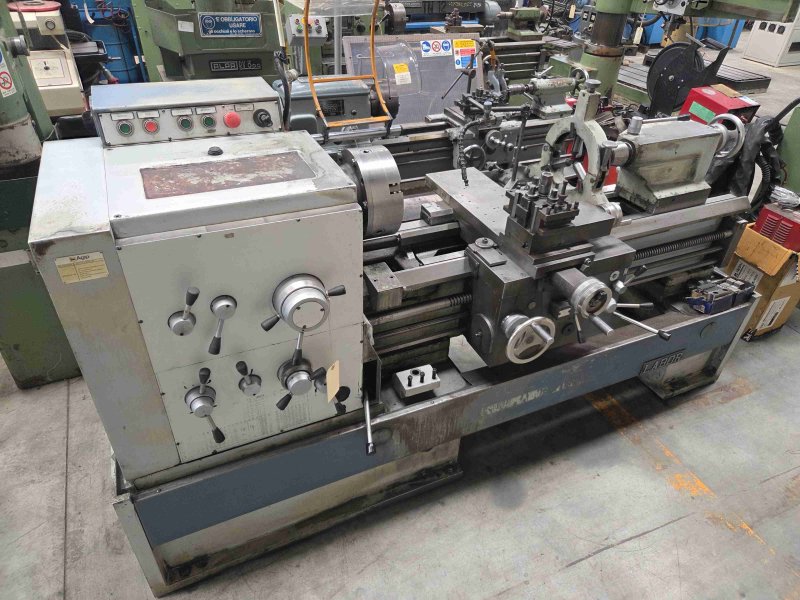

PADOVANI LABOR 230 PARALLEL LATHE
Height of centers 230 mm.
Distance between centers 1,000 mm.
Max. diameter on the bed 465 mm.
Max. diameter on the carriage 278 mm.
Max. diameter in the throat 690 mm ...
PADOVANI LABOR 230 PARALLEL LATHE
Height of centers 230 mm.
Distance between centers 1,000 mm.
Max. diameter on the bed 465 mm.
Max. diameter on the carriage 278 mm.
Max. diameter in the throat 690 mm.
Throat length 300 mm.
Bed width 360 mm.
Spindle bore 77 mm.
Spindle motor power 10 hp.
Spindle rotation speed - No. 16; 15 - 2,000 rpm.
Tailstock quill diameter 75 mm.
Tailstock quill travel 200 mm.
Total weight 2,400 kg.
Complete with:
- No. 1 self-centering Ø 270 mm.
- n. 1 closed bezel
